– 4 –

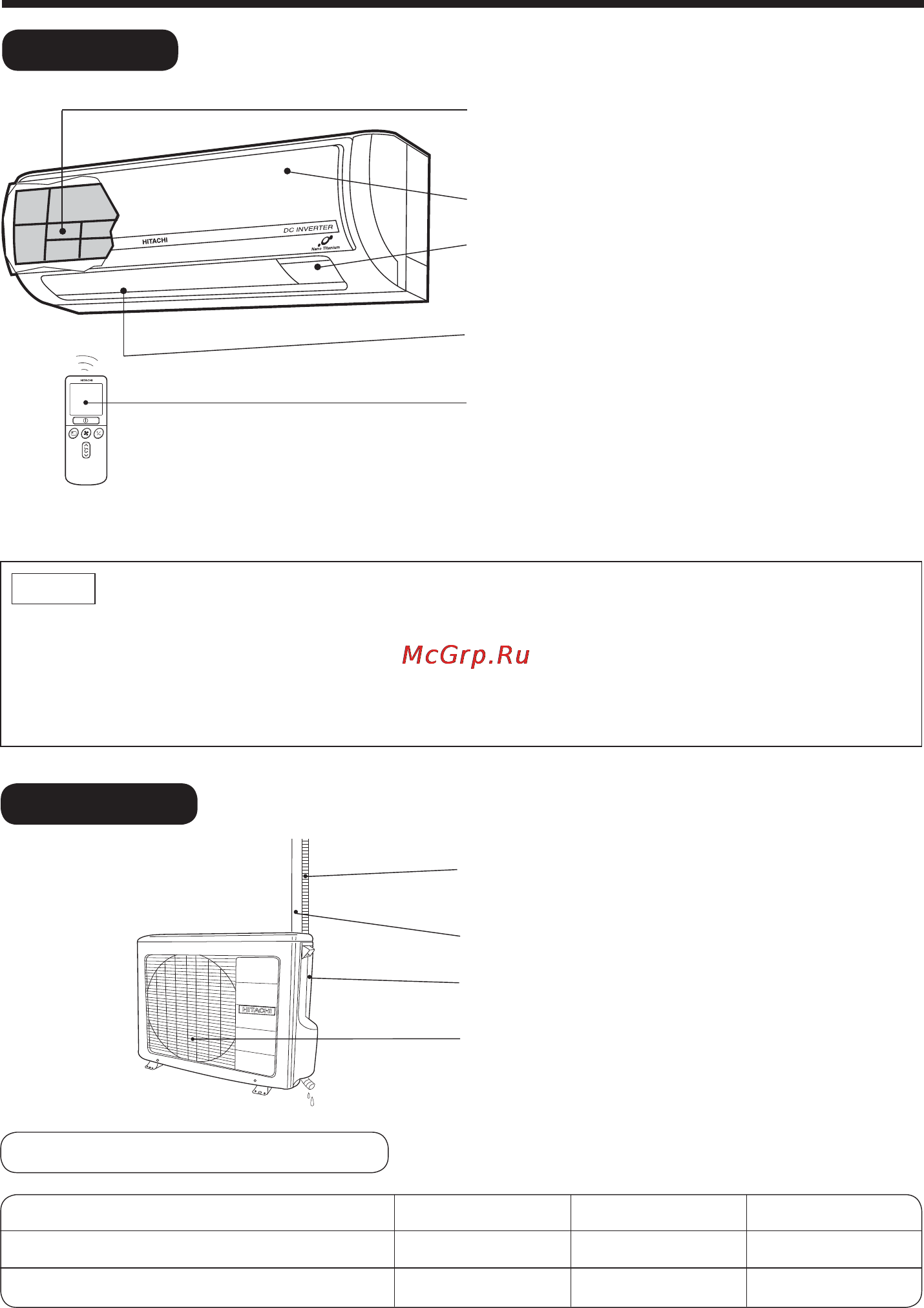

INDOOR UNIT
NAMES AND FUNCTIONS OF EACH PART
Air fi lter
To prevent dust from coming into the indoor unit.
(Refer page 19)
Front panel
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 5)
Horizontal defl ector
Vertical defl ector
(Air Outlet)
Remote controller
Send out operation signal to the indoor unit. So as
to operate the whole unit.
(Refer page 6)
WIDTH (mm)
780
850
MODEL
RAS-18EH2
RAC-18EH2
HEIGHT (mm)
280
650
DEPTH (mm)
215
298
MODEL NAME AND DIMENSIONS
OUTDOOR UNIT
DRAIN PIPE
Condensed water drain to outside.
CONNECTING CORD
AIR INLET (BACK, LEFT SIDE)
AIR OUTLET
Air purifying fi lters are washable and can be use in 1 year time. Type number for this air purifying
lter is <SPX-CFH20>. Please use this number for ordering when you want to renew it.
Air purifying fi lter should be cleaned every month or sooner if noticeable loading occurs. When
used overtime, it may loose its function. For maximum performance, it is recommended to replace
it every 1 year depending on application requirements.
NOTE
