6 Getting to know your monitor

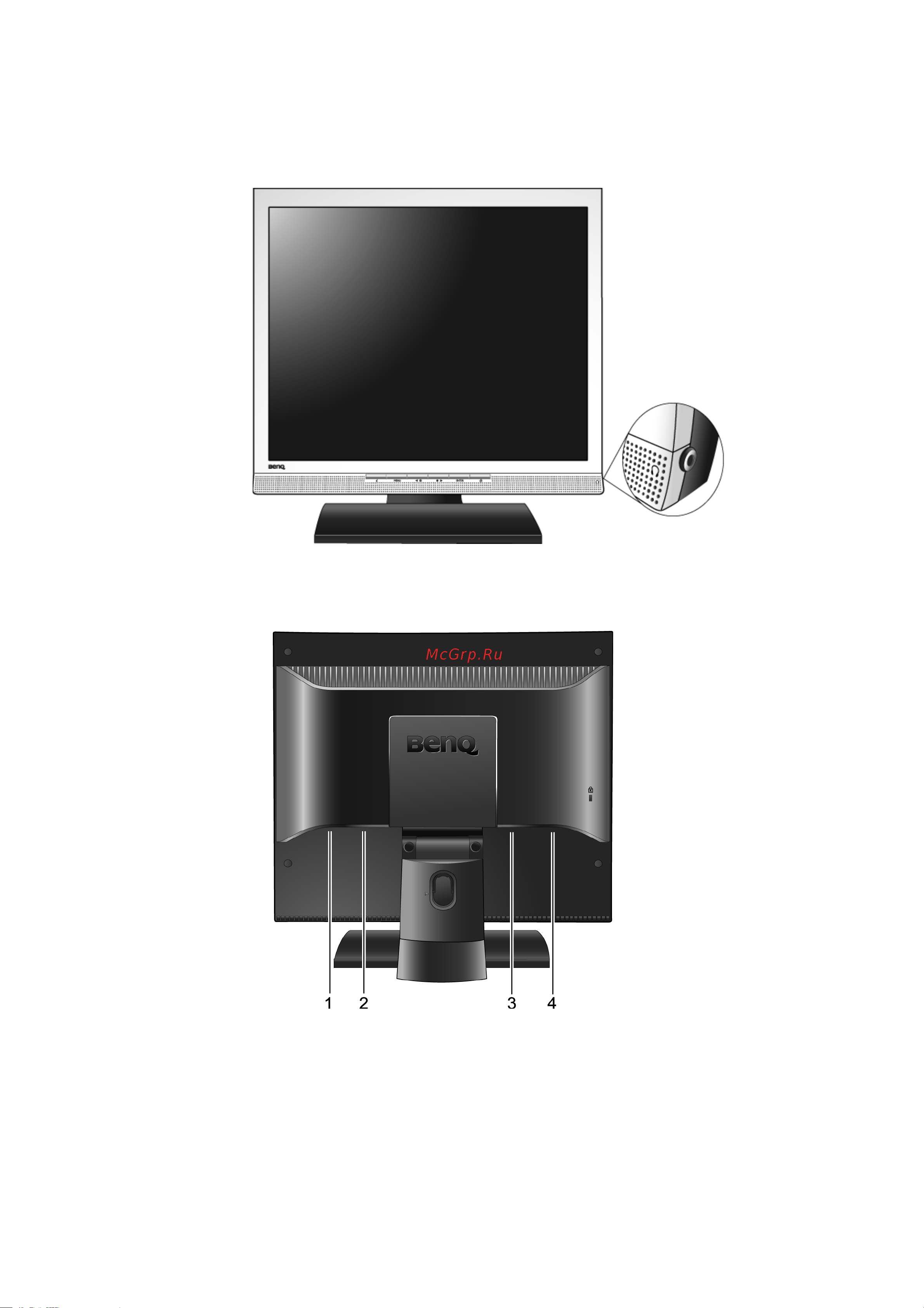

2. Getting to know your monitor
Front view
Back view
1. Audio cable socket
2. AC power input jack
3. DVI-D input socket
4. D-Sub input socket
Earphone socket
