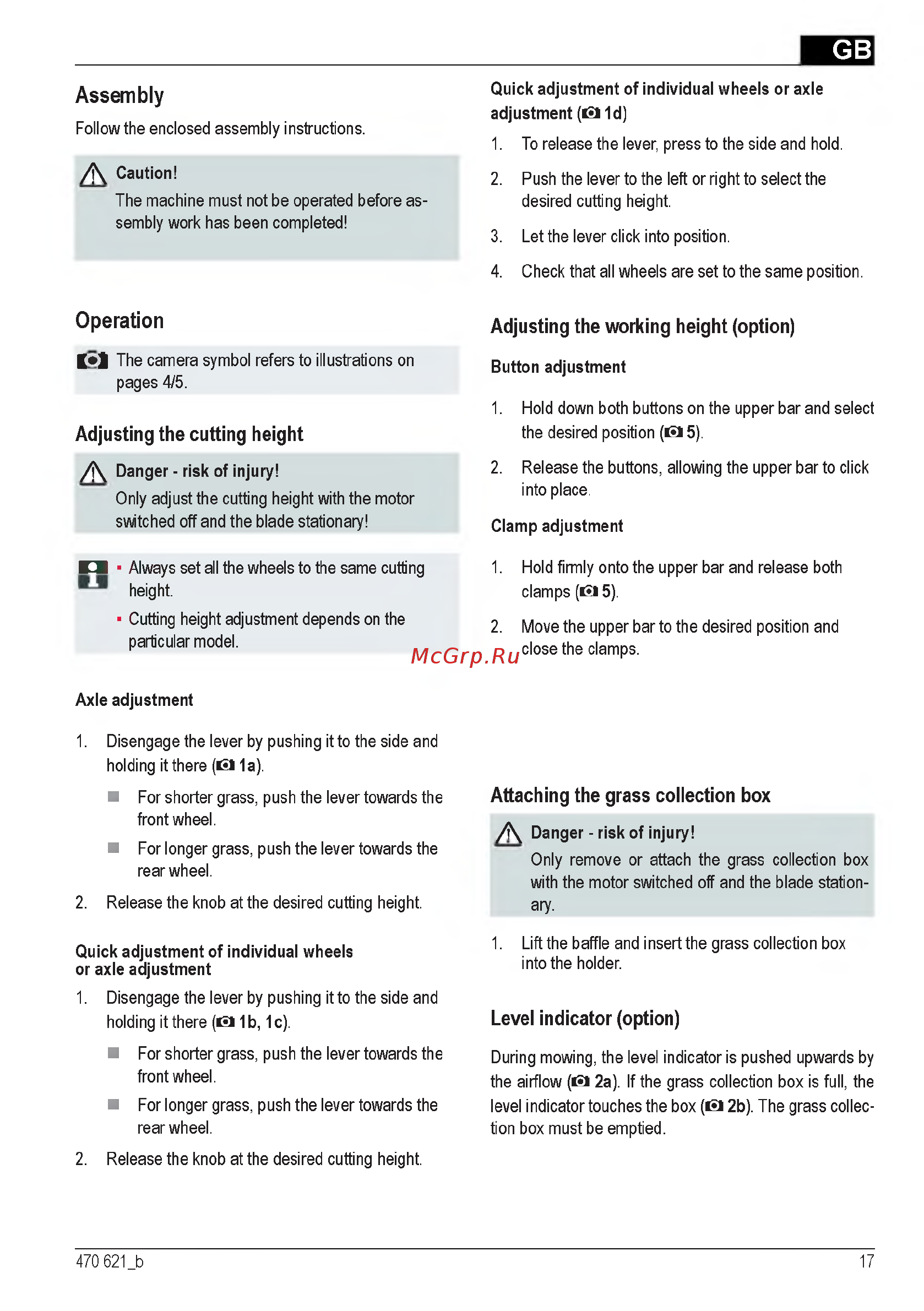

GB
Assembly
Follow the enclosed assembly instructions.
/ \ Caution!
The machine must not be operated before as-
sembly work has been completed!
Operation
K *1 The camera symbol refers to illustrations on
pages 4/5.
Adjusting the cutting height
Axle adjustment
1. Disengage the lever by pushing it to the side and
holding it there (C l 1a).
For shorter grass, push the lever towards the
front wheel.
For longer grass, push the lever towards the
rear wheel.
2. Release the knob at the desired cutting height.
Quick adjustment of individual wheels
or axle adjustment
1. Disengage the lever by pushing it to the side and
holding it there ( a 1b, 1c).
For shorter grass, push the lever towards the
front wheel.
For longer grass, push the lever towards the
rear wheel.
2. Release the knob at the desired cutting height.
Quick adjustment of individual wheels or axle
adjustment (O 1d)
1. To release the lever, press to the side and hold.
2. Push the lever to the left or right to select the
desired cutting height.
3. Let the lever click into position.
4. Check that all wheels are set to the same position.
Adjusting the working height (option)
Button adjustment
1. Hold down both buttons on the upper bar and select
the desired position (C l 5).
2. Release the buttons, allowing the upper bar to click
into place.
Clamp adjustment
1. Hold firmly onto the upper bar and release both
clamps (C l 5).
2. Move the upper bar to the desired position and
close the clamps.
Attaching the grass collection box
/? \ Danger - risk of injury!
Only remove or attach the grass collection box
with the motor switched off and the blade station-
ary.
1. Lift the baffle and insert the grass collection box
into the holder.
Level indicator (option)
During mowing, the level indicator is pushed upwards by
the airflow (O 2a). If the grass collection box is full, the
level indicator touches the box (C l 2b). The grass collec-
tion box must be emptied.
/ \ Danger - risk of injury!
Only adjust the cutting height with the motor
switched off and the blade stationary!
E B Always set all the wheels to the same cutting
height.
Cutting height adjustment depends on the
particular model.
470 621_b 17
