Warning Lights, Gauges, and

Indicators

Fuel Gauge . . . . . . . . . . . . . . . . . . . 5-1

Malfunction Indicator Lamp . . . 5-2

Warning Lights,

Gauges, and

Indicators

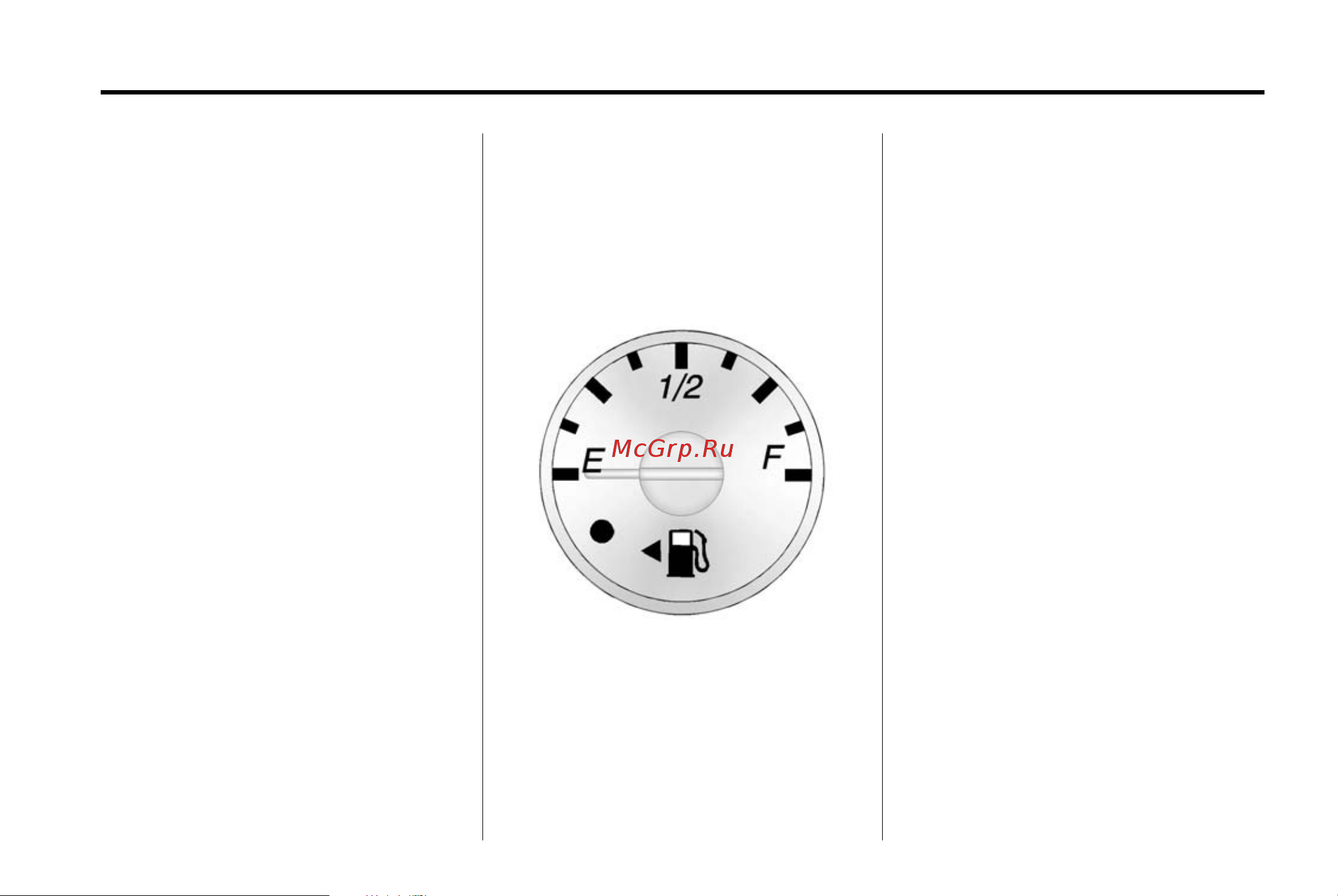

Fuel Gauge

When the ignition is on, the fuel

gauge indicates about how much

fuel is left in the vehicle fuel tank.

An arrow on the fuel gauge

indicates the side of the vehicle the

fuel door is on.

The fuel gauge has been calibrated

to display full at approximately

24 800 kPa (3,600 psi) and empty at

approximately 2 758 kPa (400 psi).

When the low fuel warning indicator

flashes, fill the tank as soon as

possible.

Compressed Natural Gas (CNG)

fuel gauge readings are affected by

changes in fuel temperature and

fuel pressure.

See Filling the Tank on page 9-3.
