CONNECTING THE PHONE:
OVERVIEW:
PHONE SETUP:
GXV3275 represents the future in personal IP multimedia communication, featur-
ing Android™ Operating System 4.2 and its vast number of 3rd party applica-
tions, a large 7” (1024×600) capacitive touch screen, a tiltable mega-pixel CMOS
sensor, dual Gigabit network ports, integrated Wi-Fi, PoE and Bluetooth. The
GXV3275 delivers superior HD audio and video, leading edge telephony features
and integration of rich Web content with access to the rapidly growing Android™
applications base and automated provisioning. GXV3275 redenes the desktop
communication experience with a raised level of innovation and integration of
state-of-art real time video conferencing, personalized rich media presentation &
delivery, popular Web and social networking applications and advanced business
productivity tools.

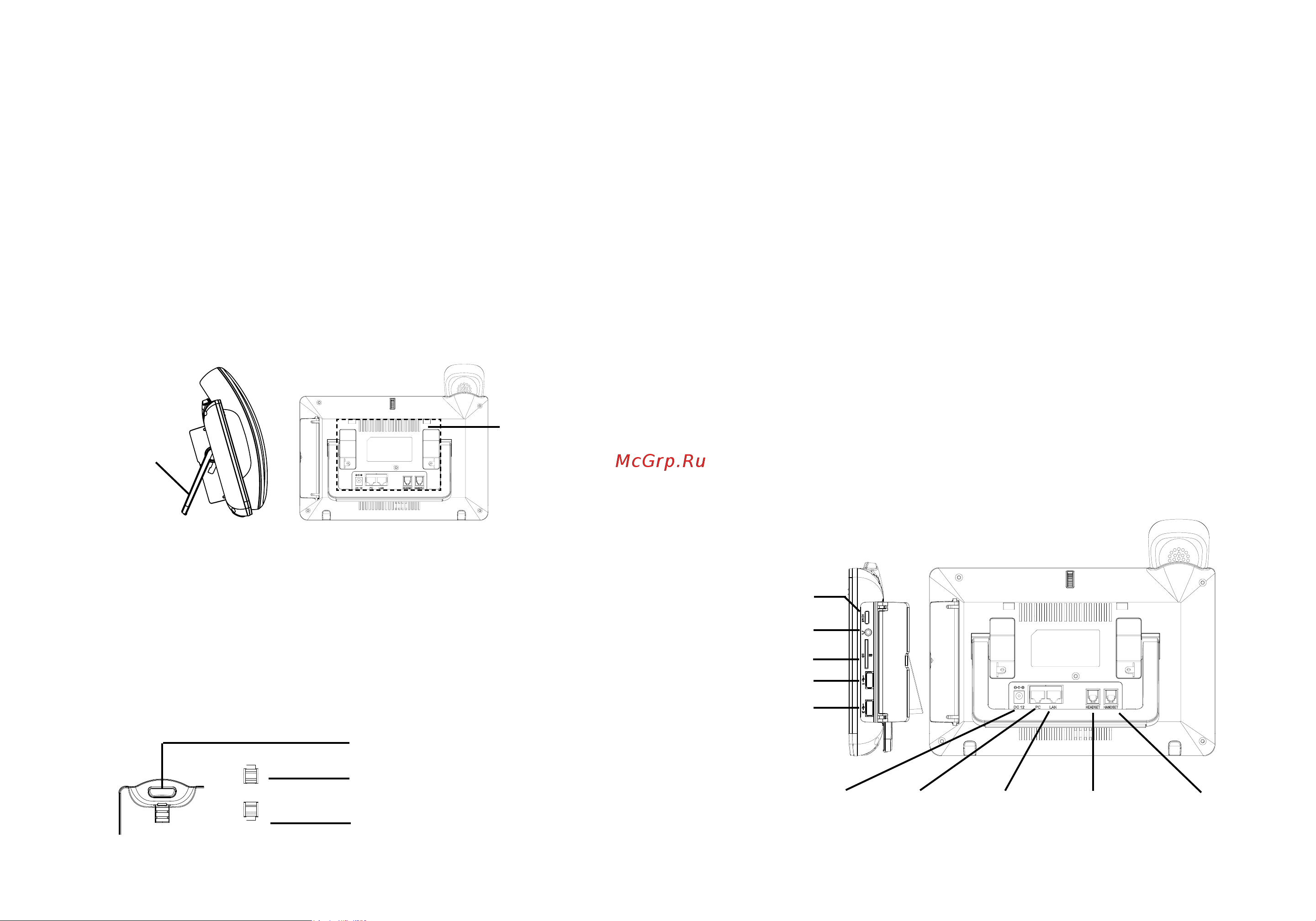

1. Attach the wall mount to the slots on the back of the phone;
2. Attach the phone to the wall via the wall mount hole;
3. Pull out the tab from the handset cradle (see gure below);
4. Rotate the tab and plug it back into the slot with the extension up to hold the
handset while the phone is mounted on the wall.
Installing The Phone (Wall Mount):
1. Connect the handset and main phone case with the phone cord;
2. Connect the LAN port of the phone to the RJ-45 socket of a hub/switch or a rou-
ter (LAN side of the router) using the Ethernet cable;
3. Connect the 12V DC output plug to the power jack on the phone; plug the power
adapter into an electrical outlet. If PoE switch is used in step 2, this step could
be skipped;
4. The LCD will display booting up or rmware upgrading information. Before con-
tinuing, please wait for the main screen display to show up;
5. Using the web conguration interface or from the menu of the touch screen, you
can further congure network connection using static IP, DHCP and etc.
3.5mm
Headset Port
LAN Port
Handset Port
Power
RJ9 Headset Port
HDMI Port
Slots for
wall mount
The GXV3275 has a built-in phone stand. To use it, pull out the phone stand
handle on the back of the phone. Adjust the angle as preferred and make sure the
phone stands still on the desktop.
Using The Phone Stand:
PC Port
Built-in phone
stand for desktop
Tab with extension up
Handset Rest
Tab with extension down
SD Card Slot
USB Port 1
USB Port 2
