Grandstream GXV-3240 [6/34] Connecting gxv3240 extension modul

7 8

The GXV3240 uses GXP2200EXT as the extension module. The extension mod-

ule is an ideal solution for the busy enterprise environment looking to add the

ability to receive and dispatch calls efciently. Each GXP2200EXT extension mod-

ule has 20 programmable buttons, Left and Right buttons, supporting 40 Multiple

Purpose Keys to be congured. GXV3240 supports up to 4 extension modules,

adding 160 fully programmable phone extensions to the phone.

Note: The GXP2200EXT is an additional accessory for the GXV3240. Therefore,

the GXP2200EXT (including extension module accessories for installation) is not

included in the GXV3240 box. For detailed information about the GXP2200EXT,

please refer to the link below:

http://www.grandstream.com/support

Note: For the detailed user manual, please download from:

http://www.grandstream.com/support

Conguring GXV3240 Extension Module:

1. Login the GXV3240 web GUI and congure multiple purpose keys for extension

board 1/2/3/4 under web GUI->Advanced Settings->MPK EXT Settings page;

2. On the GXV3240 extension board (i.e., GXP2200EXT), press LEFT or RIGHT

button to browse all the MPKs’ status in different pages;

3. For more conguration information, please refer to the GXV3240 user manual

and the GXP2200EXT user manual.

3. Connect the GXP2200EXT to the GXV3240 via the EXT port using the RJ11-

RJ11 cable provided with the GXP2200EXT;

4. Install the phone stands on the GXV3240 and the GXP2200EXT;

5. Power up the GXV3240. The GXP2200EXT will show the booting up screen

with version information and connecting status;

6. After successfully booting up, the extension board will stay in idle. Press and

hold the LEFT button for 3 seconds to check the version information and status.

Installing GXP2200EXT to the GXV3240:

1. On the back of the GXV3240 and the GXP2200EXT, there are slots for connec-

tor plate. Attach the connector plate between the slots for the GXV3240 and the

GXP2200EXT;

2. Apply the screws provided and securely tighten them in (see gure in the next

page);

CONNECTING GXV3240 EXTENSION MODULE:

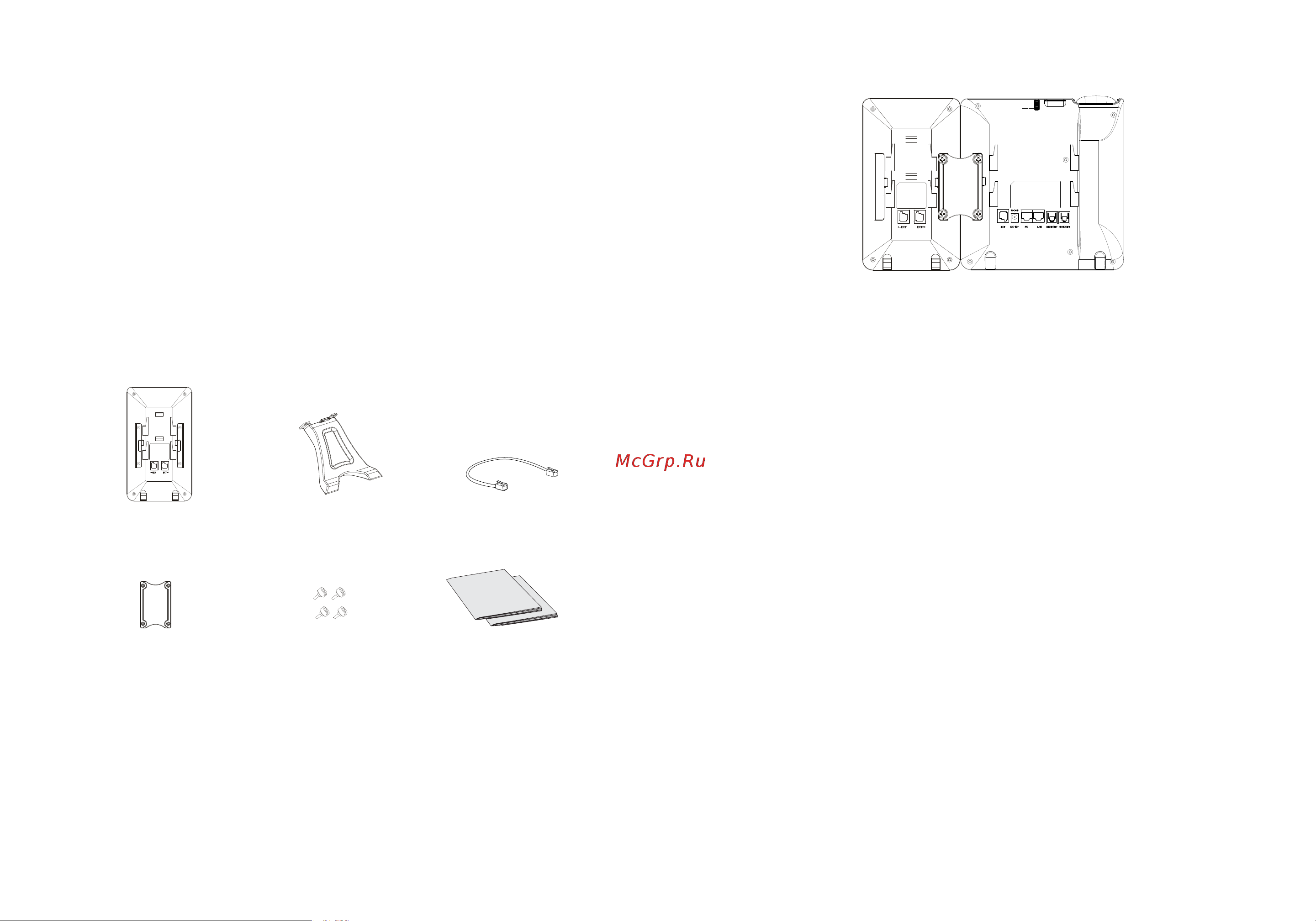

GXP2200EXT Package Content:

1 X GXP2200EXT Board 1 X GXP2200EXT Stand 1 X RJ11-RJ11 Cable

1 X Connector Plate 4 X Screws

1 X Quick Installation Guide /

1 X GPL License

This product is covered by one or more of the U.S. patents

(and any foreign patent counterparts thereto) identied at

www.cmspatents.com.
