Grandstream GXP-1628 [4/29] Connecting the phone

CONNECTING THE PHONE:

Installing BLF Paper Label:

1. Install the paper label by aligning the cutouts on paper

label with the plastic notches on the phone and gently lay

the paper down on the phone surface.

2. Install the plastic cover over the paper label by inserting

the non-cutout side of the plastic cover under the notches

on the left side of the panel, adjust the plastic cover in up/

down direction to make 3 cutouts on the right side align with

the plastic notches.

3. Slightly pull the plastic cover upward to complete the in-

stallation.

Label

Cover

Non-Cutout side

Installing the Phone (Phone Stand):

1. Insert the hooks on top of the stand into a slots, you have

options to use either upper OR lower slots.

2. Firmly slide the stand upward to lock it in place.

Installing the Phone (Wall Mount):

UPPER

LOWER

1. Insert all 4 hooks located in the front of wall mount into

the slots.

2. Firmly slide the wall mount upward to lock it in place.

3. Pull out and rotate the tab from handset rest to hold the

handset while the phone is mounted on the wall.

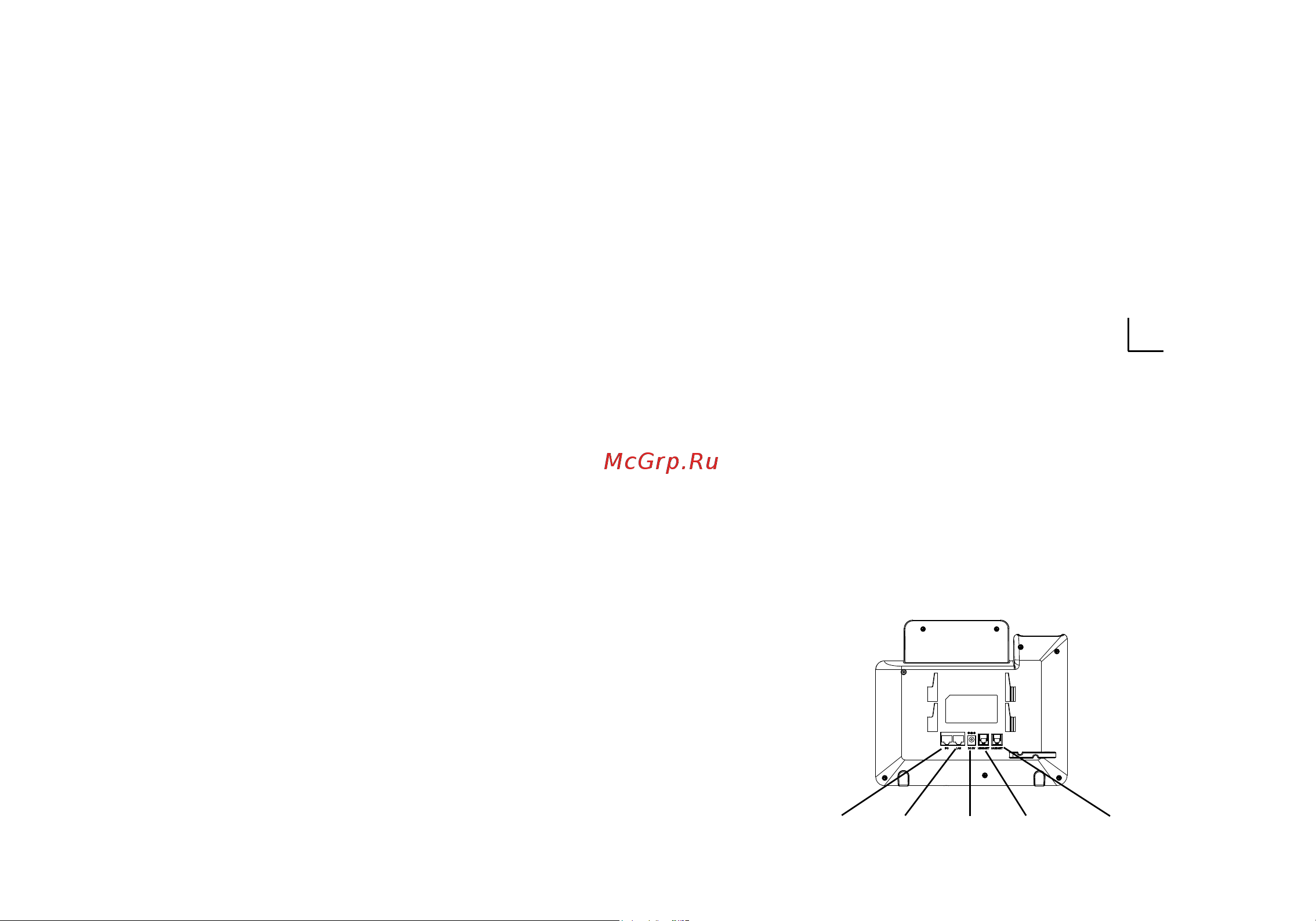

LAN Port

Power

Handset Port

PC Port

Headset Port
