5
ENGLISH
■ Using a Channel Divider and Subwoofers

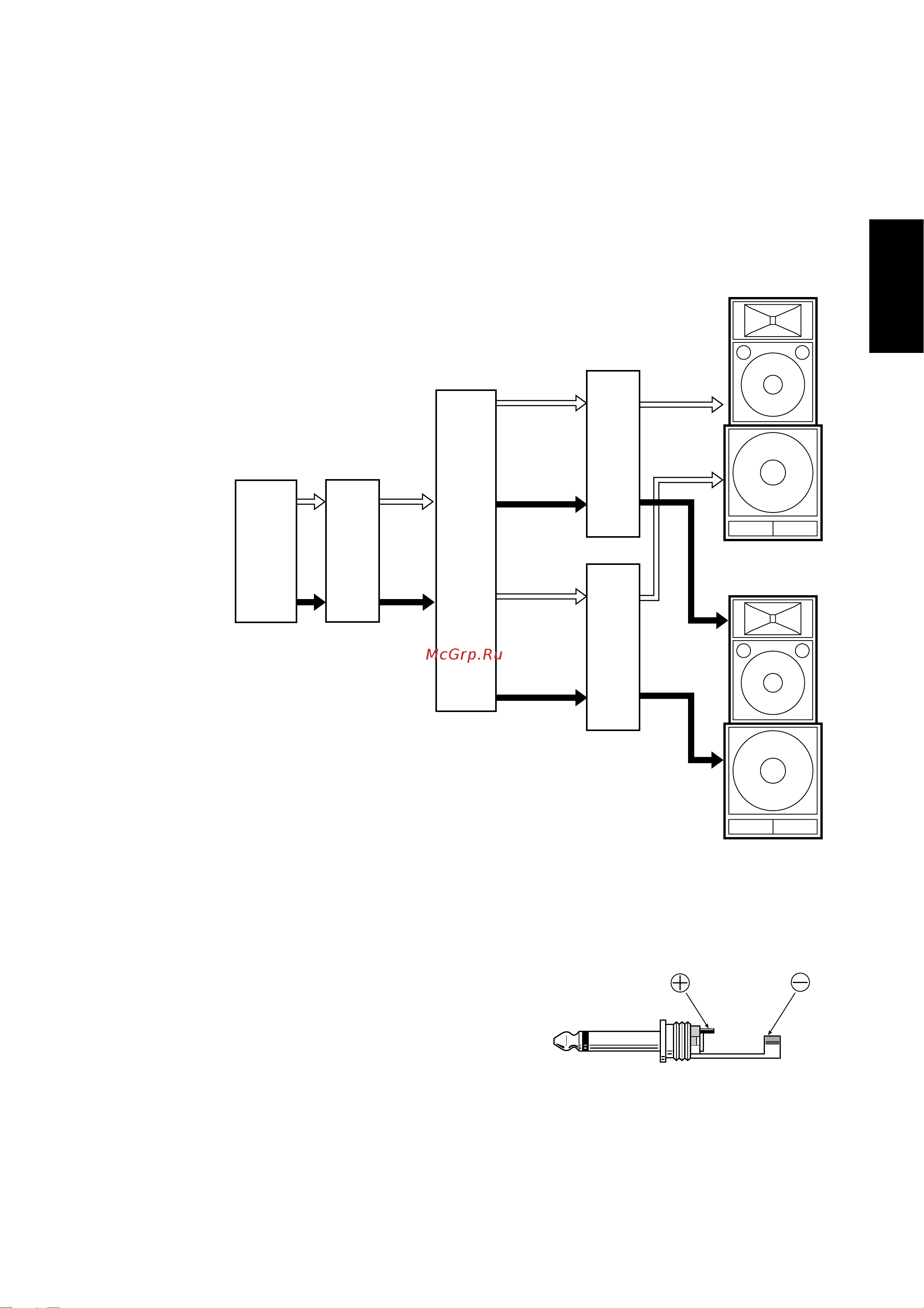

Using a channel divider in a multi-way system like the one shown in the diagram can
provide superior dynamic range and overall sound quality. The channel divider divides
the line-level audio from the preamplifier or mixing console into separate frequency
bands that are then sent to separate power amplifiers. The power amplifiers drive
speaker systems selected for optimum performance in the corresponding frequency
ranges.
■ Phone Plug Wiring
Phone plugs for connection to the phone
jack inputs should be wired as shown to
the right. Be sure to use proper speaker
cable – NOT shielded instrument or line
cable – for all speaker connections.
MIXING
CONSOLE
TWO-CHANNEL
GRAPHIC
EQUALIZER
LEFT
INPUTS
RIGHT
CHANNEL
DIVIDER
LEFT
HIGH
RIGHT
INPUT
TO POWER
AMP INPUTS
LEFT
RIGHT
LOW INPUT
TWO-CHANNEL
POWER AMPLIFIER
TWO-CHANNEL
POWER AMPLIFIER
OUTPUT
OUTPUT
SPEAKER SYSTEMS
SPEAKER SYSTEMS
R118W/R118WC
R118W/R118WC
L
R
L
R
L
R
L
R
L
R
L
R
