Roland GO Mixer Pro [4/24] 4 pin assignment of mic connector xlr trs

(*2) If connecting an Android smartphone to this unit,

connect the tagged plug to this unit.

Type-C Lightning micro B

(OTG)

micro B

B type A type

mini B

Type-C Lightning micro B

(OTG)

micro B

B type A type

mini B

(*3) You must connect your guitar, bass, or mic to this jack.

If a mic and/or guitar are not connected, turn the

[GUITAR/BASS] knob and/or [MIC] knob all the way to

the left (the minimum setting). If the knob is not at the

minimum setting, noise might enter the signal.

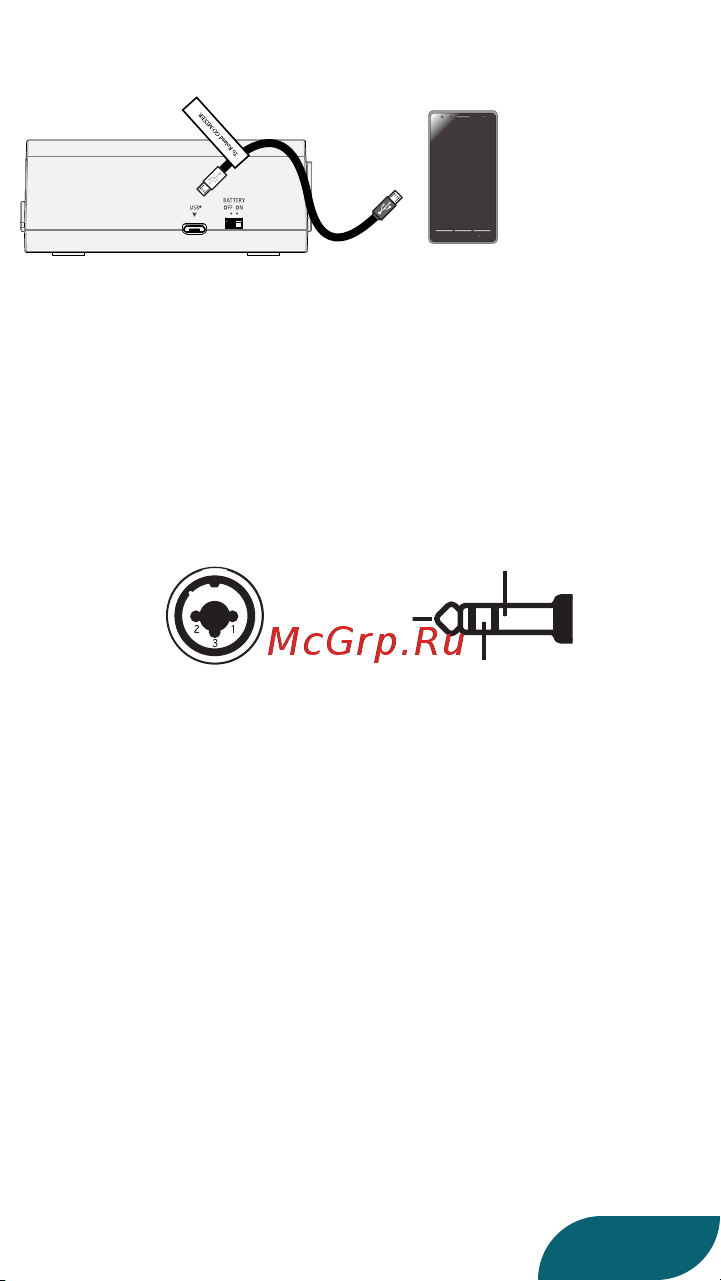

(*4) Pin assignment of MIC connector (XLR, TRS).

1: GND

2: HOT

3: COLD

Tip: HOT

Ring: COLD

Sleeve: GND

(*5) If you’re using a condenser mic that requires an external

power supply, set the [PHANTOM POWER] switch to

“48V.”

(*6) If you need to supply phantom power when using an

iPhone or iPad, install batteries in this unit. (If batteries

are not installed, phantom power cannot be supplied

even if the [PHANTOM POWER] switch is set to “48V.” In

this case, the POWER indicator blinks.)

If you’re using an Android smartphone, phantom power

can be supplied both when you’re using batteries and

when power is supplied from the smartphone.
