B) MOUNTING WITH A SWIVEL BRACKET

Necessary optional accessory: AC WM-M

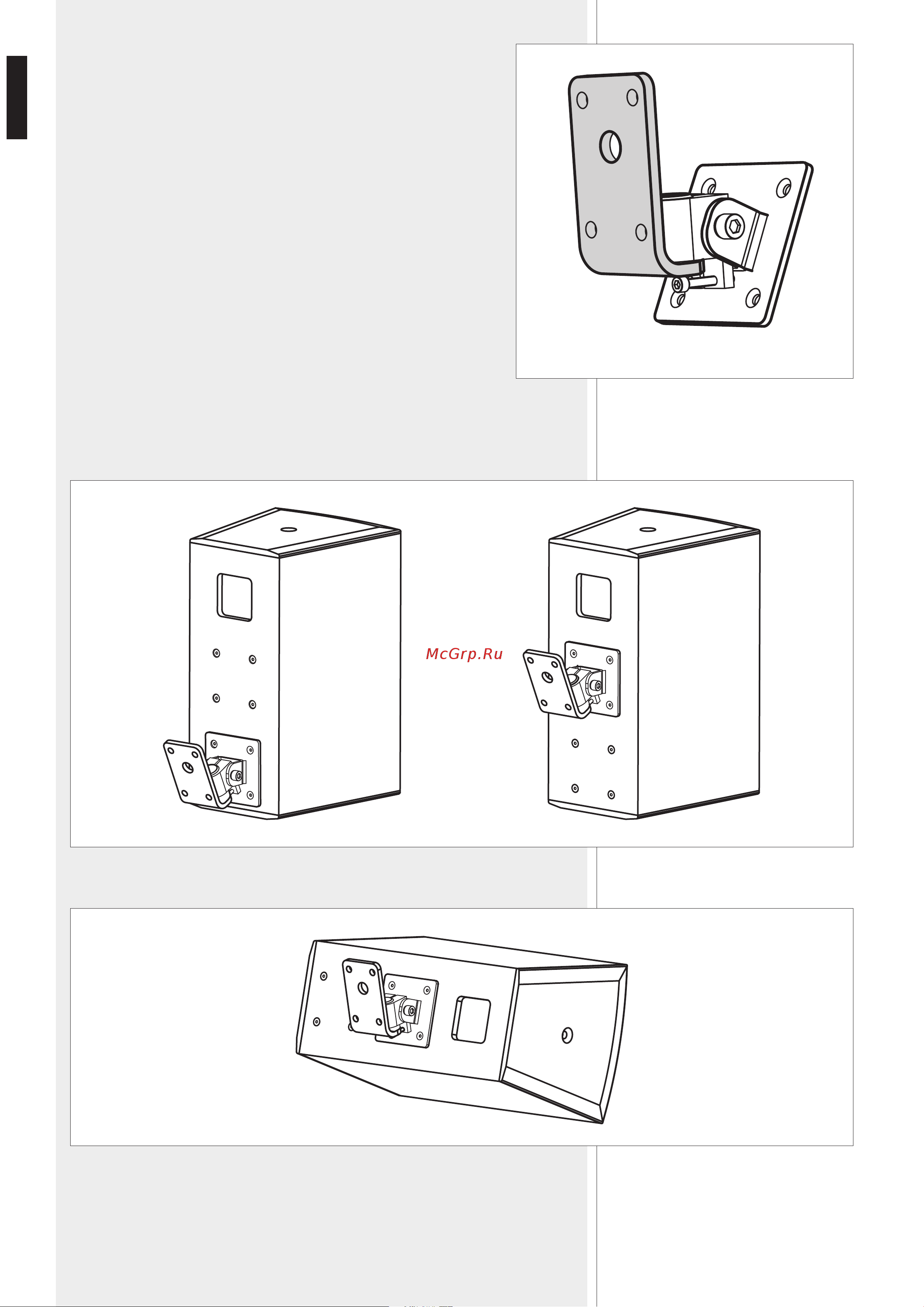

Mount the ﬁxed part of the AC WM-M accessory (shown in grey in the

respective ﬁgure) to the wall through its corners with four M10 wall plugs.

The central hole of the ﬁxed part is useful to let pass the connecting cable

from the wall outlet.

It is possible to ﬁx the moving part of the AC WM-M accessory directly to the loudspeaker

rear panel (in one of the possible positions), through four M6 ﬂat head screws (as shown

in the ﬁgure below).

It is also possible the loudspeaker horizontal mounting (see the ﬁgure below).

Then, put the loudspeaker on the ﬁxed part of the AC WM-M accessory (that is wall-

mounted) and tighten the bolt. The screw below allows vertical tilt adjustments.

AC WM-M
