INSTALLATION

Loudspeakers are to be install by qualied personnel, respecting all safety standards.

Loudspeakers are to be installed securely.

Make sure the support structure (walls / ceilings) has the necessary mechanical

characteristics for the loudspeaker weight, without the risk of a fall that could damage

things or cause an injury.

Use attachments elements suitable for walls / ceilings (e.g. wall plugs for bricks, for

concrete, etc.).

a) HORIZONTAL MOUNTING WITH U BRACKET

Necessary optional accessory:

- AC M1001 H-BR (for the M 1001 model)

- AC M1201 H-BR (for the M 1201 model).

Fix the U bracket to the wall / ceiling through at least 4 lateral wall plugs (max. M8) plus

a central one (max. M10).

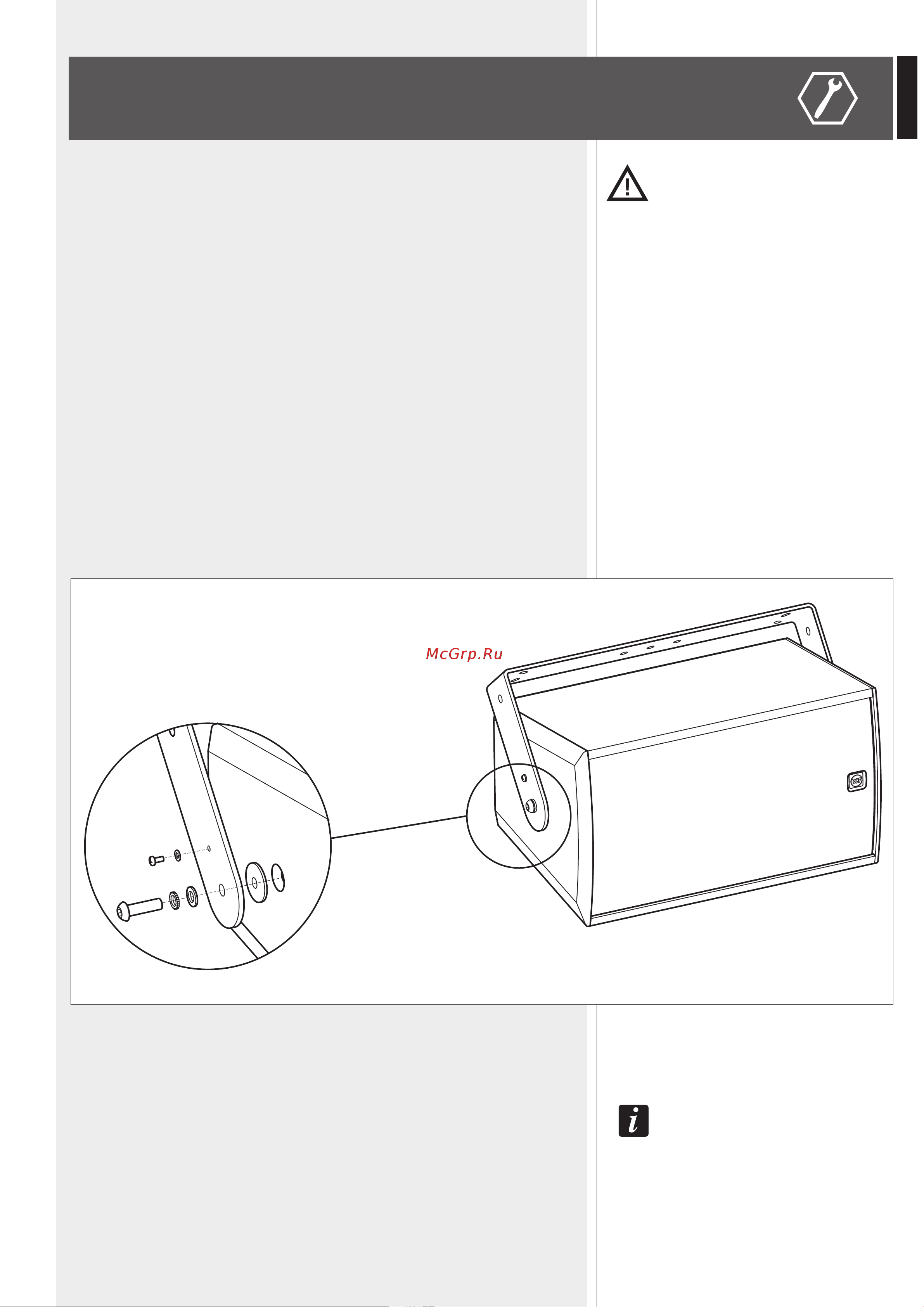

Mount the U bracket to the loudspeaker by tightening the two M10x35 bolts into the holes

of the loudspeaker top and bottom, as shown in the gure below.

Before tightening the two M10 bolts, adjust the loudspeaker vertical tilt and then x it

through two M4.2x22 self-threading screws (passing through the small hole of the U

bracket) directly into the loudspeaker cabinet wood.

Note: do Not tilt the loudspeaker upwards!

iNstead of simple m10 bolts, it is possible to use the iNcluded kNobs (haviNg m10 bolts).
