12
ENGLISH

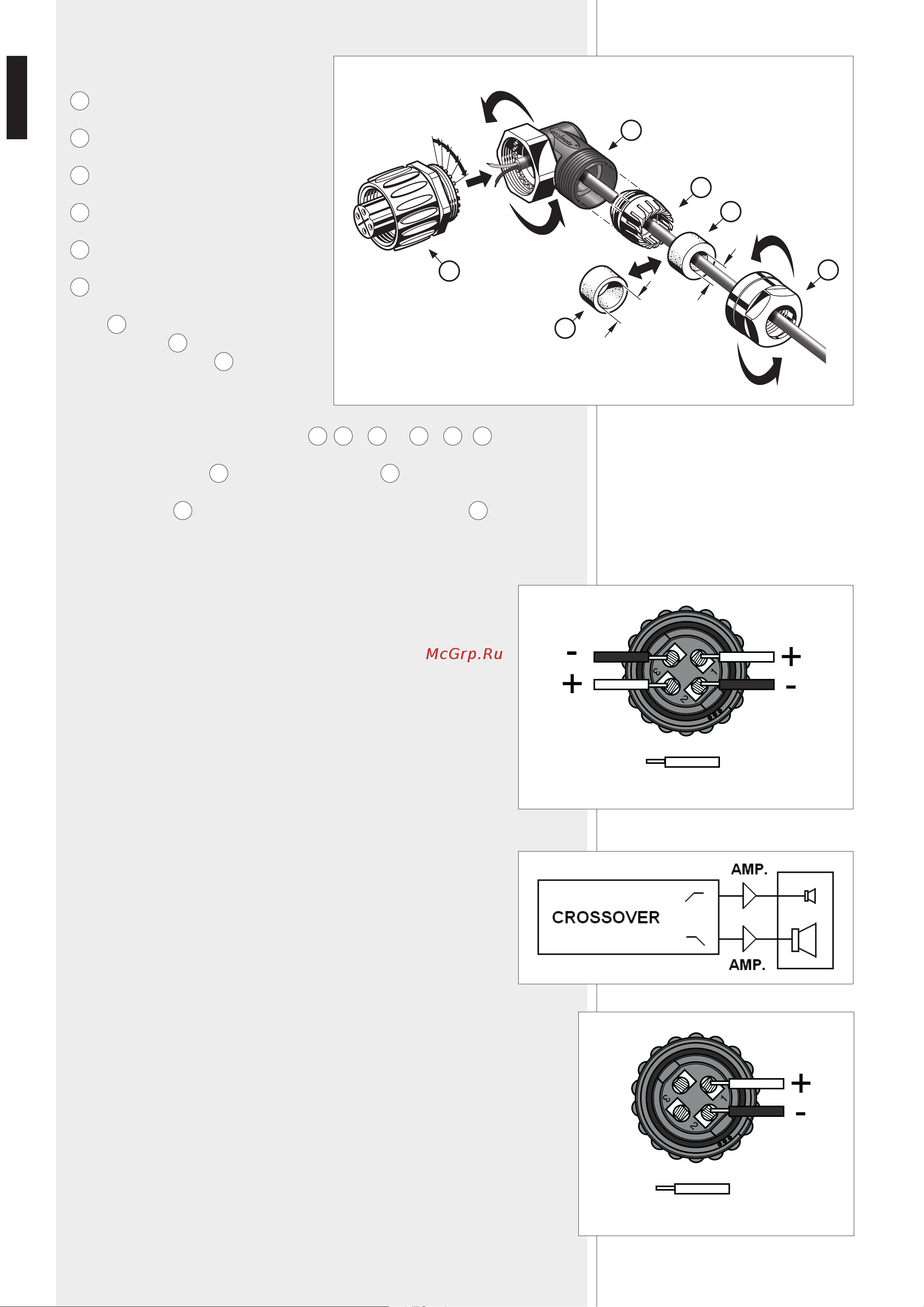

‘AMPHENOL ®’ TYPE CONNECTOR
A
: angled back shell
B
: clamping ring
C
1
: mounted gasket (for the clamping ring)
C
2
: alternative gasket
D
: nut
E
: female contact insert with locking ring
1. The
C
1
gasket is already inserted into the
clamping ring
B
: if necessary, replace it
by the alternative one
C
2
having a wider
hole.
2. Insert the cable (coming from the amplier)
through the connector parts (in order)
D
,
C
1
–
B
(or
C
2
–
B
),
A
.
3. Put the clamping ring
B
into the angled back shell
A
as shown above.
4. Tighten the nut
D
to x the clamping ring to the angled back shell
A
.
HL 2240, HL 2260, HL 2290
On the rear panel, there are 2 inputs linked in parallel (the second can be used
as an output for another loudspeaker) for ‘Amphenol’ plugs.
Plug pins:
1. WF +, woofer positive input (low frequencies)
2. WF –, woofer negative input (low frequencies)
3. TW +, tweeter positive input (high frequencies)
4. TW –, tweeter negative input (high frequencies)
TWO-WAY MODE (NO HS 2200 SUBWOOFERS)
At least two ampliers (one for low frequencies, one for high frequencies) and
an external crossover are necessary.
Low frequency nominal impedance: 8 Ω
Low frequency recommended amplier power: 2700 W
High frequency nominal impedance: 8 Ω
High frequency recommended amplier power: 300 W
Suggested crossover frequency: 600 Hz
HS 2200
On the rear panel, there are 2 inputs linked in parallel (the second can be used as an
output for another subwoofer) for ‘Amphenol’ plugs.
Plug pins:
1. subwoofer positive input
2. subwoofer negative input.
Do not connect pins 3 and 4.
MAX. Ø : 2.5 mm
2
4
WFTW
HL 2240
HL 2260
HL 2290
(4)
(3)
(1)
(2)
MAX. Ø : 2.5 mm
2
4
HS 2200
(1)
(2)
A
B
C
1
D
E
6-9 mm
9-12.5 mm
C
2
