RCF EVOX JMIX8 13000556 [6/24] Subwoofer rear panel and connections

ENGLISH

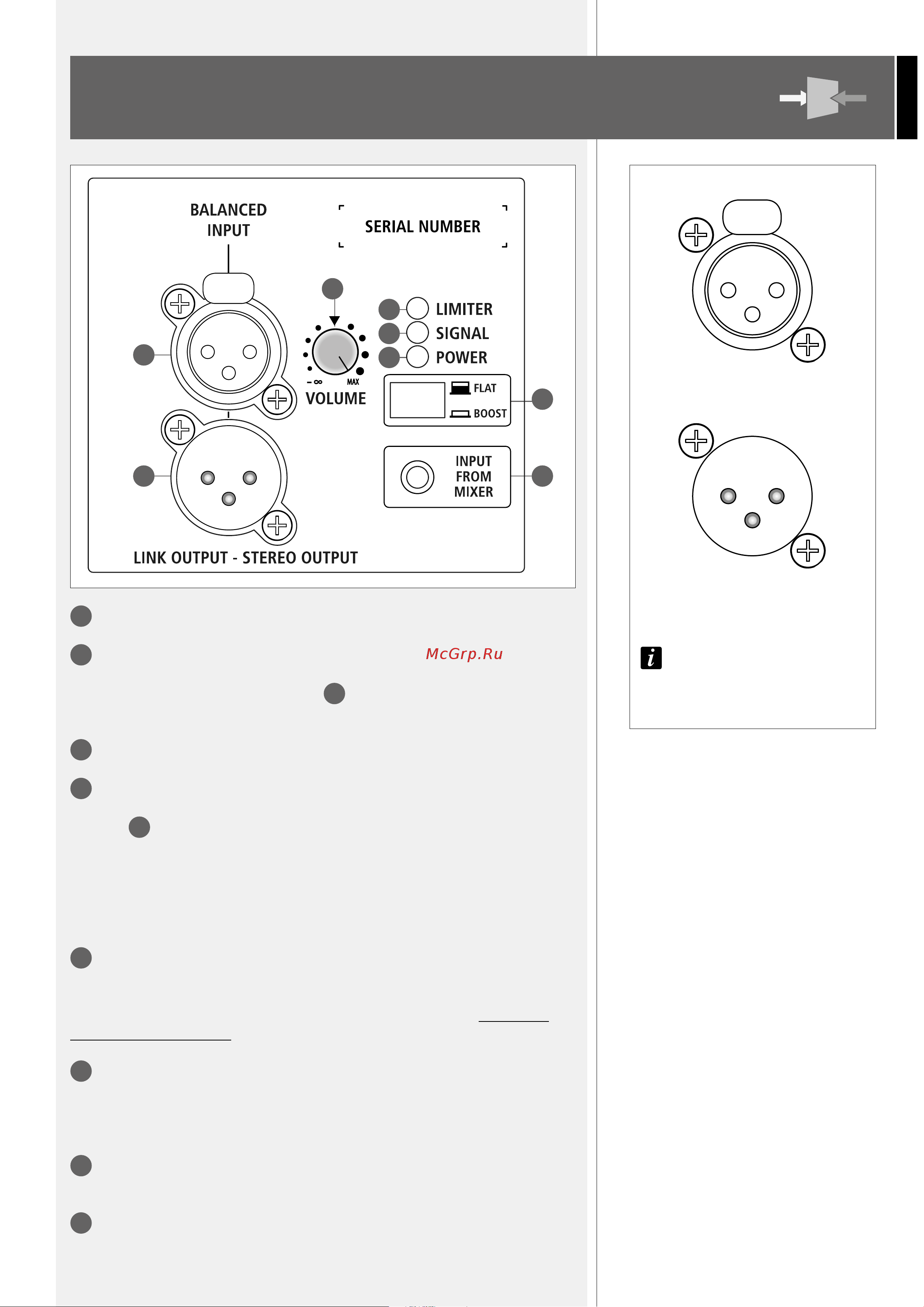

SUBWOOFER REAR PANEL

AND CONNECTIONS

Balanced audio input (female XLR connector)

Link output - Stereo Output (male XLR connector).

This output is linked in parallel with the audio input and is useful to connect another

speaker (only when the INPUT FROM MIXER

LED is off). Otherwise it works by

default as the mixer “R” output channel.

System volume control

INPUT FROM MIXER

When the LED is OFF, the digital mixer is disabled and the signal input is coming from the

XLR input

. In this case the male XLR output works as a regular parallel audio output.

When the LED is ON, the signal input is coming from EVOX JMIX8 digital mixer. In this

case, the male XLR output becomes by default the R output to an addictional EVOX J8.

(The mixer offers a function (SWAP LR) to swap the L-R output channels swapping them

to “R-L”;

See section 11 on the Digital Mixer Instruction Chapter).

FLAT / BOOST switch

FLAT (released switch, normal mode): no equalisation is applied (ﬂat frequency

response).

BOOST (pushed switch): ‘loudness’ equalisation, only recommended for background

music at low volume levels.

LIMITER LED

The internal ampliﬁer is provided with a limiter circuit to prevent clipping and overdriving

transducers. It blinks when the signal level reaches the clipping point, causing the limiter

intervention. If it is steady lit, the input signal level is excessive and should be reduced.

SIGNAL LED

When lit, it indicates the signal presence at the audio input.

STATUS LED

When blinking, it indicates the internal protection intervention due to thermal drift (the

ampliﬁer then gets to a “mute” status).

Female XLR connector

PUSH

2 1

Male XLR connector

XLR pins:

1 gRound, 2 audio signaL (+ , hot),

3 audio signaL (–, coLd).

PUSH

2 1
