ENGLISH

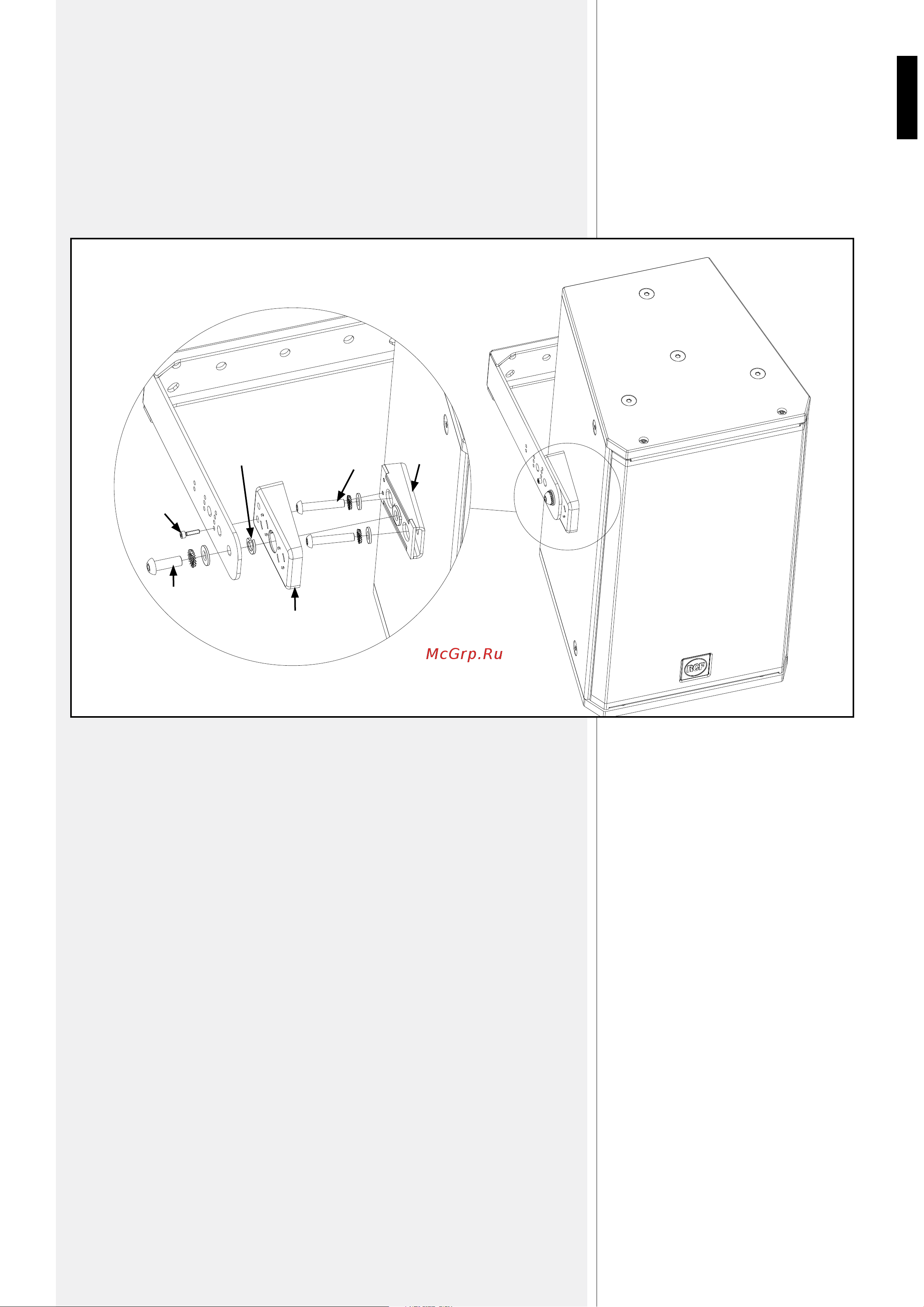

1. After removing the screwes on the speaker sides, ﬁx the angular adaptor on the

speaker with the M8x45 screws.

2. Place the plastic cover on the angular adaptor.

3. Fix the braket to the speaker with the M10x30 screws placing a grower washer

between the bracket and the plastic cover.

Alternatively, a less protruding installation is possibile thanks to the inner holes of the U

bracket.

Set the speaker vertical tilt and ﬁx the inclination by screwing the two M6 screws on the

adaptor.

NOTE: DO NOT TILT THE LOUDSPEAKER UPWARDS!

b) VERTICAL MOUNTING WITH U BRACKET

Necessary optional accessory:

VERTICAL BRACKET V-BR 2X COMPACT M 08 (for COMPACT M 08 model);

- VERTICAL BRACKET V-BR 2X COMPACT M 10 (for COMPACT M 10 model);

- VERTICAL BRACKET V-BR 2X COMPACT M 12 (for COMPACT M 12 model);

Fix the U bracket to the wall / ceiling through at least 4 lateral wall plugs (max. M8) plus

a central one (max. M10)..

ANGULAR

ADAPTOR

M8x45

GROWER WASHER

PLASTIC COVER

M10x30

M4x16
