Loudspeakers are to be install by qualiﬁed personnel, respecting all safety standards.

Loudspeakers are to be installed securely.

Make sure the support structure (walls / ceilings) has the necessary mechanical

characteristics for the loudspeaker weight, without the risk of a fall that could damage

things or cause an injury.

Use attachments elements suitable for walls / ceilings (e.g. wall plugs for bricks, for

concrete, etc.).

a) HORIZONTAL MOUNTING WITH U BRACKET

Necessary optional accessory:

HORIZONTAL BRACKET H-BR 2X COMPACT M 08 (for COMPACT M 08 model);

- HORIZONTAL BRACKET H-BR 2X COMPACT M 10 (for COMPACT M 10 model);

- HORIZONTAL BRACKET H-BR 2X COMPACT M 12 (for COMPACT M 12 model);

1. Fix the U bracket to the wall / ceiling through at least 4 lateral wall plugs (max. M8)

plus a central one (max. M10).

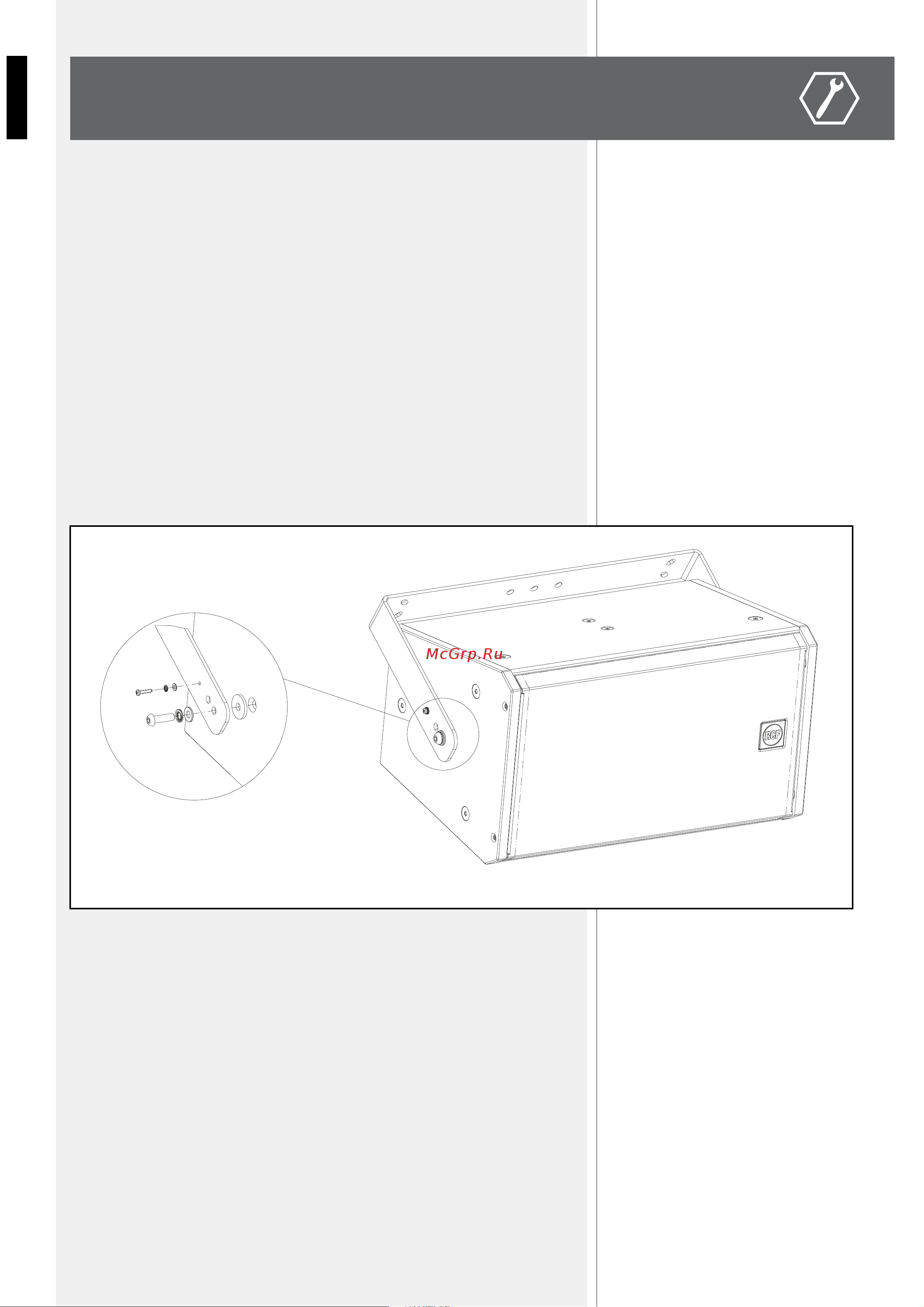

2. Mount the U bracket to the loudspeaker by tightening the two M10x35 bolts into the

holes of the loudspeaker top and bottom, as shown in the ﬁgure below.

Alternatively, it’s possible to install the speaker in a less protruding way by using the

other two inner holes on the U bracket.

Before tightening the two M10 bolts, adjust the loudspeaker vertical tilt and then (when

you found the right angle) ﬁx it through two M4.2x22 self-threading screws (passing

through the small hole of the U bracket) directly into the loudspeaker cabinet wood.

NOTE: DO NOT TILT THE LOUDSPEAKER UPWARDS!

INSTEAD OF SIMPLE M10 BOLTS, IT IS POSSIBLE TO USE THE M10 BOLT INCLUDED

KNOBS.
