b) VERTICAL MOUNTING WITH U BRACKET

NECESSARY OPTIONAL ACCESSORY:

- AC NC12 V-BR (for the C 5212-64, C 5212-66, C 5212-94, C 5212-96, C 5212-

99, C 7312-64, C 7312-94 models)

- AC NC15 V-BR (for the C 5215-64, C 5215-66, C 5215-94, C 5215-96, C 5215-

99, C 9315-64, C 9315-94 models).

Fix the U bracket to the wall / ceiling through at least 4 lateral wall plugs (max. M8) plus

a central one (max. M10).

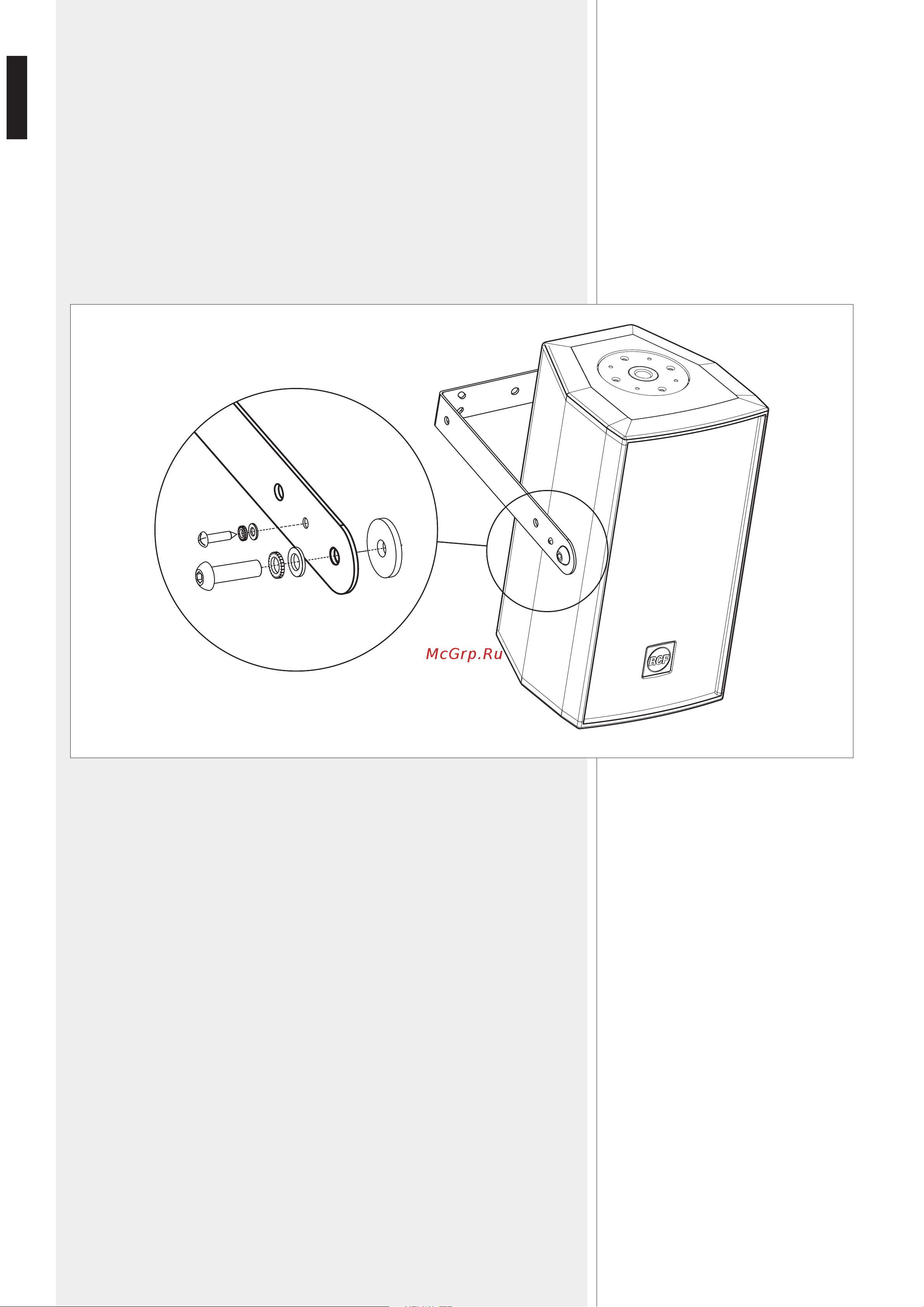

Mount the U bracket to the loudspeaker by tightening the two M10x35 bolts into the two

lateral holes of the loudspeaker, as shown in the gure below.

As an alternative, it is possible to install the loudspeaker a bit less prominent, tanks to

the U bracket inner holes.

Before tightening the two M10 bolts, adjust the loudspeaker vertical tilt and then x it

through two M4.2x22 self-threading screws (passing through the small hole of the U

bracket) directly into the loudspeaker cabinet wood.

Note: do NOT tilt the loudspeaker upwards!

Instead of simple M10 bolts, it is possible to use the included knobs (having M10 bolts).
