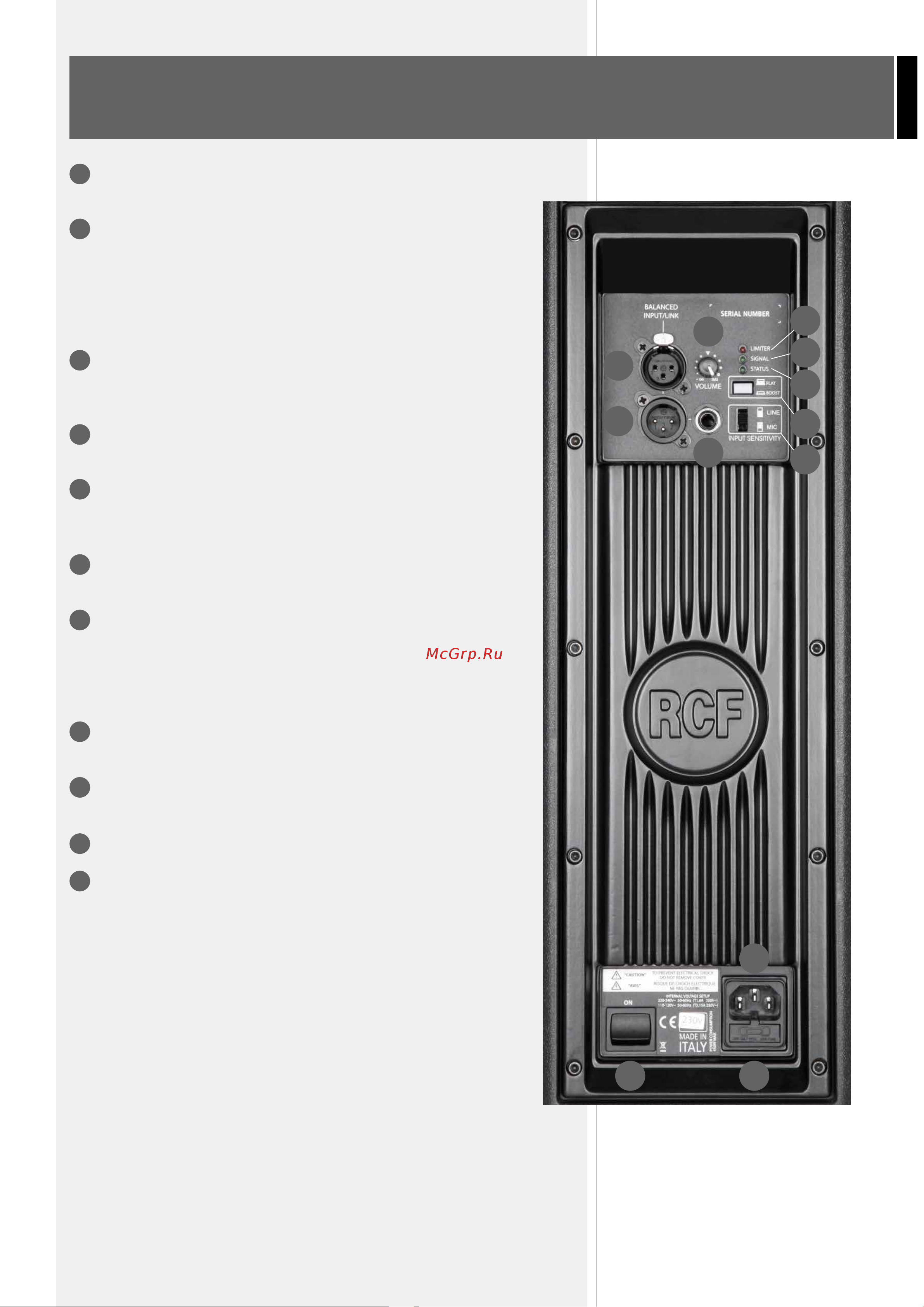

REAR PANEL FEATURES AND CONTROLS

JACK/FEMALE XLR INPUTS (BAL/UNBAL)

The system accept jack or XLR input connectors.

LIMITER LED

The ampliﬁer has a built in limiter circuit to prevent clipping of the

ampliﬁers or overdriving the transducers. When the soft clipping circuit is

active the LED blinks orange. It is okay if the limit LED blinks occasionally.

If the LED blinks frequently or lights continuously, turn down the signal

level.

SIGNAL LED

The signal indicator lights green if there is signal present on the main

XLR input

STATUS LED

The status indicator ﬂash if the temperature protection is active.

MALE XLR SIGNAL OUTPUT

The output XLR connector provides a loop trough for speakers daisy

chaining.

VOLUME CONTROL

Adjust the ampliﬁer volume.

FLAT/BOOST SWITCH

Set the ﬂat or boost equalization. “Boost” equalization is a loudness

recommended for background music applications,

when the system plays at a low level. For all other applications “Flat”

equalisation is recommended.

INPUT SENSITIVITY SWITCH. Position the switch in LINE to use a line

level source (0 dB) or MIC to use a microphone source.

IEC AC SOCKET

The IEC AC socket connect the power cord to the socket.

FUSE CARRIER. Mains fuse housing.

POWER MAIN SWITCH

The power switch turns the AC power ON and OFF.
