6
HOOKUP DIAGRAMS
Quick Start
1. Start with the following settings on the
back of the SRM450:
Turn the POWER switch off (down).
Set the TIMED TURNOFF, CONTOUR,
and LOW CUT switches out.
WARNING: Turn the
LEVEL control down
(counterclockwise)
before every use. If not,
you could be in for a
startling surprise, especially if the last
time you used it was with a microphone
and now you want to connect a line-
level source.
2. Connect the output from your signal
source (mixing console, microphone,
preamp, or other mic- or line-level
source) directly to the INPUT connector
on the back of the SRM450. It accepts
balanced line-level signals from mixers,
preamplifiers, CD players, tape decks,
etc., and accepts direct connections from
dynamic microphones.
3. Connect the supplied AC power cord to
the IEC socket on the back of the
SRM450. Plug the other end into an AC
outlet properly configured with the
correct voltage for your particular model.
4. Turn on your signal source. Make sure its
Master Volume control (if it has one) is
turned all the way down.
5. Turn on the SRM450 POWER switch.
6. Start the signal source, whether it be
speaking into a microphone or starting a
CD player. Adjust any volume controls on
the signal source for normal operation.
7. Slowly turn up the LEVEL control on
the back of the SRM450 until the
desired volume is reached (and the
PEAK light does not come on). Always
wear hearing protectors if you are close
when it is playing at high levels.
8. If there is no sound, always turn down
the SRM450 LEVEL control before
investigating. There may be a mixer or
preamplifier mute or tape switch
engaged, or a mic switch off.
DESIGNED BY MACKOIDS IN WOODINVILLE, WA • USA
DESIGNED BY MACKOIDS IN WOODINVILLE, WA • USA
Mixer or
Preamplifier
Right
Line level
Output
Left
Line level
Output
DESIGNED BY MACKOIDS IN WOODINVILLE, WA • USA DESIGNED BY MACKOIDS IN WOODINVILLE, WA • USA
DESIGNED BY MACKOIDS IN WOODINVILLE, WA • USA DESIGNED BY MACKOIDS IN WOODINVILLE, WA • USA
DESIGNED BY MACKOIDS IN WOODINVILLE, WA • USADESIGNED BY MACKOIDS IN WOODINVILLE, WA • USA
Thru
Thru
Next
Next
1202-VL ZPRO
1202-VLZPRO

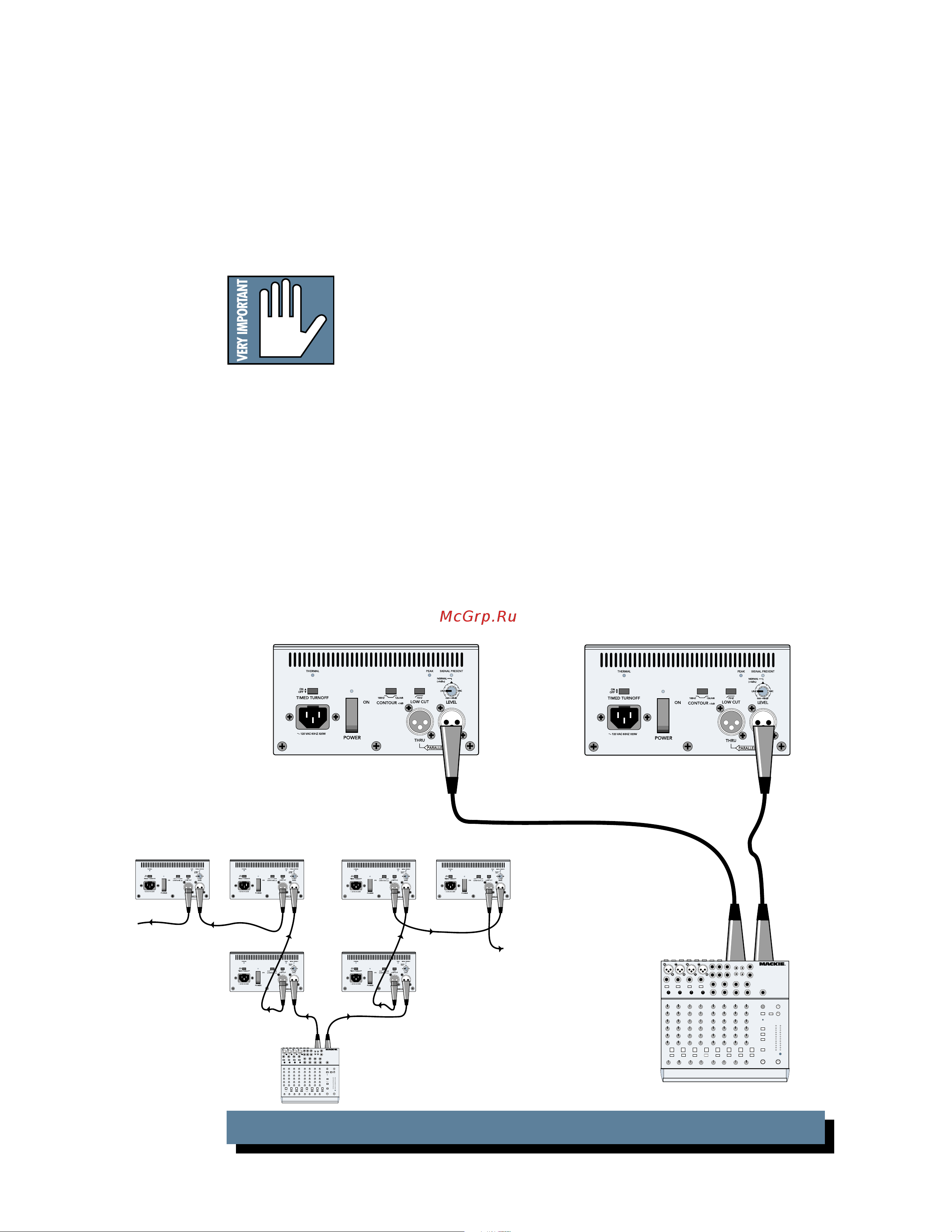

SRM450: STEREO OPERATION WITH A MIXER, AND USING THE THRU JACK
Daisy-chaining
SRM450s
