FULL RANGE SPEAKER

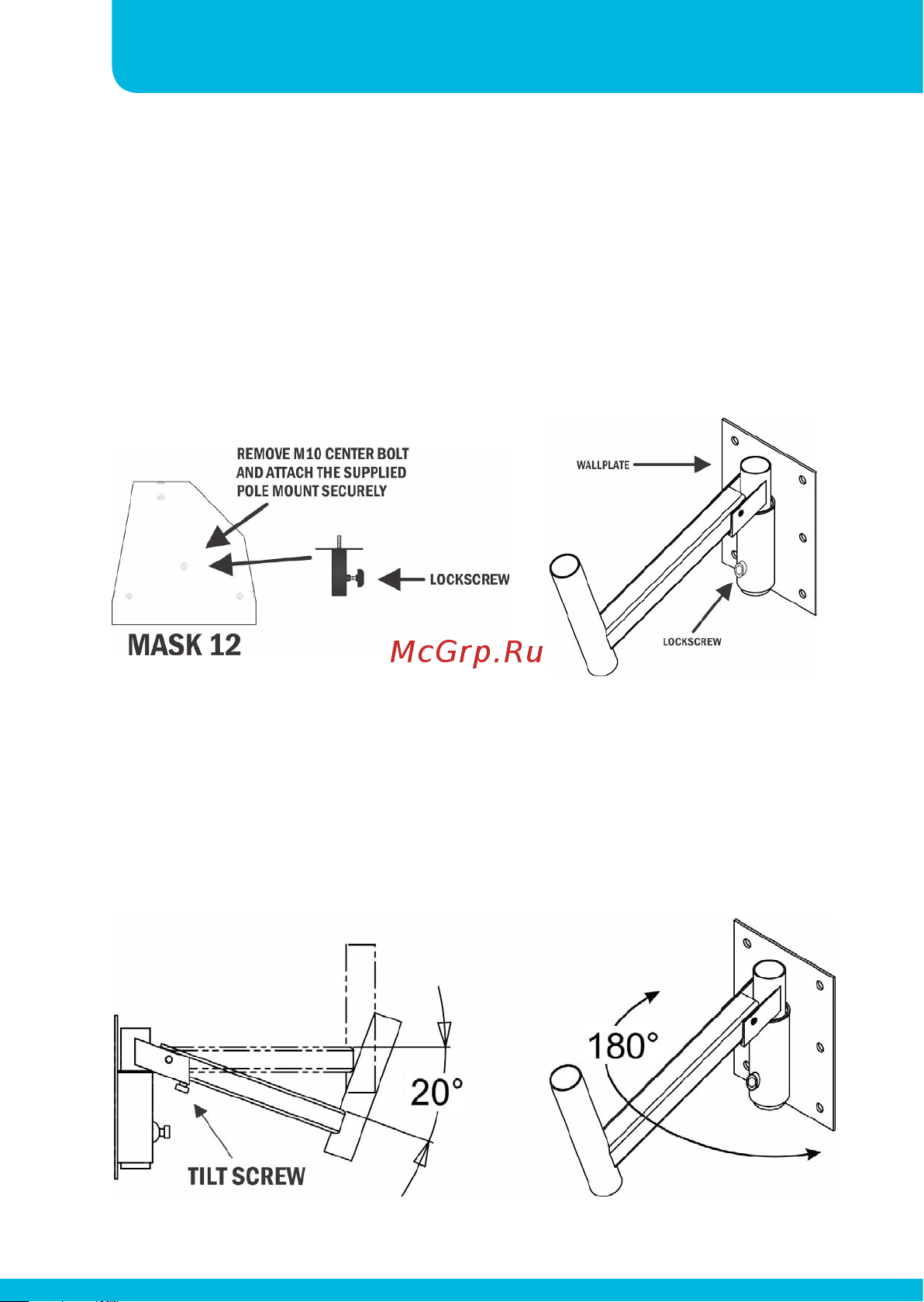

Installation using MASK12PBRA-BL (optional)

To install the MASK12 speaker on the bracket, remove the center

M10 bolt from the bottom of the speaker. Attach the pole mount

(supplied with the MASK12PBRA-BL) securely by fastening the

mount on the speaker.

Fix the wall plate on a sufﬁciently strong wall using all 6 mounting

holes. Always use mounting hardware (not supplied) capable of

supporting the load safely. The speaker arm can be swiveled over a

180° angle from left to right and can be tilted down up to 20° by

turning the tilt screw. Mount the speaker with the attached speaker

pole mount on the bracket and secure it by tightening the lock

screws.
