6 ULTRAGRAPH PRO FBQ6200/FBQ3102/FBQ1502 User Manual

2.2 Rear panel

(10)

(11) (12) (13)

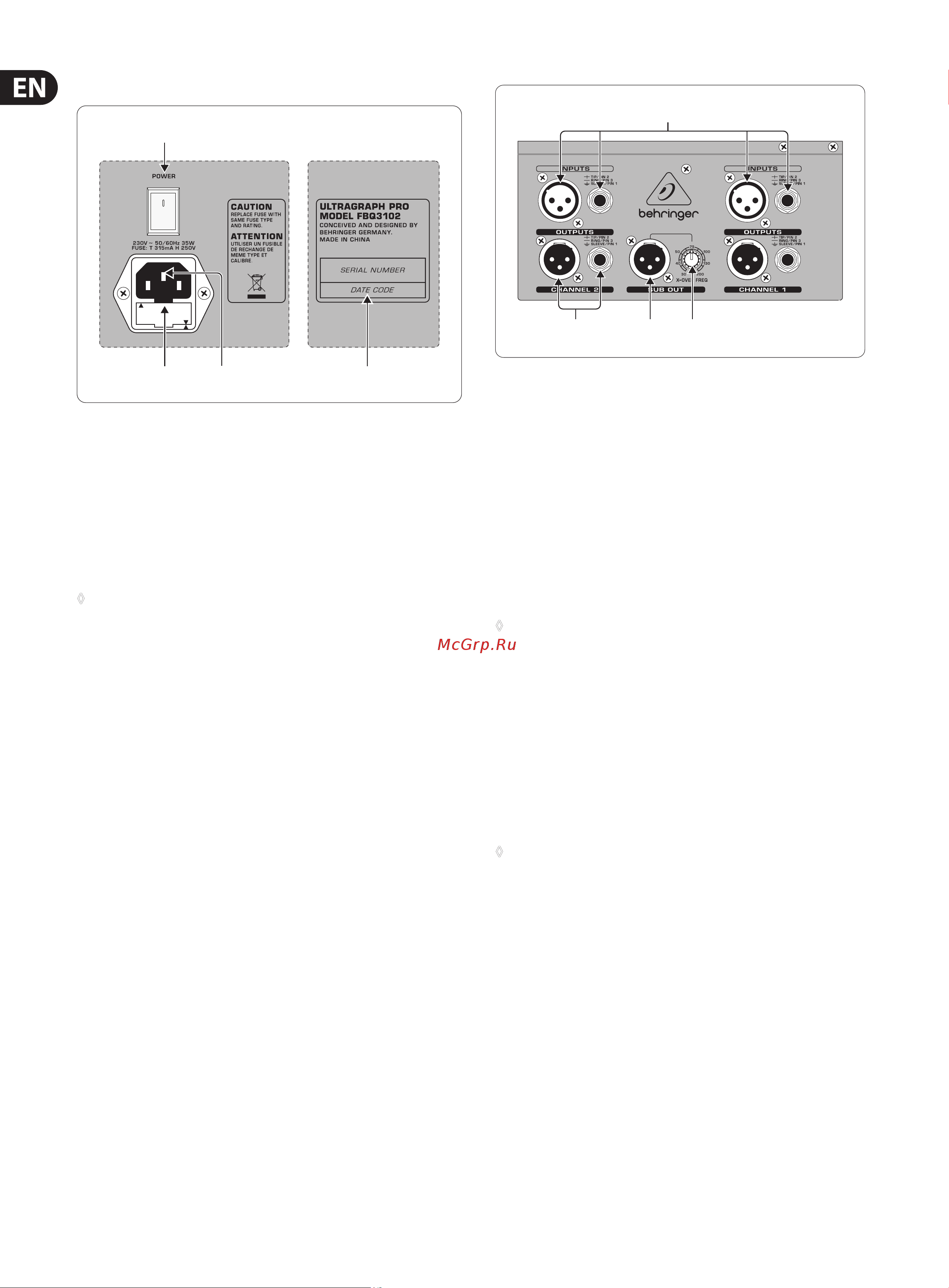

Fig. 2.2: Control elements and important information on the rear of the FBQ3102

(10) The POWER switch powers up your ULTRAGRAPH PRO. The POWER switch

should always be in the “O” position when you are about to connect your

FBQ to the mains.

To disconnect the unit from the mains, pull out the main cord plug.

Wheninstalling the product, ensure that the plug is easily accessible.

Ifmounting in a rack, ensure that the mains can be easily disconnected

by a plug or by an all-pole disconnect switch on or near the rack.

◊ Please keep in mind: The POWER switch does not entirely separate the

unit from the mains. Please disconnect the power cord from the mains

if you will not be using your FBQ for longer periods of time.

FBQ1502’s power switch is located at the front.

(11) The connection to the mains is done via a standard IEC connector.

Amatching cable is included.

(12) FUSE COMPARTMENT / VOLTAGE SELECTION. Before connecting the unit

to a power outlet, please make sure that the selected voltage matches your

local voltage. When replacing fuses, please make sure that you always use

fuses of the same type. Some units allow for switching between 230 V

and 120 V. Please note: when connecting a unit intended for the European

market to a 120 V power outlet, you must also replace the factory fuse with a

higher-value fuse.

(13) SERIAL NUMBER. Please take a few minutes and send to us a completely

lled out warranty card within 14 days of the original date of purchase.

Otherwise, warranty claims may be rendered invalid. Or ll out the warranty

information online at behringer.com.

(16) (17)(15)

(14)

Fig. 2.3: Connectors at the rear of the FBQ3102

(14) INPUT. These are the audio inputs of the FBQ3102. All three equalizers in the

series feature the same input and output connectors in the form of balanced

¼" TRS and XLR connectors.

(15) OUTPUT. These are the audio outputs. The ¼" connectors and their

respective XLR connectors are wired in parallel.

(16) SUB OUT. This balanced XLR connector provides the output signal for your

subwoofer. A summed up mono signal for the subwoofer is provided here.

Please connect the subwoofer amplier’s input to this connector.

(17) Use the X-OVER FREQ control to select the desired crossover frequency for

thesubwoofer.

◊ The bandwidth limitation enacted through the high-pass

filter (LOW CUT) also affects the frequency response of the

subwoofer output.

2.3 Additional FBQ6200 control elements

2.3.1 Limiter

One of the FBQ6200’s outstanding features is its integrated limiter.

A limiter is a device that protects your loudspeakers and other equipment

connected to your FBQ6200 (or your recordings) from overdriving and the signal

distortion associated.

◊ Please take into consideration that when you increase the presence

of multiple frequency bands, the overall signal level increases

subs tantially as well. The limiter will process very quickly in such

situations. This can be avoided by performing signal corrections by

lowering certain frequency ranges instead of increasing others.

To produce creative sound effects, you can also purposely “force” the

peak limiter into action.

(18) The ULTRAGRAPH PRO FBQ6200 features a built-in limiter for each channel.

Use the LIMITER switch for its activation.
