7 MULTICOM PRO-XL MDX4600/COMPOSER PRO-XL MDX2600/AUTOCOM PRO-XL MDX1600 User Manual
(18) The OUTPUT control allows you to raise or lower the output signal by
max. 20 dB, so as to make up for a gain loss caused by the compressor or
limiter action. Raise the gain by roughly the same amount that it has been
reduced by the compressor. The GAIN REDUCTION display (11) reads the
valueadjusted.
◊ When you adjust the LIMITER control in the peak limiter section,
please note that the output gain of the compressor is set before the
peak limiter. If the level is too high here, the peak limiter may respond
permanently (see LIMITER control (29) in the peak limiter section).
(19) The 12-digit INPUT/OUTPUT LEVEL display (MDX4600: 8-digit) reads
both the level of the incoming audio signal and the level at the dynamics
processor output. The range is from -30 to +18 dB (MDX4600: -24 to +18 dB).
(20) The IN/OUT METER switch selects whether the gain LEDs read the input
signal (switch pressed) or the output signal (switch not pressed).
◊ This display is referenced to the operating level selected with the
OPERATING LEVEL switch on the rear of the unit (-10 dBV or +4 dBu).
(21) The IN/OUT switch activates the corresponding channel. It provides
a so-called “hard bypass”, i.e. if it is OUT or the unit is not connected
to the mains, the input jack will be linked directly to the output jack
(COMPOSERPRO-XL MDX2600 only). Usually, this switch is used for direct A/B
comparison between unprocessed and compressed/limited signals.
Application hints
Setting the compressor will be much easier if you rst set both limiter
and expander to a neutral setting by turning both threshold controls
(TRIGGER and LIMITER) to OFF.
Setting the compression ratio requires your “sense of hearing”: Anything goes.
In general, however, the ratio setting should not be too high for mix signals;
instead, use 2:1 as a starting point to preserve the natural sound of the music;
a ratio setting of about 4:1 has proved successful for vocal recordings. The IKA
(Interactive Knee Adaptation) characteristic allows you to achieve a gradual
and inaudible compression and hence to use higher ratios. If you want to use
the compressor as an eect in its own right, don‘t hesitate to experiment with
highervalues.
Turn the THRESHOLD control counter-clockwise until the GAIN REDUCTION
display reads the desired gain reduction (don’t exceed 6 - 8 dB for mix signals).
During this process the volume is reduced audibly. Now turn the OUTPUT control
clockwise until this volume dierence has been made up for. The levels of the
compressed vs. uncompressed signals can be compared with the INPUT/OUTPUT
LEVEL display activated with the I/O METER switch. These two levels should be
the same.
The AUTO function for the attack and release times provides a program-
dependent—and largely inaudible—dynamics control, which suits
most standard applications. If a somewhat more “open” sound processing
prole is required, you can set the attack and release times manually
(AUTO switch not pressed).
Start with a longer Release time, then make it gradually shorter. You will soon
notice an unnatural pumping eect caused by rapidly changing levels. Select a
longer release time until the eect cannot be heard any longer.
The Attack time setting, too, is highly dependent on the music material.
Selectlonger attack times for a subtle and musical compression. As a result you
avoid attack portions of treble signals being cut o if compression is triggered by
a high-level bass drum beat that is played at the same time. The sound remains
transparent and compact throughout.
If the compressor is being used as a limiter, the attack time should be as short as
possible. This, in combination with a high ratio (>20:1), a medium to long release
time and the maximum possible threshold will protect your sound reinforcement
system eectively from getting overloaded.
2.3 The dynamic enhancer section
(23)
(22) (24)
MDX1600

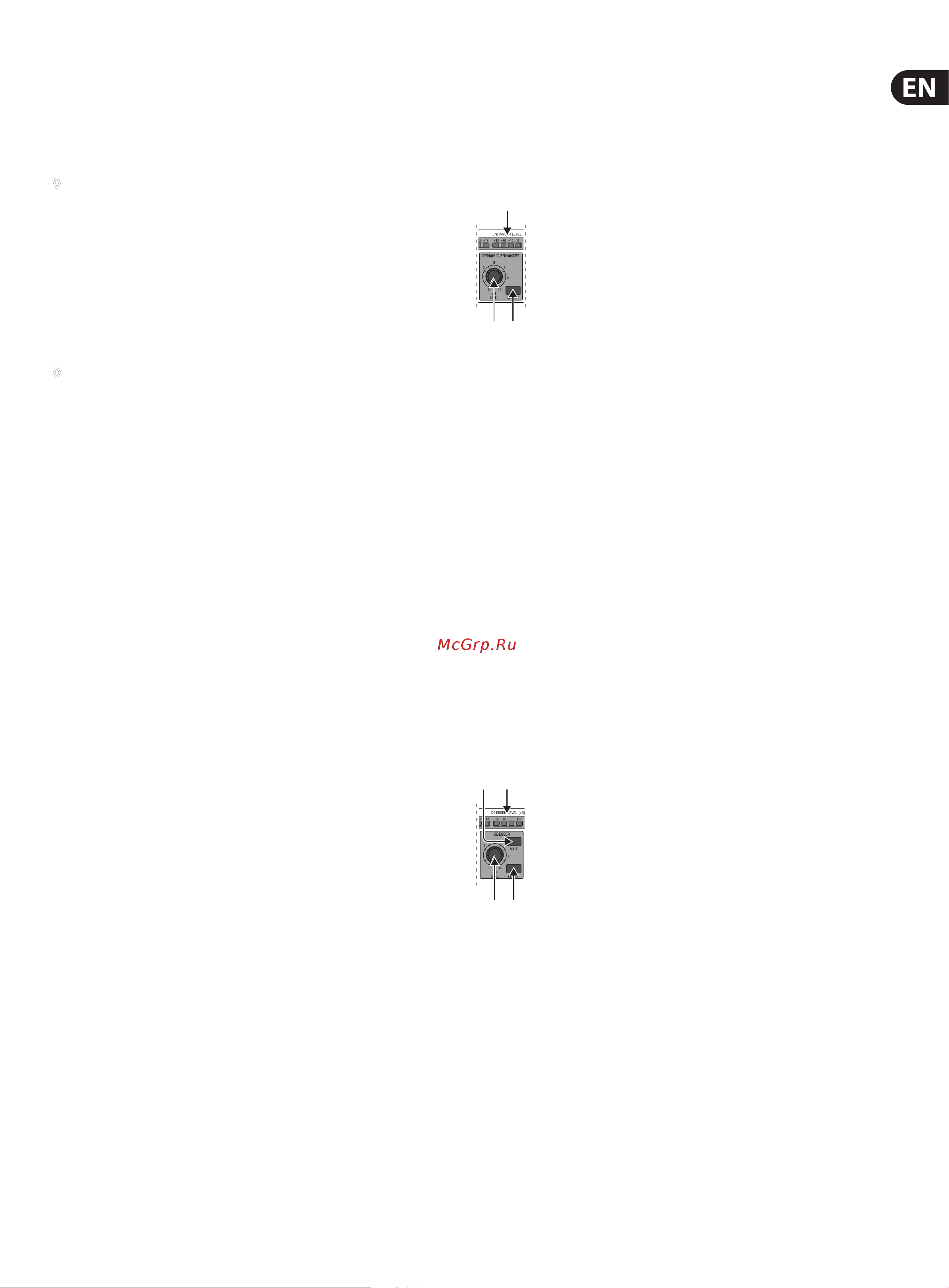

Fig. 2.4: Dynamic enhancer section control elements
The dynamic enhancer circuit implemented in all three dynamic processors
allows you to dynamically enhance the treble range. Since the bass portions of a
music signal often have the highest energy yield, they usually are the ones that
trigger the compression process, thus also reducing the gain of middle to high
frequencies. The enhancer controls the compression process and gradually adds
more highs, the stronger the treble range is compressed, so as to make up for the
subjective loss of high-frequency content.
(22) LEVEL control (MDX1600). The AUTOCOM PRO-XL features an adjustable
enhancer, on which you can set the amount of treble boost with the
LEVELcontrol.
ENHANCER switch (MDX2600 and MDX4600). Activates the
dynamicenhancer.
(23) ENHANCER LEVEL. The LED chain reads the current treble boost within a
range from -30 to 0 dB (MDX1600 only).
(24) IN/OUT switch (MDX1600). Use this switch to activate the enhancer circuit,
e.g. to assess the eect the enhancer has on the audio signal.
2.4 The de-esser section
(26)(27)
(25) (28)
MDX2600
Fig. 2.5: De-esser section control elements
From a circuitry point of view, the de-esser is placed in the side-chain path of the
compressor, so it will operate only if the compressor is active.
(25) LEVEL control (MDX2600). Instead of an adjustable enhancer, the COMPOSER
PRO-XL has a controllable de-esser, which helps you eliminate hiss noise
contained in the audio signal. The LEVEL control determines the amount of
frequency suppression.
DE-ESSER switch (MDX1600). The AUTOCOM PRO-XL also has a de-esser.
At the touch of a button you can enhance the audio signal considerably,
especially when processing vocal recordings. Switch (25) can be found in the
compressor section.
