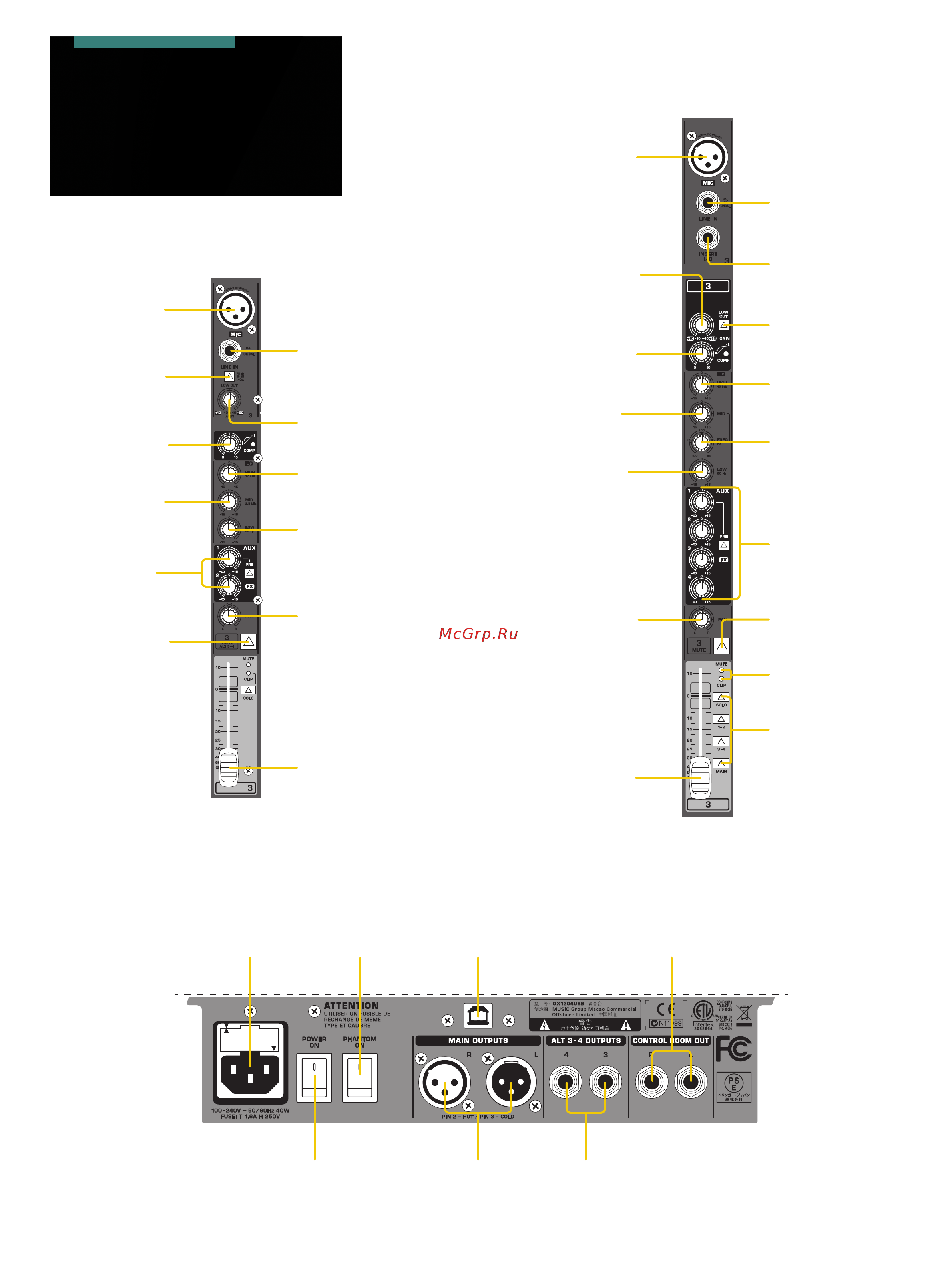

XENYX QX1204USB/Q1204USB Rear Panel
IEC power socket
Phantom
Power switch
USB/Audio
Interface port
Control Room Out,
¼" TS unbalanced
Power switch Main Outputs,
XLR balanced
Alt 3-4 Outputs,
¼" TS unbalanced
XENYX QX2442USB Channel Strip
XLR mic input with
XENYX preamp
Gain control adjusts
input signal level
Compressor knob
adjusts compression
eect on channel
with threshold LED
Mid level ±15 dB,
variable center
frequency
Low EQ ±15 dB,
centered @ 80 Hz
Pan control adjusts
position of signal in
stereo image
Channel fader
adjusts signal level
in Main Mix
¼" balanced/
unbalanced line
input
Insert I/O jack
for connecting
external processor
Low Cut lter
removes unwanted
infrasonics
High EQ ±15 dB,
centered @ 12 kHz
Mid Frequency,
variable 100 Hz – 8 kHz
Aux Sends for Monitors
(2 x pre/post selectable)
and FX (2 x post)
Mute switch removes
signal from Main Mix
Mute & Clip LEDs
Solo & Sub/Main
assignment switches
XENYX QX1204USB/Q1204USB Channel Strip
XLR mic input with
XENYX preamp
Low Cut lter
removes unwanted
infrasonics
Compressor knob
adjusts compression
eect on channel
Mid EQ ±15 dB,
centered @ 2.5 kHz
Aux Sends for
monitors and FX,
Aux Send 1 pre/post
selectable
Mute/Alt 3-4 switch
removes signal from
Main Mix, sends
signal to Alt 3-4 bus
¼" balanced/
unbalanced line
input
Gain control
adjusts input
signal level
High EQ ±15 dB,
centered @ 12 kHz
Low EQ ±15 dB,
centered @ 80 Hz
Pan control adjusts
position of signal in
stereo image
Channel fader adjusts
signal level in Main
Mix, Mute & Clip LEDs,
channel Solo switch
XENYX QX2442USB/QX2222USB/
QX1832USB/QX1622USB/
QX1222USB/QX1204USB/
Q1204USB/QX1202USB/
Q1202USB/QX1002USB/
Q1002USB/Q802USB/Q502USB
