Discreet Acoustics Modular PLUS Series 13

Modules falling into Place

Reference Programmable Powering Module

Small discussion systems

Press conference

Lectern

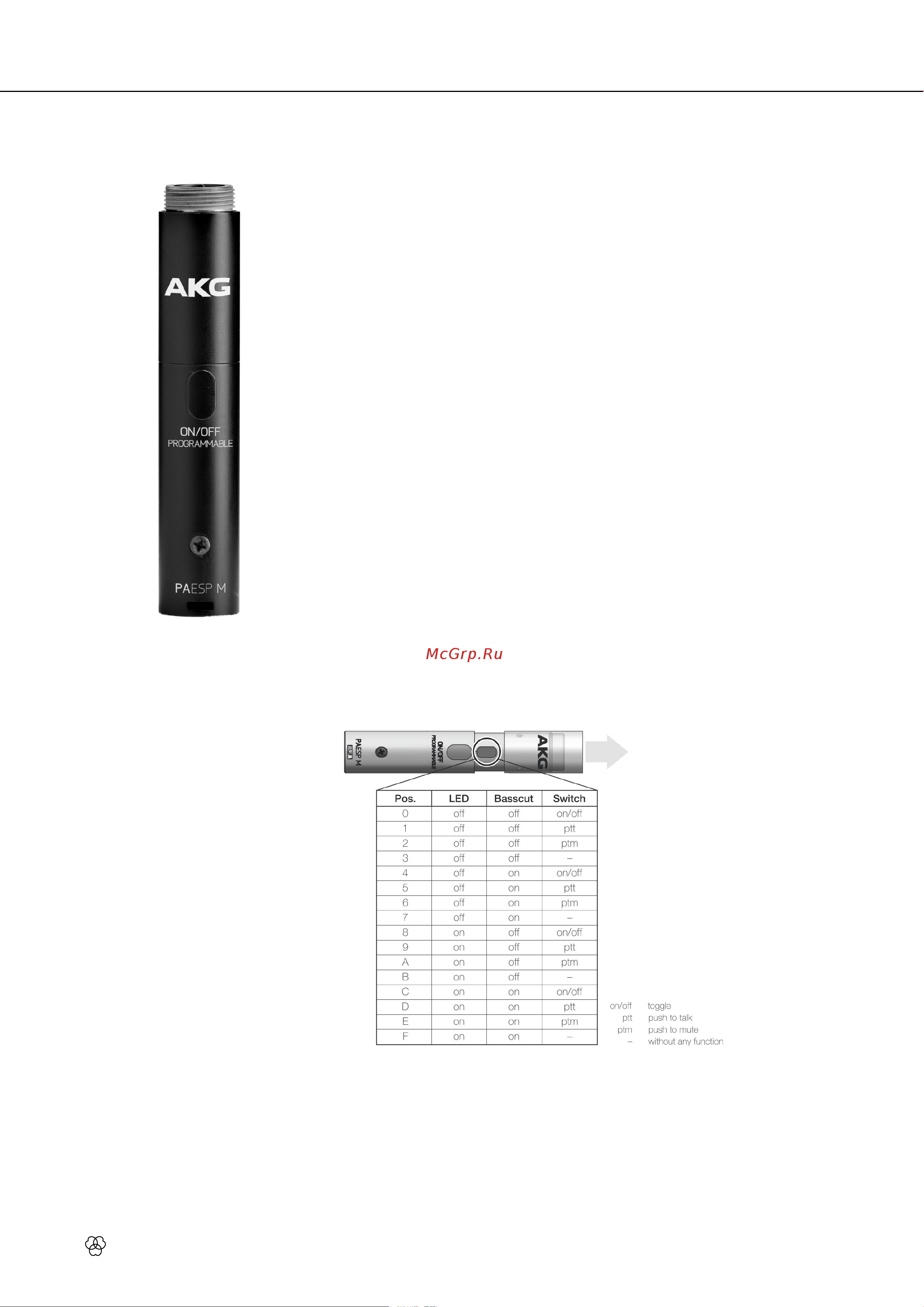

The Modular Plus Series PAESP M is a programmable phantom power module for fixed and

mobile installation. With its wide voltage range the module will fit most available microphone

mixers. It comes with a unique BCD (binary coded decimal) switch to recall one of the

operating modes. Several functions can be adjusted, e.g. bass roll off, LED ring mode (on, off,

follow mic function) as well as the mic switch mode (push to mute, push to talk, push on –

push off).

The PAESP M features a completely noiseless microphone switch. Rather than actually

disconnecting the signal, it reduces the level by 26 dB, thus avoiding the irritating crackling

sound when phantom powering is interrupted. The switch is inconspicuously placed but easily

accessible for simple handling even by inexperienced talkers. The integrated system connector

with gold-plated contacts securely fits all available mounting modules of the Modular Plus

Series.

 Programmable on/mute/off switch

offers noiseless switching

 Selectable operating modes

for switchable bass roll off and light-ring function

 RFi Shield technology

provides high immunity to radio-frequency interference

 Accepts 9-52 V input

for almost any available mixer inputs

 Feeds all Modular Plus Series capsules

for highest flexibility

Item Number:

PAESP M 3165H00170

PAESP M

Disconnect XLR-plug before changing settings!

PAESP M
