RS19-4U/6U/8U is a studio rack which is suitable for 19’’ equipment. Its alum tube combination with 19’’ hole

rack strips which make the construction more sturdy and stable. Insert the thumbscrew into thumbscrew holes

to lock the devices on the rack. According to device’s height, you can move the device up and down flexible,

arranging the devices in one line, also featuring better diffusion. One rack can arrange 4/6/8 devices. When at

stage performance, EVA reduces the thrill in a way.

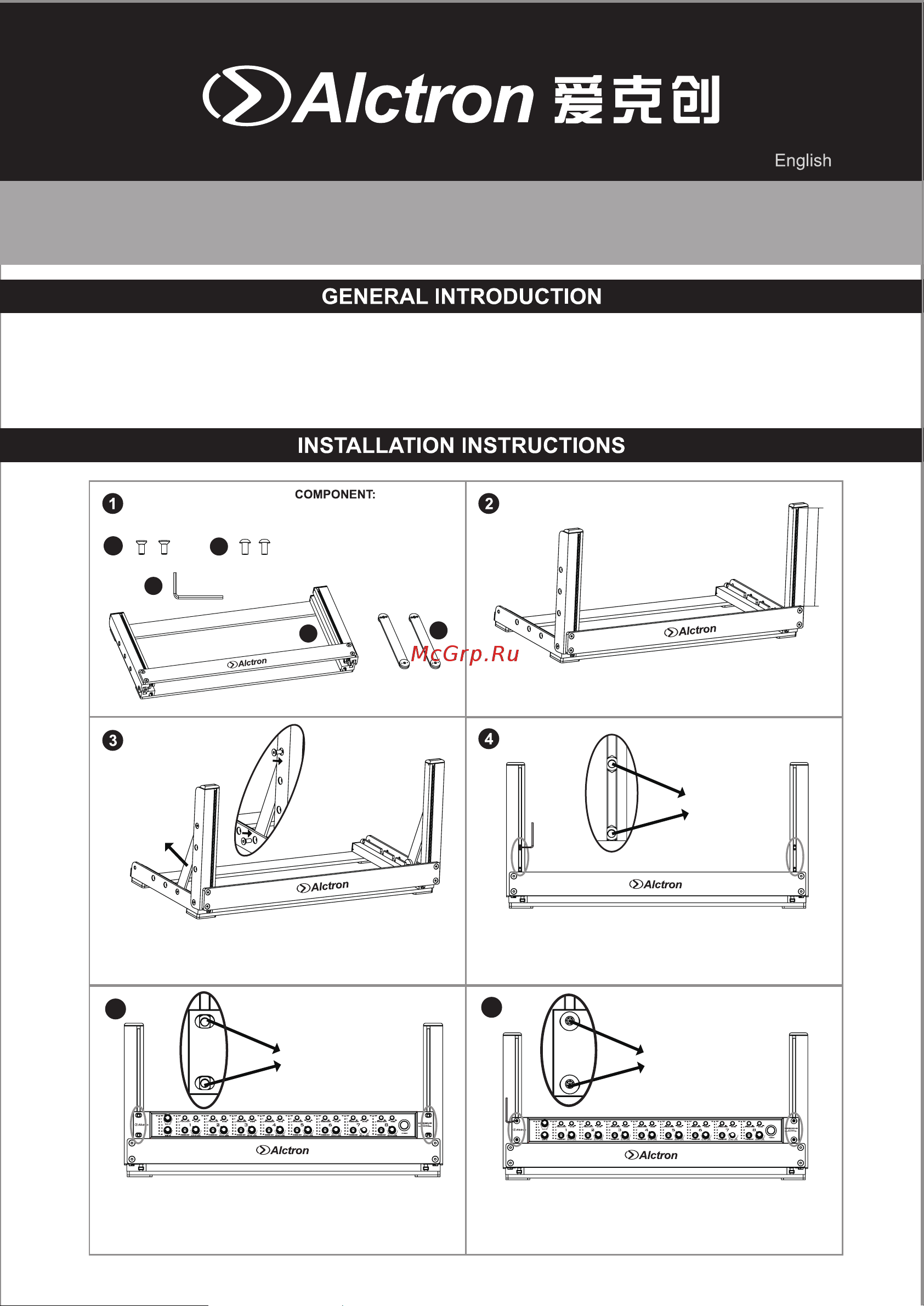

RS19 STUDIO RACK

A.Rack

B.Support bar

C.Locking thumbscrew X4

D.Locking thumbscrew X16

E.Hexagon wrench

Unfolded the studio rack(A).

Put support bar(B) into related thumbscrew hole, use

locking thumbscrew(C) to lock RS19.

According to your 19’’ devices height, use hexagon

wrench(E) to position rack cage nuts in relative height.

Put the 19’’ device into rack and device ear hole aim to

the cage nuts position. If device’s hole has a little

difference with cage nuts position, please adjust the

cage nuts position until holes aim to each other.

Cage nuts

Device ear hole

aim to the cage

nuts position

Locking thumbscrew D

RS19-6U/8U follow the same installation instruction.

Support bar

Via device ear hole and cage nuts, using hexagon

wrench(E) to lock locking thumbscrew (D) .

178mm
