Example of Usage

The Scarlett 2i4 is an excellent choice for several different recording and monitoring applications.

Some typical conﬁgurations are shown below.

Connecting a microphone or instrument

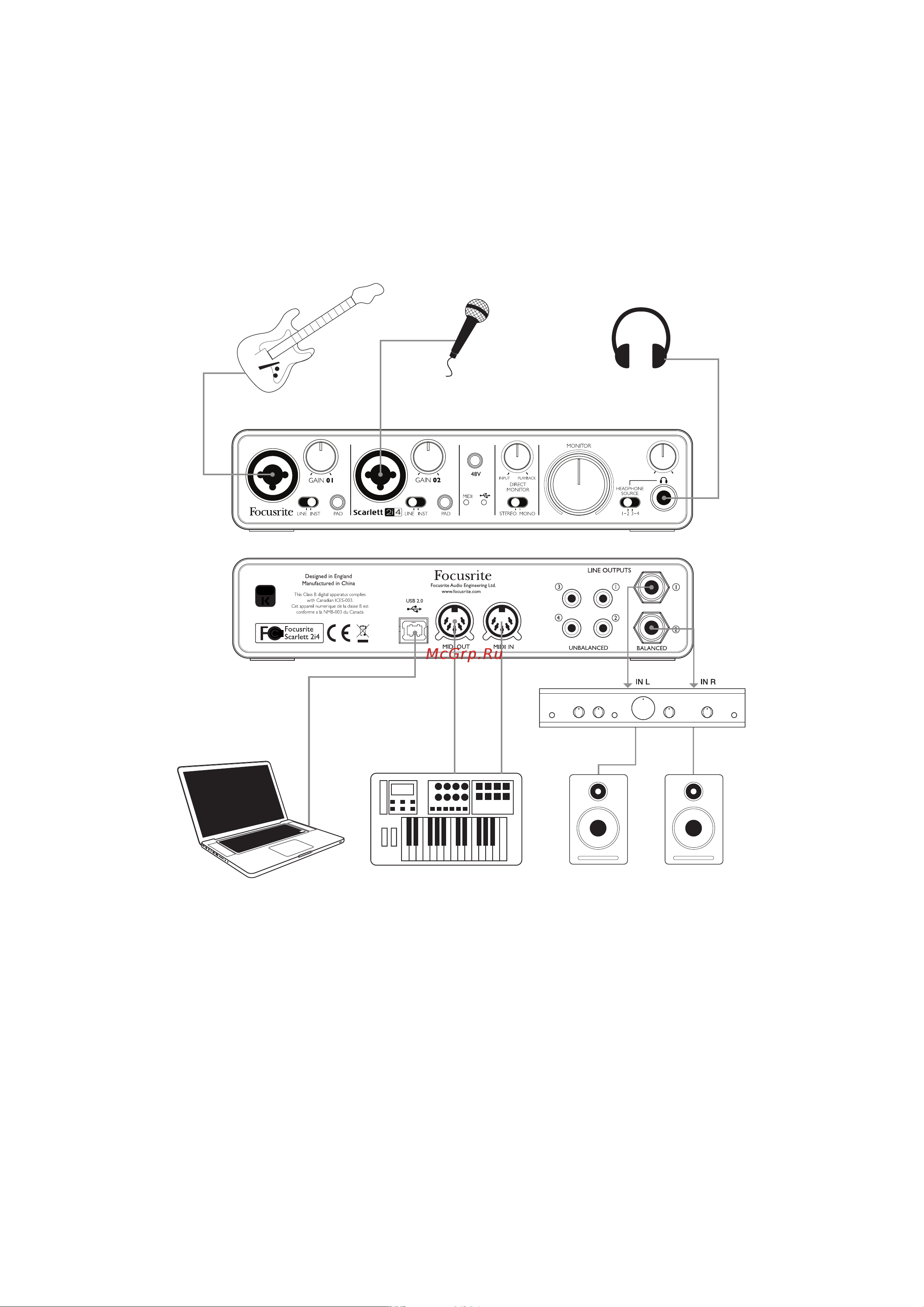

This setup illustrates the most typical conﬁguration for recording with DAW software on your Mac or

PC. In this case, you might record guitar through Input 1 and vocals through Input 2 into Ableton Live

Lite, while monitoring the playback from the DAW via headphones or loudspeakers.

The front panel input sockets are Neutrik Combo® type, which accept either an XLR male connector

(you will probably have one on the end of your microphone cable) or a ¼” (6.35 mm) jack plug.

Note the Scarlett 2i4 has no “Mic/line” switch – the Focusrite preampliﬁer stage is automatically

conﬁgured for a microphone when you plug an XLR into the input, and for a line or instrument when

you connect a jack plug. Set the LINE/INST switch next to the socket to INST if you are connecting

musical instrument (a guitar in the example) via an ordinary 2-pole guitar jack, or to LINE if you are

connecting a line level source such as the balanced output of an external audio mixer via a 3-pole

(TRS) jack. Note the Combo connector accepts both types of jack plug.
