5 XENYX QX2442USB/QX2222USB/QX1832USB/QX1622USB User Manual

• Mix:

All other mixing console functions fall under this vital category. Creating a

mix means primarily adjusting the volume levels of individual instruments

and voices to one another as well as giving them the appropriate weight

within the overall frequency spectrum. Likewise, you’ll have to sensibly

spread individual voices across the stereo image of a signal. At the end of

this process, adjusting the level of the entire mix to other equipment in the

signal path is required (e. g. recorder/crossover/amplier).

The control surface of BEHRINGER mixing consoles is optimized in such a way

that these functions become easy to fulll while the signal path remains

simple to follow.

1.2 The user’s manual

The user’s manual is designed to give you both an overview of the controls,

aswell as detailed information on how to use them. In order to help you

understand the links between the controls, we have arranged them in groups

according to their function. If you need to know more about specic issues,

please visit our website at http://behringer.com. Additional information and

explanations about various music industry/audio technology terminology can be

found on individual product pages as well as in the glossary.

1.3 Before you get started

1.3.1 Shipment

Your mixing console was carefully packed in the factory to guarantee safe

transport. Nevertheless, we recommend that you carefully examine the

packaging and its contents for any signs of physical damage, which may have

occurred during transit.

1.3.2 Initial operation

Be sure that there is enough space around the unit for cooling purposes and to

avoid over-heating please do not place your mixing console on high-temperature

devices such as radiators or power amps. The console is connected to the

mains via the supplied cable. The console meets the required safety standards.

Blownfuses must only be replaced by fuses of the same type and rating.

◊ Please note that all units must be properly grounded. For your own

safety, you should never remove any ground connectors from electrical

devices or power cables, or render them in operative.

◊ Please ensure that only qualified people install and operate the

mixing console. During installation and operation, the user must have

sufficient electrical contact to earth, otherwise electrostatic discharges

might affect the operation of the unit.

2. Control Elements and Connectors

This chapter describes the various control elements of your mixing console.

Allcontrols, switches and connectors will be discussed in detail.

2.1 Mono channels

2.1.1 Microphone and line inputs

QX2222USB

QX2442USB

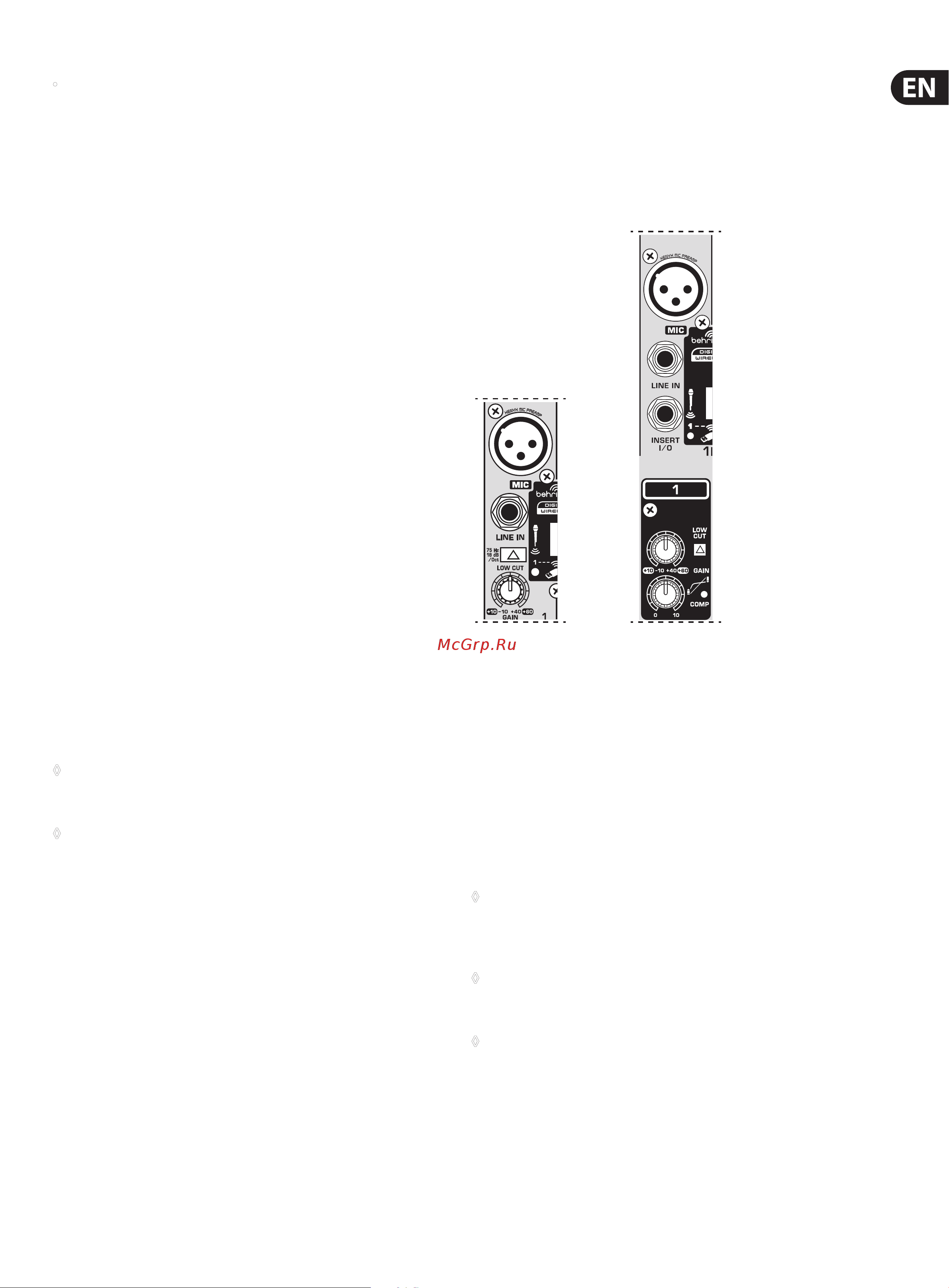

Fig. 2.1: Connectors and controls of mic/line inputs

MIC

Each mono input channel oers a balanced microphone input via the XLR

connector and also features switchable +48 V phantom power supply for

condenser microphones. The XENYX preamps provide undistorted and noise-free

gain as is typically known only from costly outboard preamps.

LINE IN

Each mono input also has a balanced line input on a ¼" jack. You can also connect

unbalanced devices using mono cables to these inputs.

◊ Please remember that you can use either the microphone input or the

line input of a channel, but not both at the same time!

INSERT

◊ Insert points enable the processing of a signal with dynamic processors

or equalizers. They are sourced pre-fader, pre-EQ and pre-aux send.

Detailed information on using insert points can be found in chapter 5.3.

◊ Unlike the QX2442USB, the QX1622USB, QX1832USB and QX2222USB

have their insert points located on the rear of the console.
