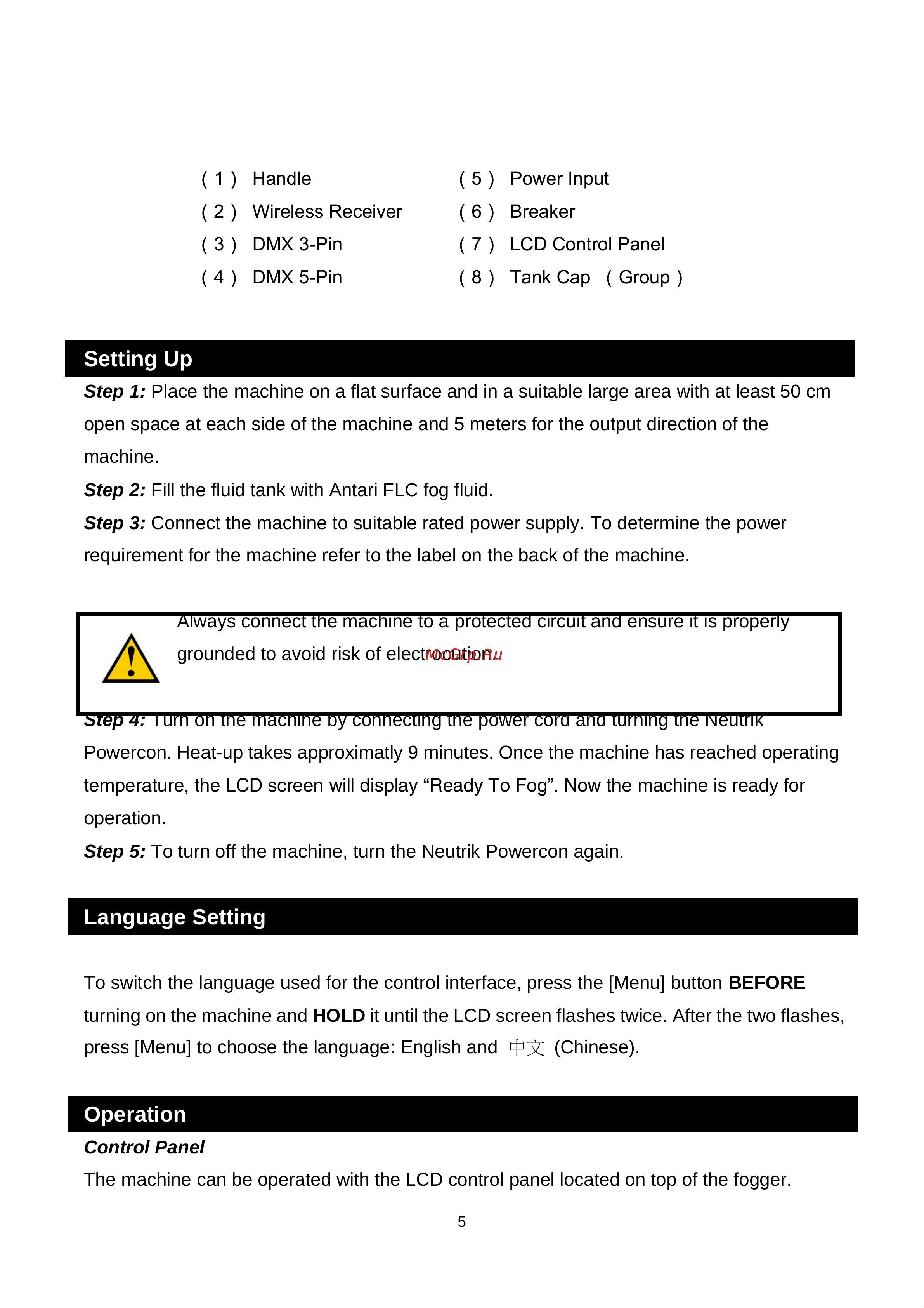

（1） Handle

（2） Wireless Receiver

（3） DMX 3-Pin

（4） DMX 5-Pin

（5） Power Input

（6） Breaker

（7） LCD Control Panel

（8） Tank Cap （Group）

Setting Up

Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 cm

open space at each side of the machine and 5 meters for the output direction of the

machine.

Step 2: Fill the fluid tank with Antari FLC fog fluid.

Step 3: Connect the machine to suitable rated power supply. To determine the power

requirement for the machine refer to the label on the back of the machine.

Always connect the machine to a protected circuit and ensure it is properly

grounded to avoid risk of electrocution.

Step 4: Turn on the machine by connecting the power cord and turning the Neutrik

Powercon. Heat-up takes approximatly 9 minutes. Once the machine has reached operating

temperature, the LCD screen will display “Ready To Fog”. Now the machine is ready for

operation.

Step 5: To turn off the machine, turn the Neutrik Powercon again.

Language Setting

To switch the language used for the control interface, press the [Menu] button BEFORE

turning on the machine and HOLD it until the LCD screen flashes twice. After the two flashes,

press [Menu] to choose the language: English and 中文 (Chinese).

Operation

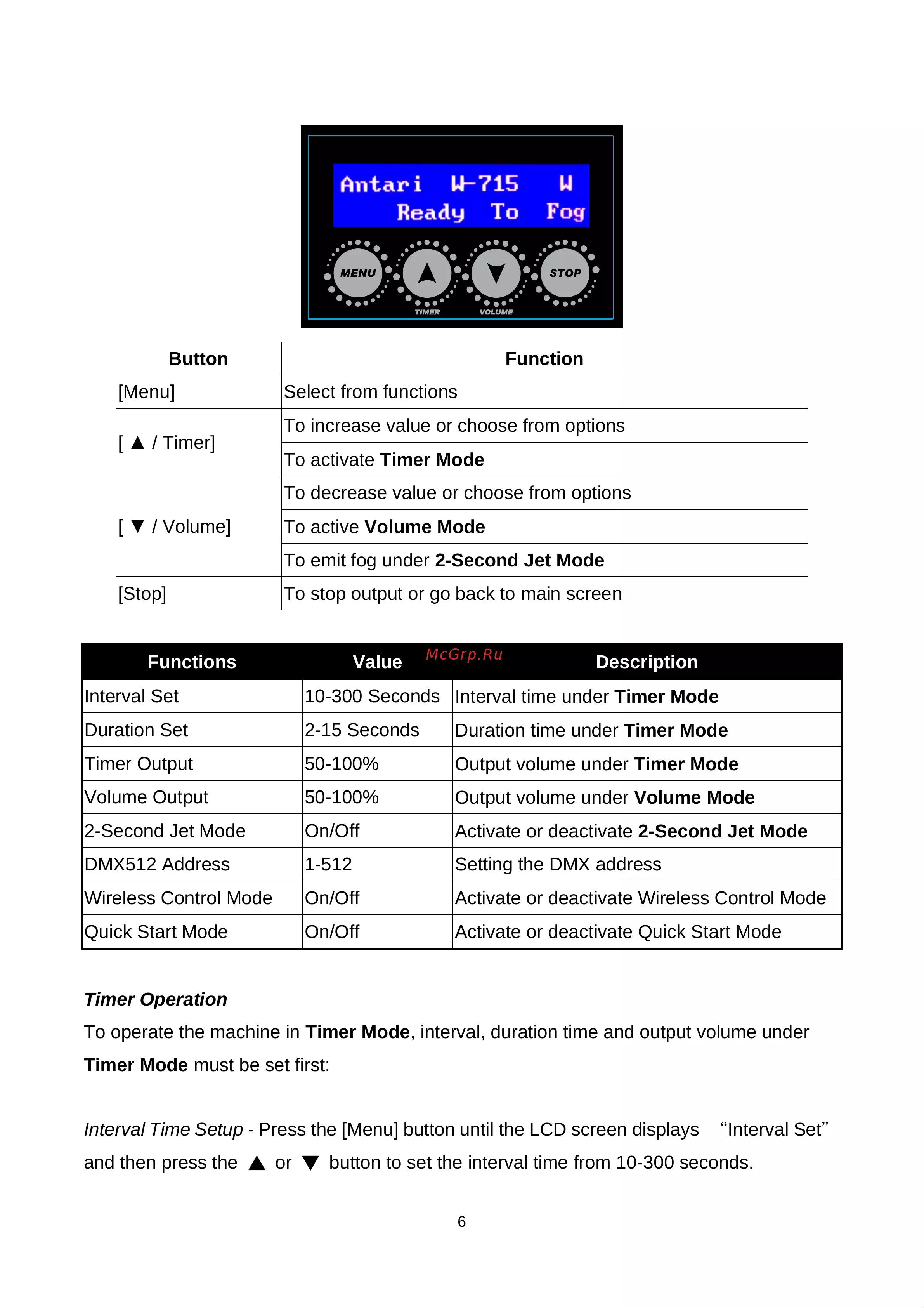

Control Panel

The machine can be operated with the LCD control panel located on top of the fogger.
