Allen & Heath 2 WZ
4
16:2 and 12:2 User Guide

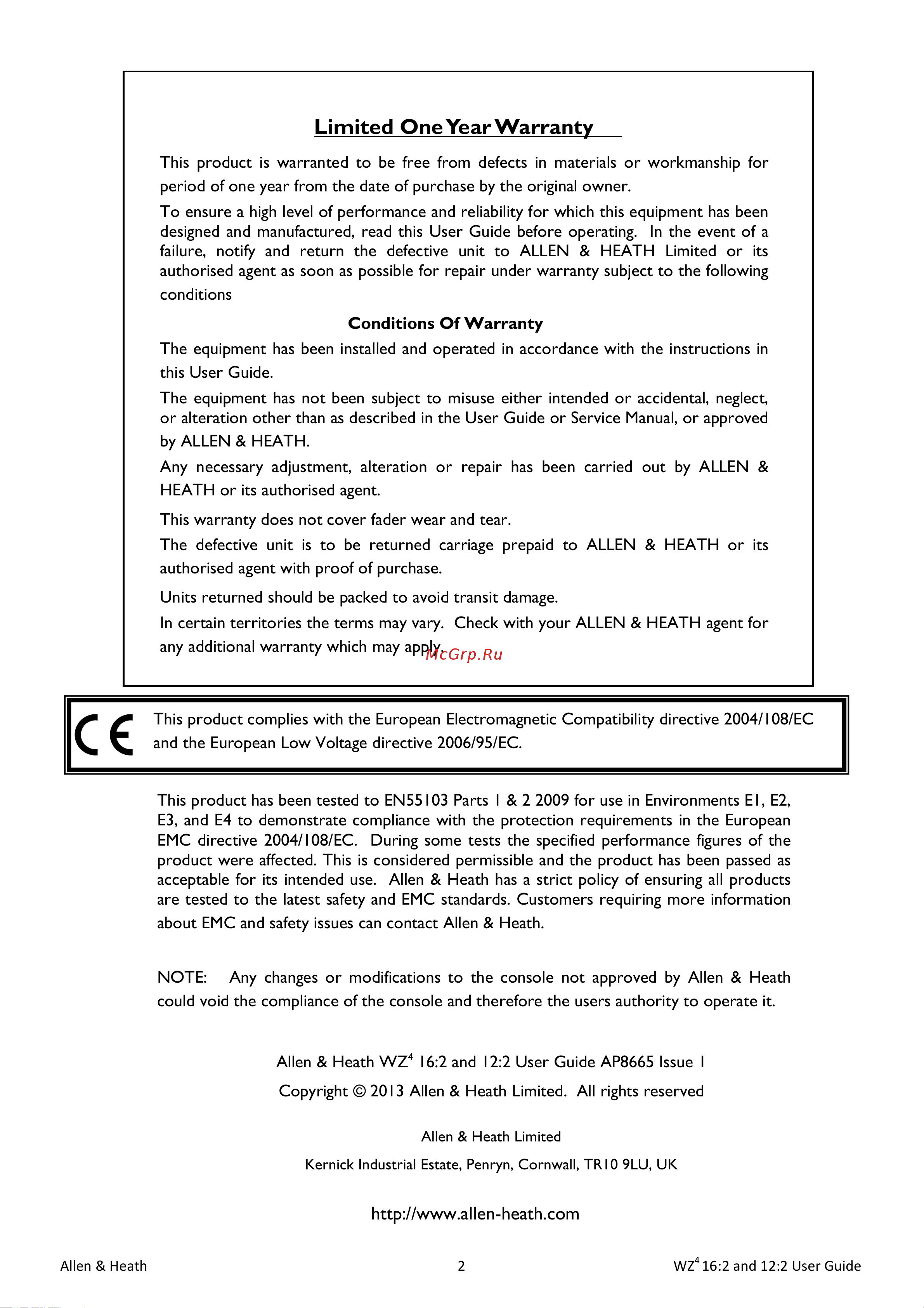

Limited One Year Warranty
This product is warranted to be free from defects in materials or workmanship for
period of one year from the date of purchase by the original owner.
To ensure a high level of performance and reliability for which this equipment has been
designed and manufactured, read this User Guide before operating. In the event of a
failure, notify and return the defective unit to ALLEN & HEATH Limited or its
authorised agent as soon as possible for repair under warranty subject to the following
conditions
Conditions Of Warranty
The equipment has been installed and operated in accordance with the instructions in
this User Guide.
The equipment has not been subject to misuse either intended or accidental, neglect,
or alteration other than as described in the User Guide or Service Manual, or approved
by ALLEN & HEATH.
Any necessary adjustment, alteration or repair has been carried out by ALLEN &
HEATH or its authorised agent.
This warranty does not cover fader wear and tear.
The defective unit is to be returned carriage prepaid to ALLEN & HEATH or its
authorised agent with proof of purchase.
Units returned should be packed to avoid transit damage.
In certain territories the terms may vary. Check with your ALLEN & HEATH agent for
any additional warranty which may apply.
This product has been tested to EN55103 Parts 1 & 2 2009 for use in Environments E1, E2,
E3, and E4 to demonstrate compliance with the protection requirements in the European
EMC directive 2004/108/EC. During some tests the specified performance figures of the
product were affected. This is considered permissible and the product has been passed as
acceptable for its intended use. Allen & Heath has a strict policy of ensuring all products
are tested to the latest safety and EMC standards. Customers requiring more information
about EMC and safety issues can contact Allen & Heath.
NOTE: Any changes or modifications to the console not approved by Allen & Heath
could void the compliance of the console and therefore the users authority to operate it.
Allen & Heath WZ
4
16:2 and 12:2 User Guide AP8665 Issue 1
Copyright © 2013 Allen & Heath Limited. All rights reserved
Allen & Heath Limited
Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK
http://www.allen-heath.com
This product complies with the European Electromagnetic Compatibility directive 2004/108/EC
and the European Low Voltage directive 2006/95/EC.
