• 2-hour quick charging.
• Two slots that fit both DHT 700 and DPT 700.
• LED status information

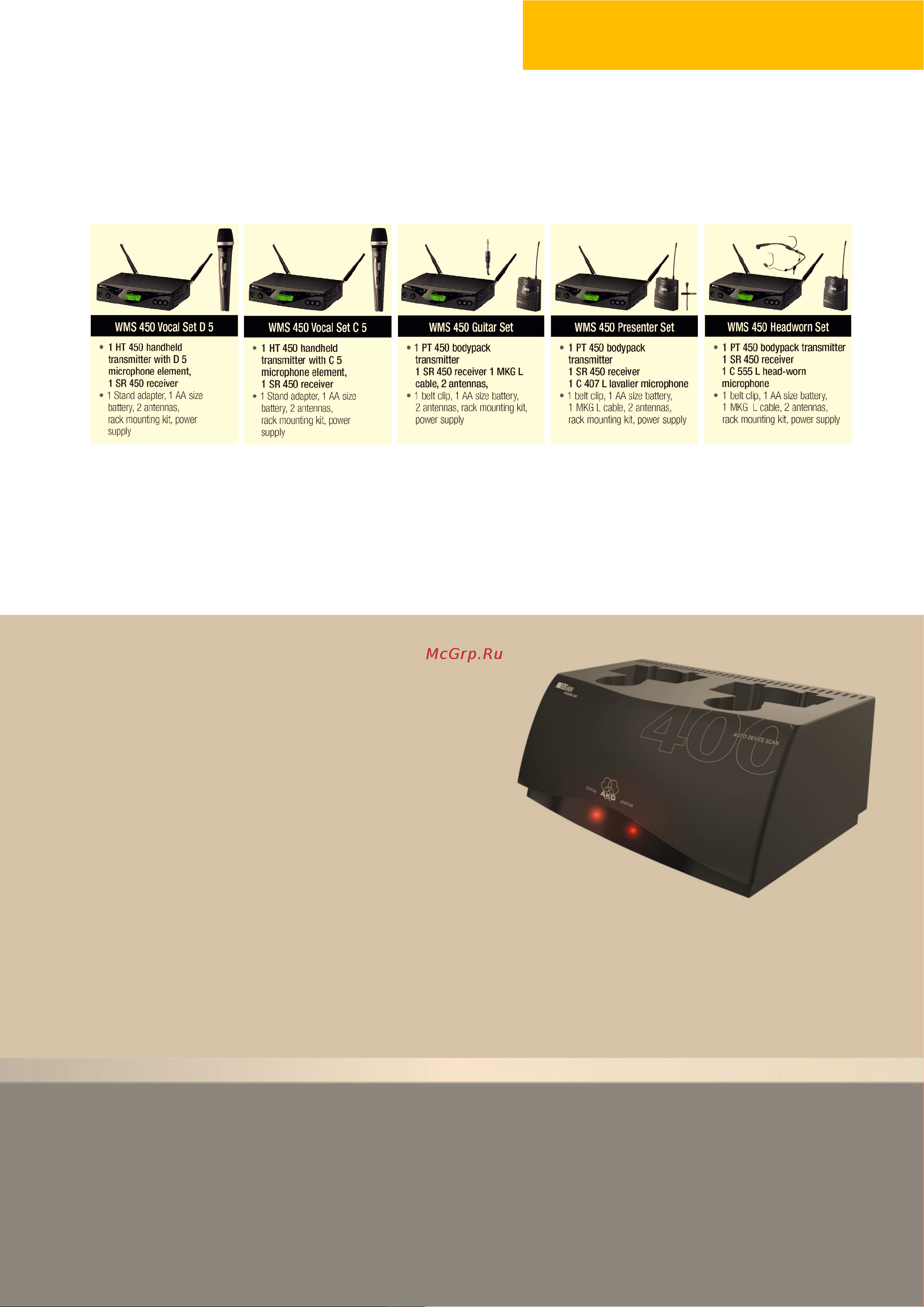

CU 400
CU 400 Charging Unit Specifications
Matching devices HT 450, PT 450, HT400, PT400, HT40, PT 40
Rechargeable batteries AA size, >2100 mAh NiMH rechargeable battery
Slot number 2
Dimensions 7.4(W) x 4.5(H) x 3.1(D) inch / 188(W) x 115(H) x 78(D) mm
Net / Shipping Weight 14.8 oz / 420 g
Standard Accessories 1 x 5 V / 1.5 A DC Power supply
AKG’s CU 450 is a fast charger that rapidly charges the rechargeable battery inside
the transmitter without damaging the cell element. CU 450 charger determine the
optimum charge current. Charging is terminated when both batteries are fully
charged.
The CU 450 charger use the pulse technology in which a pulse is fed to the battery.
This DC pulse has a strictly controlled rise time, pulse width, pulse repetition rate
(frequency) and amplitude.
Item number: CU 400 EU 2934Z0001
CU 400 US 2934Z0002
CU 400 UK 2934Z0003
CU 400 no power supply 2934Z0004
Architects’ and Engineers’ Specifications
The charger shall be housed in a rugged plastic case with two multifunctional charging slots for charging WMS 450 and WMS 40 PRO Series wireless transmitters.
Each charging slot shall accommodate a handheld or bodypack transmitter and the charger shall be capable of charging any combination of transmitters (e.g., one
HT 450 and one PT 450 simultaneously). The batteries shall remain inside the transmitter(s) during charging. The charger shall detect any dry (non-rechargeable)
battery inside a transmitter and automatically stop the charging cycle if a dry battery is inserted. A status LED shall be placed in front of each charging slot. These
tricolor (red/amber/green) LEDs shall indicate the charger's current operating status: amber - battery is being tested; red - battery is being charged; green - battery is
fully charged and charging cycle finished; flashing red - error. The voltage and temperature shall be monitored during the charging cycle and a signal given at the end
of a charging cycle to indicate that full capacity has been reached. All required safety parameters shall be monitored and the charging cycle stopped if one or more
safety parameters fall below or exceed the acceptable range. Operating voltage shall be 5 VDC, 1.5 A max. The charger shall accept NiMH or NiCd rechargeable
batteries with a minimum capacity of 1500 mAh. Typical charging current shall be 1.4 A when one charging slot is used and 0.7 A when both slots are used
simultaneously, typical charging time 1.5 hours when one charging slot is used and 3 hours when both slots are used simultaneously (depending on battery type and
capacity). The charger shall measure 188 x 115 x 78 mm (LxHxD), weigh approx. 420 g, and be enameled black. The charger shall be the CU 400 or equivalent.
Wireless Microphone System
WMS 450 Sets
Item number:
3235X00..
Item number:
3236X00..
Item number:
3239X00..
Item number:
3237H00..
Item number:
3238X00..
