22 WMS420

Description

Back side

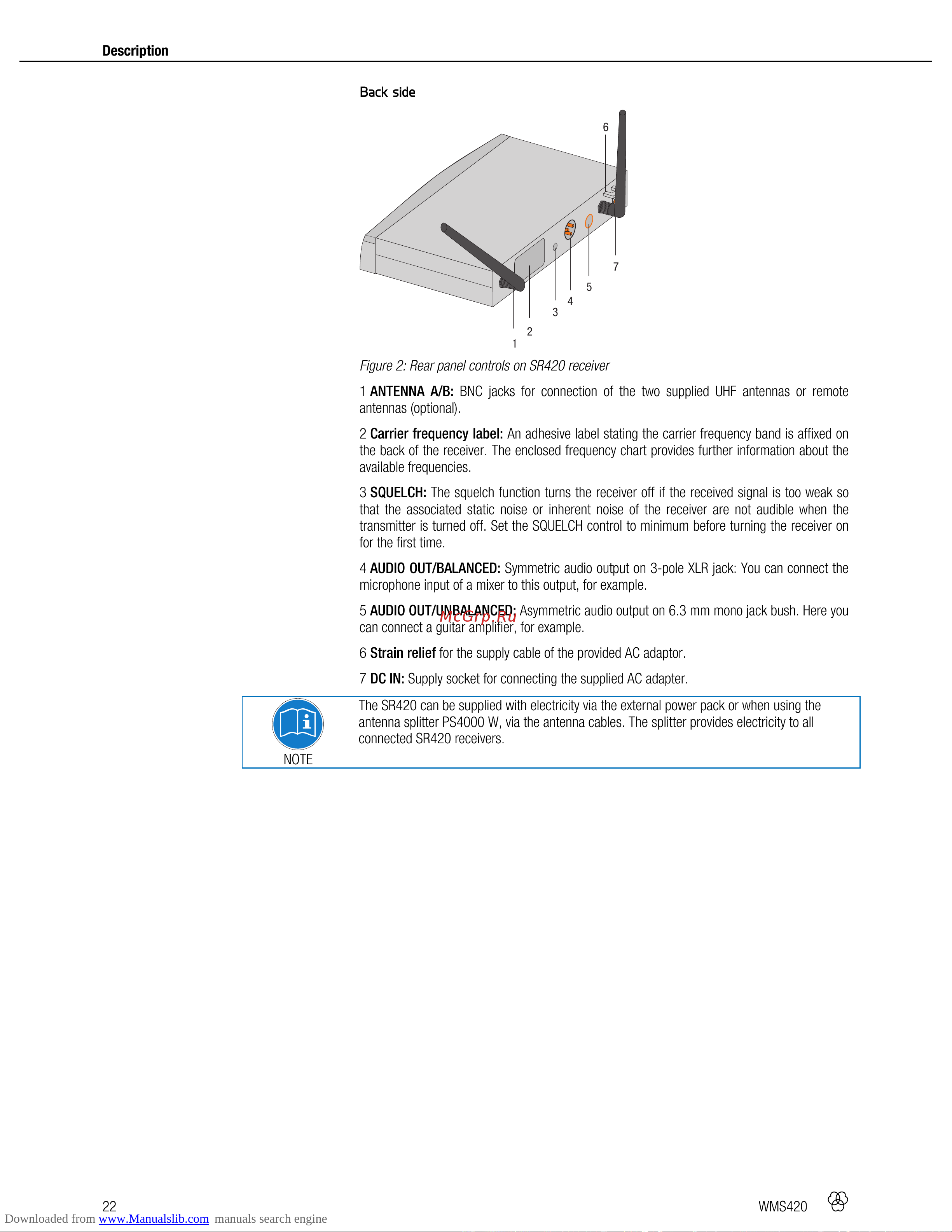

Figure 2: Rear panel controls on SR420 receiver

1 ANTENNA A/B: BNC jacks for connection of the two supplied UHF antennas or remote

antennas (optional).

2 Carrier frequency label: An adhesive label stating the carrier frequency band is affixed on

the back of the receiver. The enclosed frequency chart provides further information about the

available frequencies.

3 SQUELCH: The squelch function turns the receiver off if the received signal is too weak so

that the associated static noise or inherent noise of the receiver are not audible when the

transmitter is turned off. Set the SQUELCH control to minimum before turning the receiver on

for the first time.

4 AUDIO OUT/BALANCED: Symmetric audio output on 3-pole XLR jack: You can connect the

microphone input of a mixer to this output, for example.

5 AUDIO OUT/UNBALANCED: Asymmetric audio output on 6.3 mm mono jack bush. Here you

can connect a guitar amplifier, for example.

6 Strain relief for the supply cable of the provided AC adaptor.

7 DC IN: Supply socket for connecting the supplied AC adapter.

NOTE

The SR420 can be supplied with electricity via the external power pack or when using the

antenna splitter PS4000 W, via the antenna cables. The splitter provides electricity to all

connected SR420 receivers.
