Setting up

Connecting the microphone

1) Remove the battery compartment cover.

2) Connect the mini XLR plug on the cable of

your microphone to the audio input jack of the

pocket transmitter.

3) Turn the pocket transmitter on by setting the

ON/OFF switch to ”ON”.

4) Set the SQUELCH control on the receiver to

minimum and switch on the receiver.

5) Set the frequency on the transmitter and on the receiver to the same frequency.

6) Speak or sing into the microphone.

7) Adjust the GAIN control with the screwdriver integrated in the battery compartment cover

so that the CLIP-LED on the receiver lights up briefly at intervals.

8) Replace the battery compartment cover on the transmitter.

Connecting an instrument

1) Remove the battery compartment cover.

2) Plug the jack plug on the MKG L guitar cable into the output jack of your instrument and

the mini XLR connector on the guitar cable into the audio input socket of the pocket

transmitter.

3) Turn the pocket transmitter on by setting the on/off switch to "ON".

4) Set the SQUELCH control on the receiver to minimum and switch the receiver on.

5) Play your instrument.

6) Use the screwdriver integrated in the battery compartment cover to set the GAIN control

to a position where the CLIP LED on the receiver will flash occasionally.

7) Replace the battery compartment cover on the transmitter.

1) Move the transmitter around the area where you will use the system to check the area for

"dead spots", i.e. places where the field strength seems to drop and reception

deteriorates.

If you find any dead spots, try to eliminate them by repositioning the receiver. If this does

not help, avoid the dead spots.

2) If the RF OK LED on the receiver goes out, this means no signal is being received or the

squelch is active.

Switch the transmitter on, move closer to the receiver or adjust the squelch level to the

point where the green RF OK LED lights up.

3) If interference noise occurs, adjust the squelch level until the interference noise goes

away.

NOTE

Do not set the squelch level higher than necessary. The higher the squelch level, the lower the

sensitivity of the receiver and hence the smaller the range between transmitter and receiver.

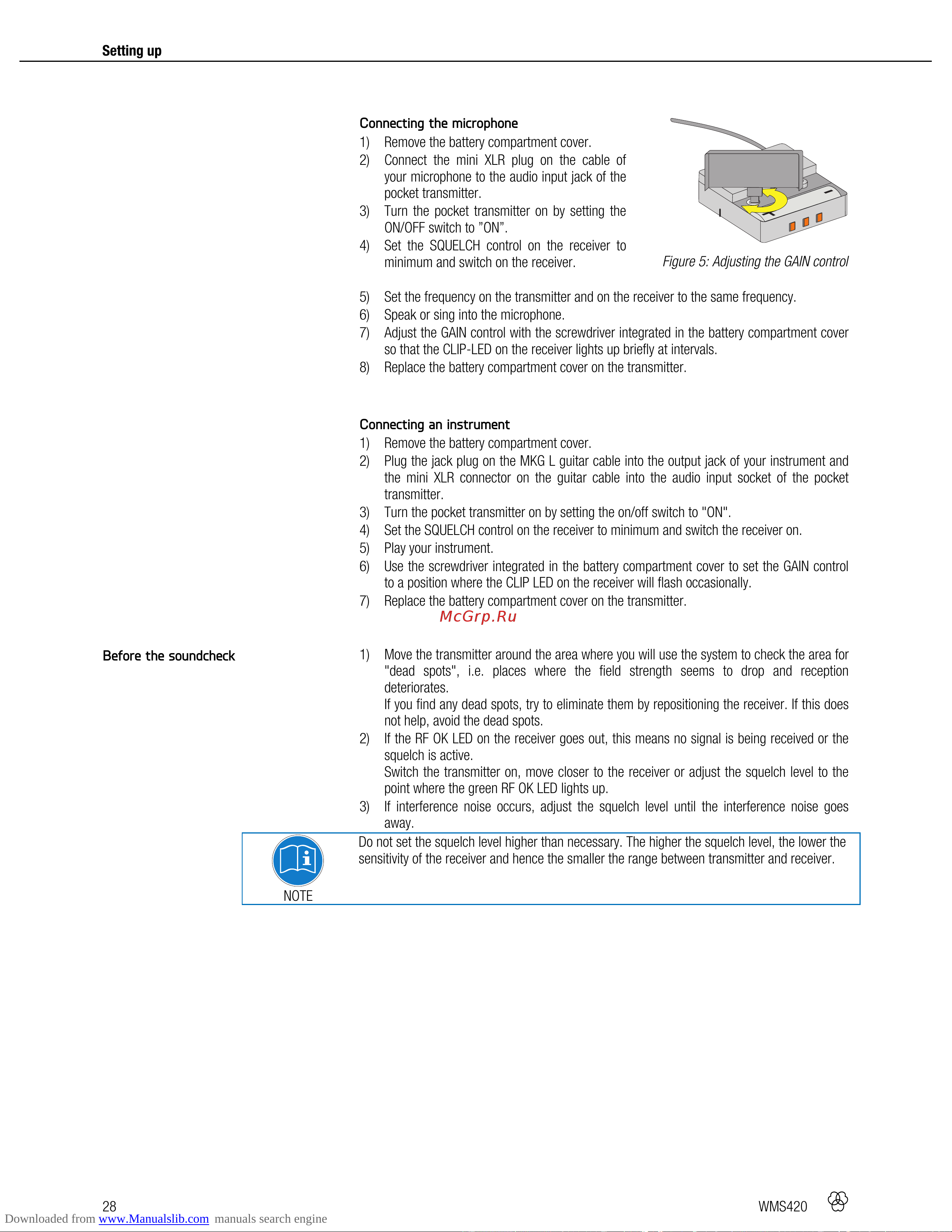

Figure 5: Adjusting the GAIN control

Before the soundcheck
