sitive in Sound_Active.

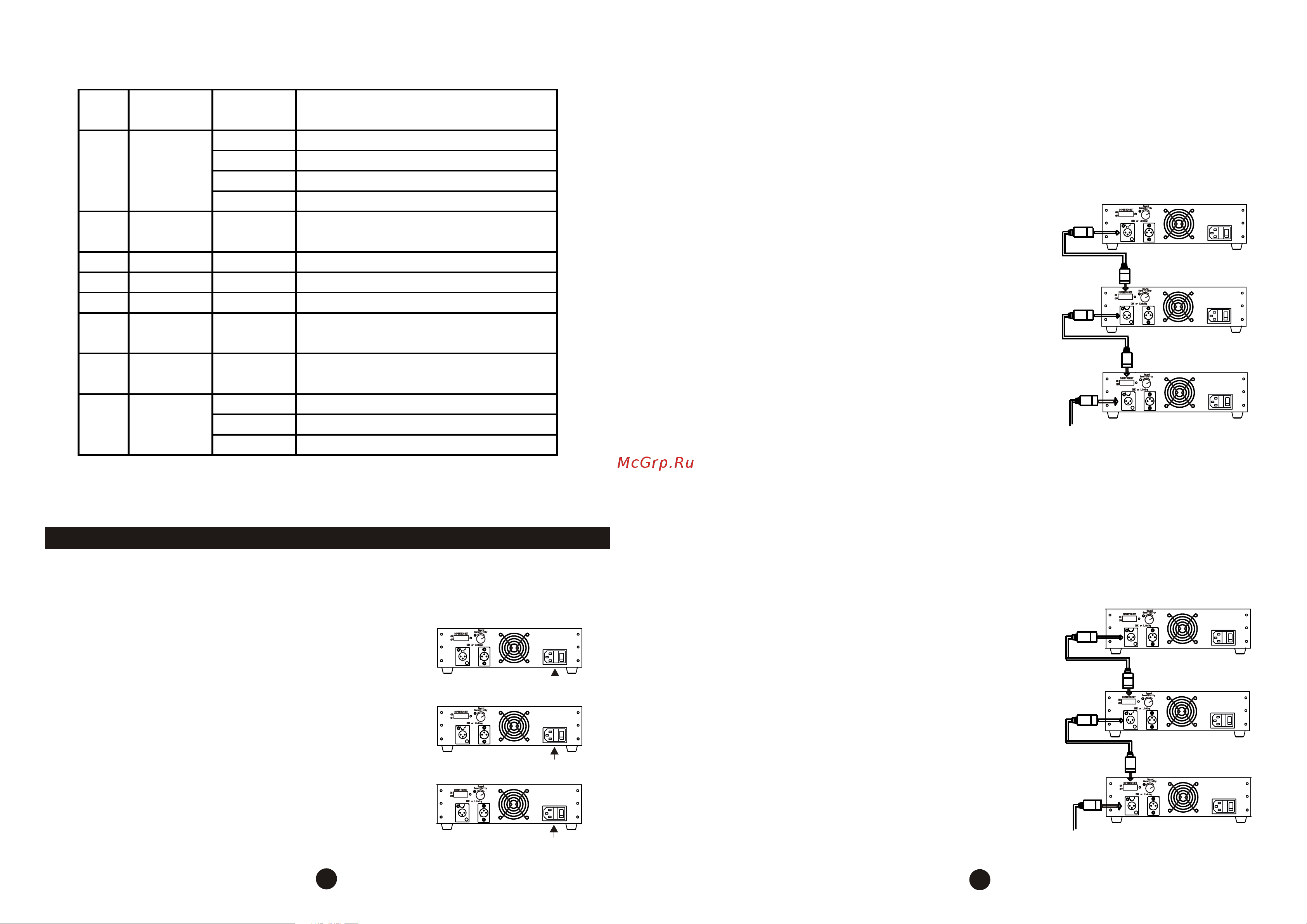

Master-Slave Operation (Master_Sound,Master_Auto):
This mode will allow you to link up to 32 units together without controller.
1. Use standard XLR microphone cable chain
your units together via the XLR connector
on the rear of the units. For longer cable
runs we suggest a terminator at the last
fixture.
2. Choose a unit to function as Master mode.
Turn dipswitches to the Master Position
on the unit. The unit must be first unit in
line. Then simply chain the units together
using XLR cable.
3. Turn switch to the Slave position on the slave units, and they will react
the same as the Master.
Universal DMX Control (DMX Mode):
This mode allows you to universal DMX-512 controller to control light's
operation or effect.
1. To control your fixture in DMX Mode.
2. Use standard XLR microphone cable chain
your units togethervia the XLR connector
on the rear of the units. For longer cable
runs we suggest a terminator at the last
fixture.
3. Assign a DMX address to the unit by follo-
wing the dipswitch chart.
4. Use DMX controller to control your units.
DMX control parameter
1: M A S TE R
5
4
Operation
Stand-Alone Operation (Sound_Active,Auto Mode):
This mode allows a single unit to run to the beat of the music, or the unit
will auto change in Auto Mode.
1. Set dipswitches position to Sound_Active or
Auto Mode.
2. The unit will react to the low frequencies of
music via the internal microphone in Sound_
Active mode, or the unit will auto change in
Auto Mode.
3. Use the audio sensitivity knob on the back
of the unit to make the unit more or less sen-
AC 220V FUSE 2AAC 220V FUSE 2A
Pow e r
N: S O U N D/ A U T O /R E M O T E
2: S O U N D/ A U T O /R E M O T E
Pow e r
Pow e r
1: S O U N D/ A U T O /R E M O T E
AC 220V FUSE 2AAC 220V FUSE 2A
AC 220V FUSE 2AAC 220V FUSE 2A
N: S L A VE
2: S L A VE
AC 220V FUSE 2AAC 220V FUSE 2A
AC 220V FUSE 2AAC 220V FUSE 2A
AC 220V FUSE 2AAC 220V FUSE 2A
1: D M X
N: D M X
2: D M X
AC 220V FUSE 2AAC 220V FUSE 2A
AC 220V FUSE 2AAC 220V FUSE 2A
AC 220V FUSE 2AAC 220V FUSE 2A
0～10
11～120
121～250
251～255
CH3
POSITION-X
0～255
CH4
POSITION-Y
0～255
CH5
SCAN SPEED
0～255
0～100
101～200
201～255
SOUND ACTIVE
Channel Function
PATTERN
SELECTION
CH2 0～255
Description
DYNAMIC PATTERNS
Value
NUM N STATIC STATE/ DYNAMIC PATTERNS
CLOSED，LASEER AND SCANNEER STOP WORKING
DYNAMIC
PATTERNS PLAY
SPEED
STATIC
PATTERNS
PATTERN SIZE
0～255 0 IS SMALL，255 IS BIG
CH7
CH8
GREEN + RED
GREEN
RED
COLOR
0～255
0 IS SPEEDY, 255 IS SLOW
ADJUST POSITION-Y
STATIC PATTERNS
CH1 MODE
0 IS SPEEDY, 255 IS SLOW
CH6
ADJUST POSITION-X
NOTE:
40 dynamic patterns and 40 static patterns, some static patterns can
adjust size,All the dynamic patterns can not adjust size.
PY-S241897
