Involight MovingBAR2409 [2/10] Dmx led linear beam bar

DMX LED Linear Beam Bar

User Manual

Please read the manual before operation

A. SPECIFICATION

1. Voltage: AC 100V-240V, 50Hz/60Hz

2. Power consumption: 72W

3. LED: 8*9W Cool White

4. Beam angle: 3°

5. DMX channels: 1,12,16CH

6. Operation mode: LCD display

7. Working temperature: -10℃~40℃

8. Dimension: 1065*95*177mm

9. Net weight: 8.7 kgs

10. DMX linking: 30pcs

11. Power linking: 5pcs/110V, 10pcs/240V

12. Lumen:

16500lux@2m

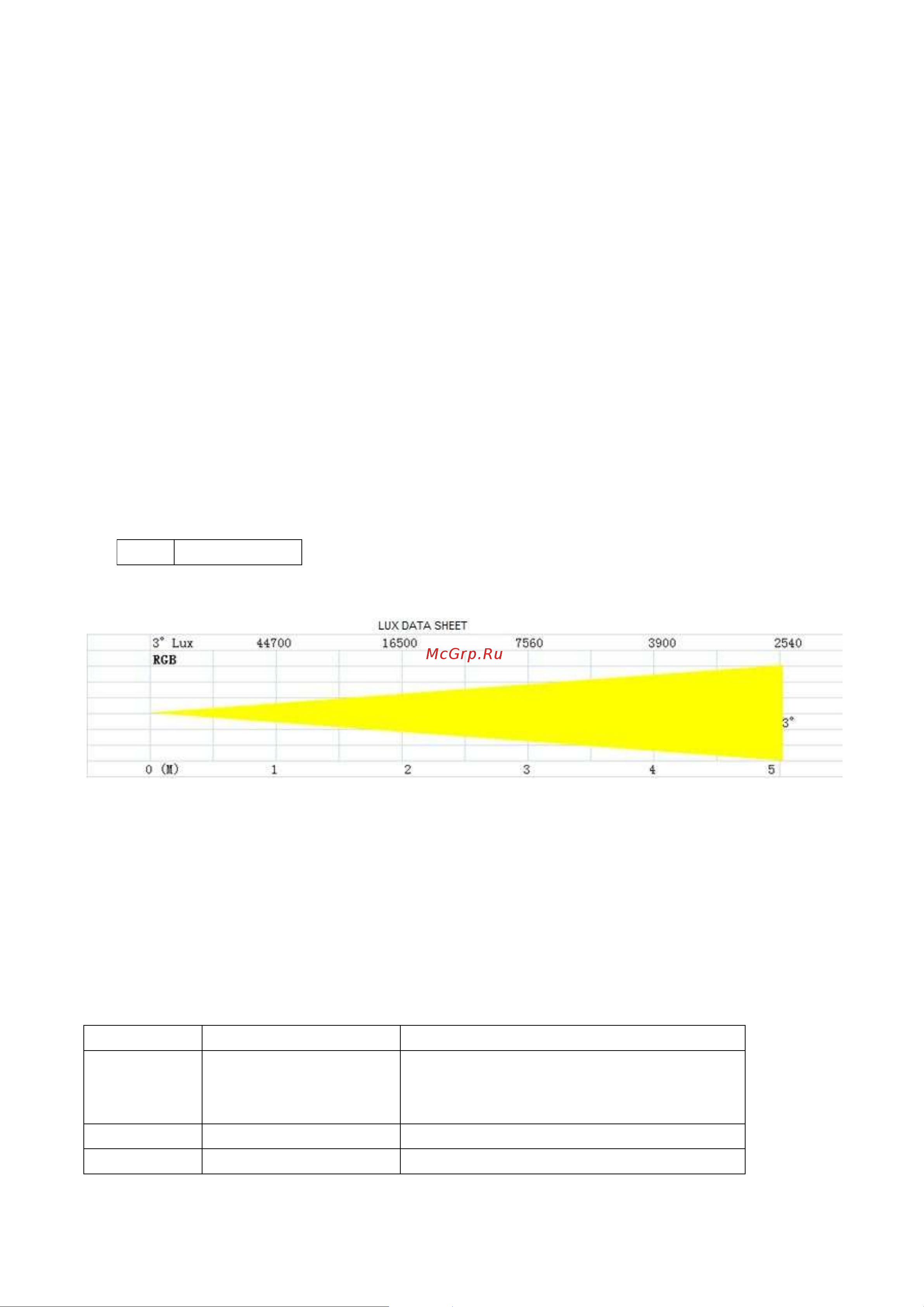

B. Photometric Chart

C. OPERATION

This fixture has five working modes, press the “MODE” button can switch the modes.

 Built-in programs

 Auto running

 DMX mode

 Master/slave

 Sound-active

D. Button function

Button

Function

Description

MODE

return to the last menu

In main menu, press to enter next mode;

In submenu, press to return to last menu

SETUP

enter the next menu

In parameter setting, press to add one
