Ⅴ, set 17 channels

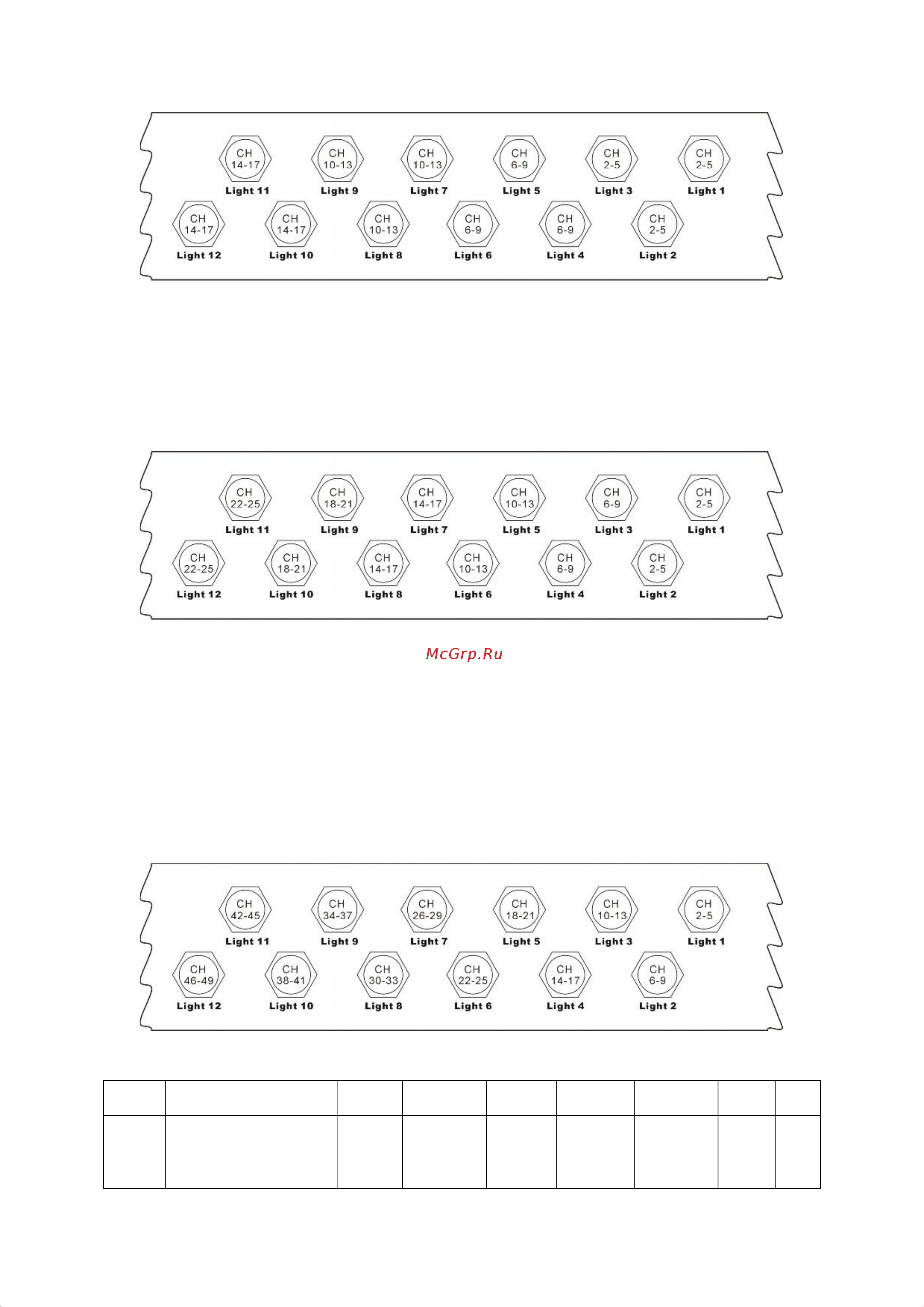

the dimmer occupies the first channel, light1-light2 occupy CH2(flash), Ch3(R), Ch4(G), Ch5(B);

light3-light4 occupy CH6(flash), Ch7(R), Ch8(G), Ch9(B); light5-light6 occupy CH10(flash),

Ch11(R), Ch12(G), Ch13(B); light7-light8 occupy CH14(flash), Ch15(R), Ch16(G), Ch17(B);

light9-light10 occupy CH18(flash), Ch19(R), Ch20(G), Ch21(B); light11-light12 occupy

CH22(flash), Ch23(R), Ch24(G), Ch25(B);

Ⅵ, set 49 channels

the dimmer occupies the first channel, light1 occupies CH2(flash), Ch3(R), Ch4(G), Ch5(B);

light2 occupies CH6(flash), Ch7(R), Ch8(G), Ch9(B); light3 occupies CH10(flash), Ch11(R),

Ch12(G), Ch13(B); light4 occupies CH14(flash), Ch15(R), Ch16(G), Ch17(B); light5 occupies

CH18(flash), Ch19(R), Ch20(G), Ch21(B); light6 occupies CH22(flash), Ch23(R), Ch24(G),

Ch25(B); light7 occupies CH26(flash), Ch27(R), Ch28(G), Ch29(B); light8 occupies CH30(flash),

Ch31(R), Ch32(G), Ch33(B); light9 occupies CH34(flash), Ch35(R), Ch36(G), Ch37(B); light10

occupies CH38(flash), Ch39(R), Ch40(G), Ch41(B); light11 occupies CH42(flash), Ch43(R),

Ch44(G), Ch45(B); light12 occupies CH46(flash), Ch47(R), Ch48(G), Ch49(B).

③, For example, set 9 channels, the protocol as follows:

CH1 CH2 CH3 CH4 CH5 CH6

CH7 CH8 CH9

0~250

dimmin

0~10

NOTHING

11~255

R 1 G 1 B 1

0~10

NOTHING

11~255

R2 G2 B2
