6CH LCD DIMMER PACK WITH SHUCKO

Thanks for purchasing 6CH LCD dimmer pack. This controller is 6-channel

dimmer pack with shucko socket. It can work alone or used as a DMX pack, as

well controlled by analog signal. When it works stand alone, there are 12

built-in program can be chosen, the speed can be adjusted When work as DMX

pack, it can be controlled by 1 to 6 channels, by address is between 001 to 512.

When it is under analog signal, it can be controlled by 6 channels signal in DC

0-10V The dimming is various in SWITCH, LINEAR, SQUARE As well, it has

the function of pre-heating, circuit brake protection, phase compensation, DMX

M/S, etc…Before operation, please carefully read this manual first. Thanks!

Parameter：

POWER SUPPLY----------------------------- SINGLE PHASE AC 220V 50-60HZ

3-PHASEAC 220V 50-60HZ

LOAD-------------------------------------------------------------------MAX：6*10A/CH

DMX OUTPUT------------------------------------------------3PIN female XLR socket

DMX INPUT-----------------------------------------------------3PIN male XLR socket

ANALOGUE INPUTS----------------------------------------DC 0-10V 8PIN D socket

DIMENSIONS------------------------------------------------------482mmX40mmX90mm

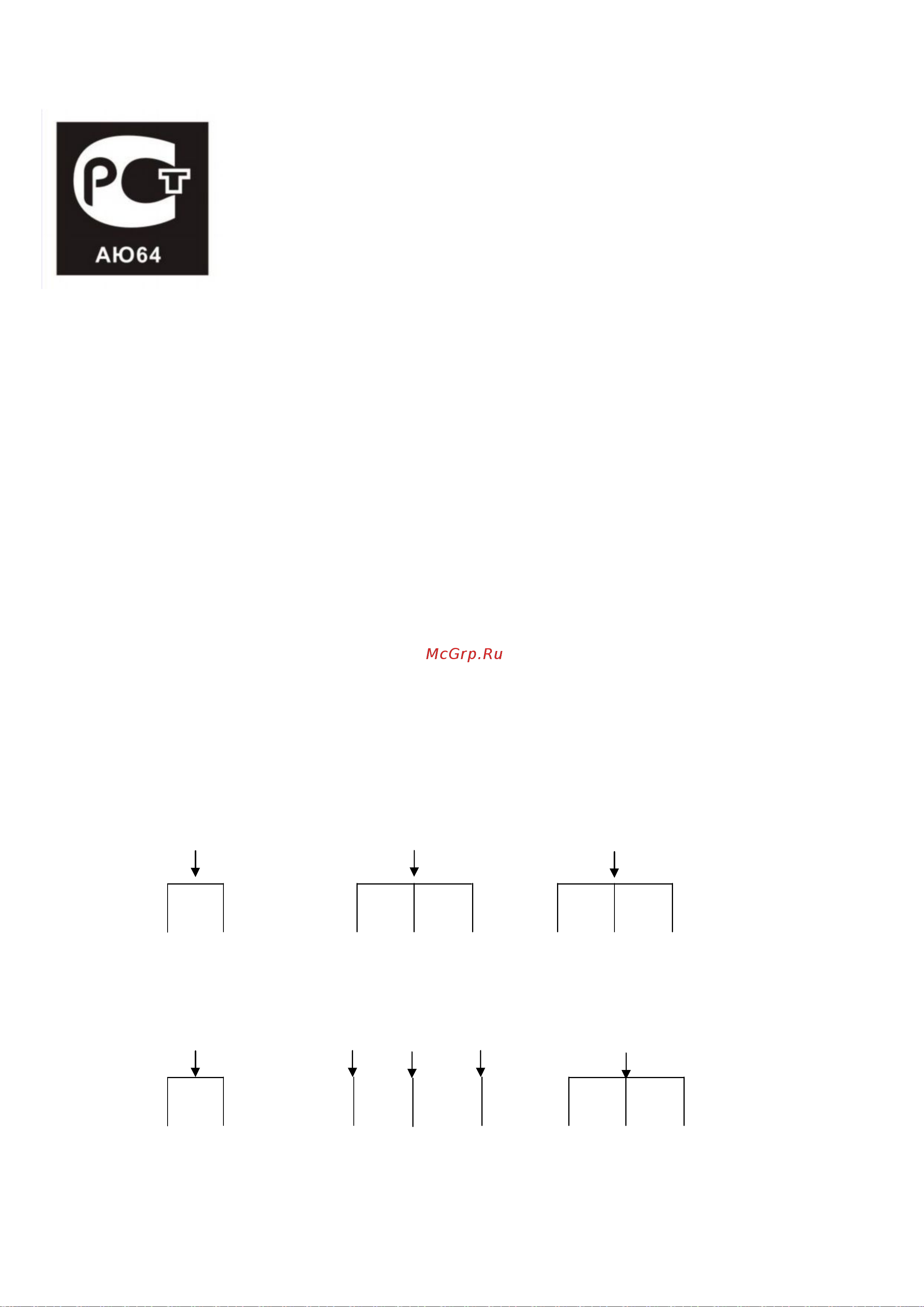

THE POWER SUPPLY ON-LINE DIAGRAM：

SINGLE PHASE AC220V 50-60HZ：

E L N

E E L3 L2 L1 N N N

3-PHASE AC220V 50-60HZ：

E L3 L2 L1 N

E E L3 L2 L1 N N N
