Connections
*Before connecting or disconnecting any patch cords, be sure all the volume controls in your
system are set to minimum. This will help prevent any damage to system components.
* To prevent malfunction and/or damage to speakers or other devices, always turn down the vol-
ume, and turn off the power on all devices before making any connections.
* If there are batteries in the unit while an AC adaptor is being used, normal operation will con-
tinue should the line voltage be interrupted (power blackout or power cord disconnection).

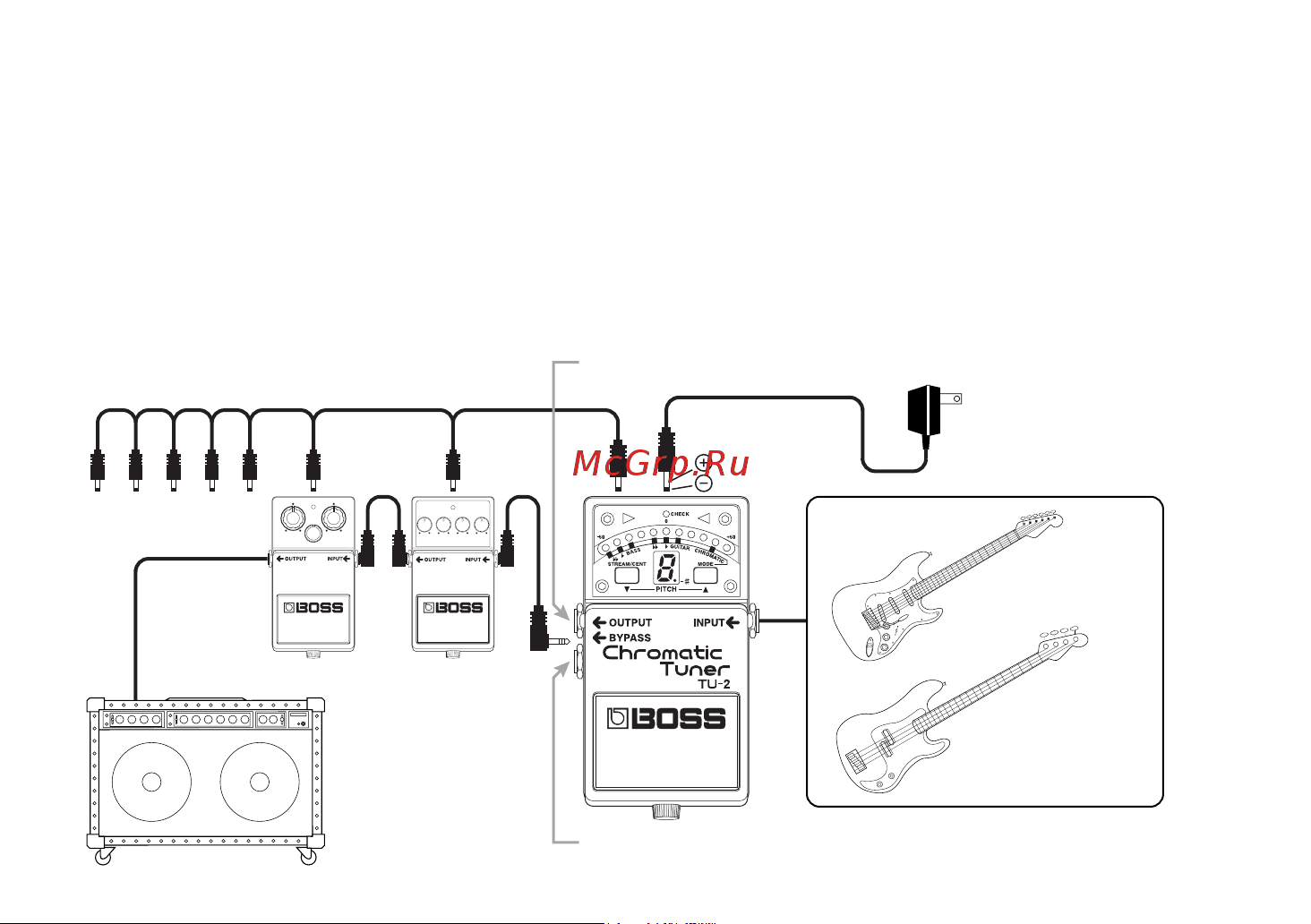

Electric Guitar
AC Adaptor
(PSA-Series: optional)
OUT DC 9V
Parallel DC cord (PCS-20A: optional)
Boss compact other
effect units
(BYPASS) If you want to be heard while tuning
(OUTPUT) If you do not want to be heard while tuning
Amplifier
Electric Bass
