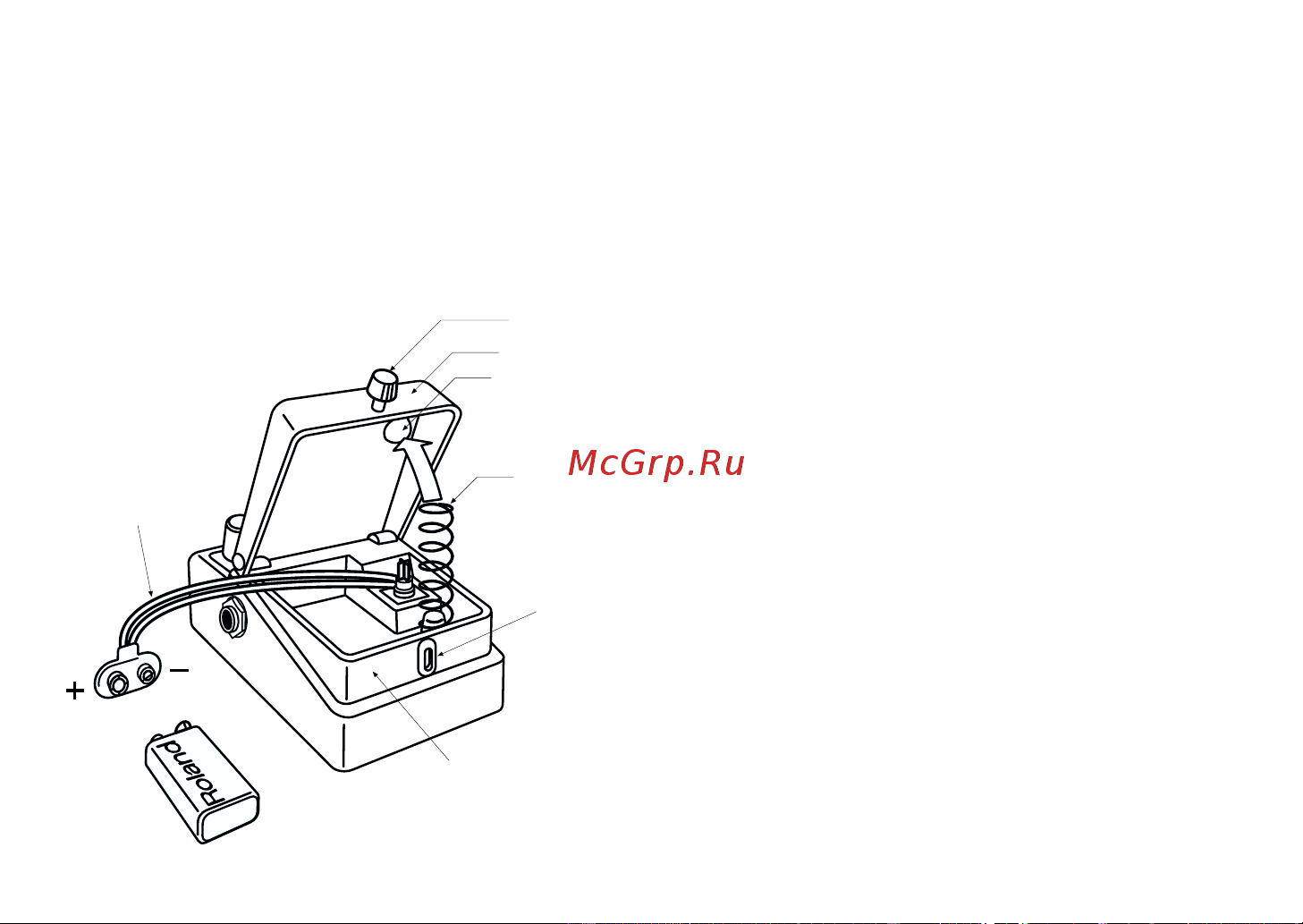

Boss GEB-7 Bass Equalizer [10/16] Changing the battery

Thumbscrew

Pedal

Spring Base

Coil Spring

Guide

Bush

Hole

Battery

Housing

Battery Snap Cord

Battery Snap

9V Battery

CHANGING THE BATTERY

When the indicator goes dim or no longer lights

while an effect is on, it means that the battery is

nearly dead and must be replaced.

Replace the battery following the steps below.

1. Loosen the thumbscrew at the front of the

pedal, then lift the pedal upwards to open the

unit.

* The thumbscrew can be left in the pedal

while changing the battery.

2. Remove the old battery from the battery

housing, and remove the snap cord con-

nected to it.

3. Connect the snap cord to the new battery, and

place the battery inside the battery housing.

* Be sure to carefully observe the battery+s

polarity (+ versus -).

4. Slip the coil spring onto the spring base on the

back of the pedal, then close the pedal.

* Carefully avoid getting the snap cord caught

in the coil spring.

5. Finally, insert the thumbscrew into the guide

bush hole and fasten it securely.
