Installation

For optimal performance of the BX8a, please read the following thoroughly and carefully prior to

installation.

Precautions

Handling: Please do not touch the speaker cones. The BX8a set is packaged in the box tightly, so your

attention is required when taking the monitors out of the box. To avoid possible damage to the speaker

units, hold both sides of the monitor in order to pull it out of the box. The speaker cones should not be

touched in order to avoid damage even after they are out of the box.

Correct Power Operation: Since the BX8a contains its own ampliﬁer, it must be connected to a power

outlet using the detachable AC cable provided. Before connecting power, please make sure that the

Voltage-Select Switch located on the speaker’s rear panel is set to the appropriate position, as described

in the rear-panel features list appearing earlier in this manual.

WARNING! - Use of improper Voltage-Select Switch combinations may result in hazardous

conditions and/or damage to speaker components not covered by speaker warranty.

Connections: You can connect either an XLR balanced cable or TRS balanced/unbalanced cable from the

input of each BX8a to your corresponding preamp, computer or game console outputs. We recommend

that you use high-quality balanced or unbalanced cables for input connections. Also, ALWAYS turn off the

power of the BX8a and turn the volume of the BX8a down to a minimum before making the necessary

connections.

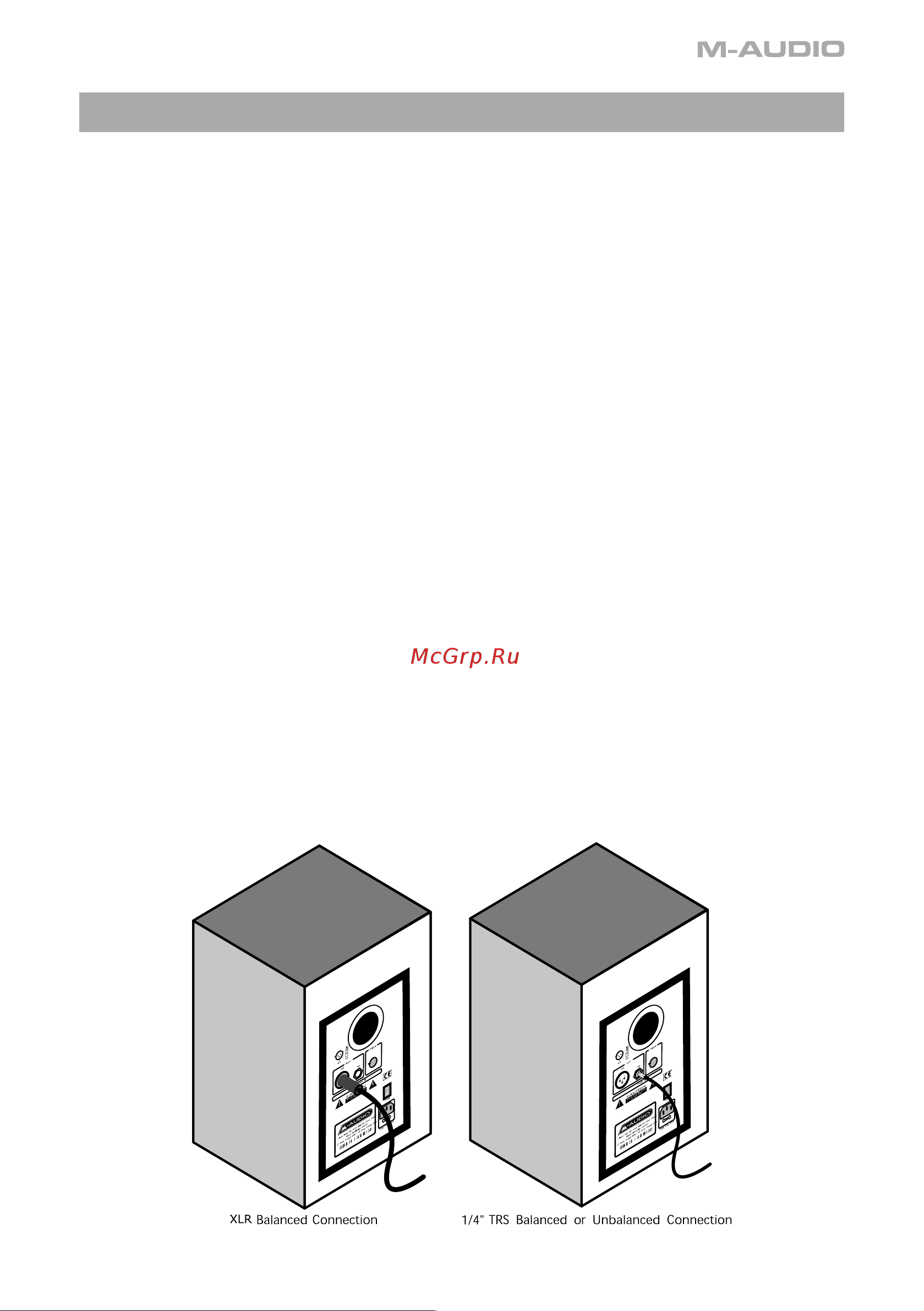

XLR Balanced Connection

Assure that the power switch of the BX8a is turned off and that the volume control of the BX8a is turned

down to a minimum. Connect the male end of an XLR balanced cable to the balanced input of the BX8a

(refer to the following diagram for balanced connection).

TRS Balanced/Unbalanced Connection

Assure that the power switch of the BX8a is turned to off and that the volume control of the BX8a is turned

down to a minimum. Connect the male end of a TRS balanced or TS unbalanced cable to the TRS input of

the BX8a (refer to the following diagram for TRS connection).
