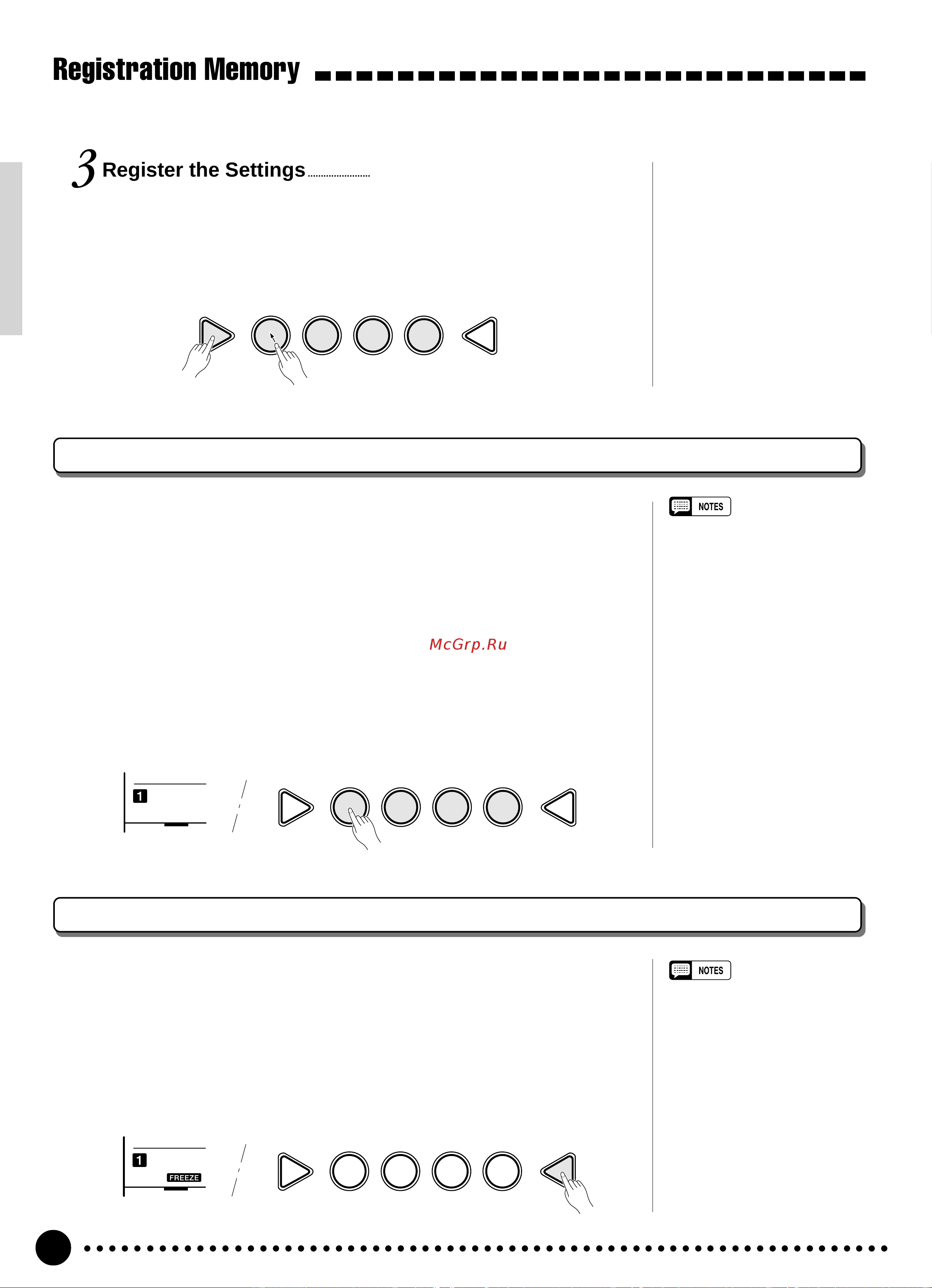

34
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
Registration Memory
3
Register the Settings..........................................................................................................................
While holding the [MEMORIZE] button, press one of the REGISTRA-
TION MEMORY buttons. Any data that was previously in the selected loca-
tion is erased and replaced by the new settings. The corresponding Registra-
tion Memory number will appear above “REGIST” in the display.
MEMORIZE
12 34
ACCOMP
FREEZE
REGISTRATION MEMORY
The Accomp Freeze Function
When the ACCOMP FREEZE function is engaged, the accompaniment pa-
rameters listed above will not be changed when a REGISTRATION MEMORY
is recalled. This allows you to recall different REGISTRATION MEMORY
settings while using Auto Accompaniment, without suddenly disturbing the
flow of the accompaniment. The ACCOMP FREEZE function is turned on and
off by pressing the [ACCOMP FREEZE] button. The “FREEZE” indicator
appears in the “REGIST” area in the display when it is turned on.
• Accomp Freeze remains on even
if a different registration bank is
selected.
• When you recall the REGISTRA-
TION MEMORY settings while
song recording or playback, only
the voice parameter settings can
be recalled even if the ACCOMP
FREEZE function is turned off.
MEMORIZE
12 34
ACCOMP
FREEZE
REGISTRATION MEMORY
REGIST
Recall the Registered Panel Settings
• Music Cartridge registration
settings can be recalled in the
same way — see page 48.
• If the Accomp Freeze function is
on when a REGISTRATION
MEMORY is recalled, the regis-
tration number will flash.
• Registration bank 01 can be
instantly recalled by simultane-
ously pressing the [–/NO] and [+/
YES] buttons.
Simply select the appropriate bank as described above, then press the de-
sired REGISTRATION MEMORY button at any time to recall the memorized
settings. The corresponding Registration Memory number will appear above
“REGIST” in the display, and the appropriate setting changes will appear in the
display.
The indicator of the selected REGISTRATION MEMORY will flash as
soon as any change is made to the panel settings. In other words, if the REGIS-
TRATION MEMORY indicator is flashing, the current panel settings are differ-
ent from those stored in the memory.
No REGISTRATION MEMORY indicator will be showing when the PSR-
320/420 is turned on or when a bank is selected.
MEMORIZE
12 34
ACCOMP
FREEZE
REGISTRATION MEMORY
REGIST
