Funai DP170FX4 [7/23] Connection to a tv
![Funai DP170FX4 [7/23] Connection to a tv](/views2/1099447/page7/bg7.png)
–
7
–
EN
SETUP
Supplied cables used in this connection are as follows:
• Audio cable (L/R) × 1
• Video cable × 1
Please purchase the rest of the necessary cables at your local store.
Note:
• Connect this unit directly to your TV.
If Audio / Video cables are connected to a VCR, pictures may be distorted due to the copy protection system.
If your TV is compatible with 525 (480) progressive scanning and you want to enjoy that high quality picture;
You must select the connection COMPONENT VIDEO OUT above and progressive scanning mode. To set the mode, set “Progressive”
to “On” in “SYSTEM” menu. Refer to pages 16 for more details.
• When “Progressive” is “On”, video signals from the unit’s VIDEO OUT jack will be distorted or not be output at all.
•
When you make a selection, the TV monitor temporarily goes blank and then comes back again.
If it does not, press and hold [ B (PLAY) ] on the front panel for 5 seconds to change the setting of the resolution back to its default
.
If your TV is not compatible with progressive scanning;
Use this unit in interlace mode and set “Progressive” to “Off” in “SYSTEM” menu or by pressing and holding [
B (PLAY)
] on the front
of the unit for more than 5 seconds.
After connecting to your TV:
You will need to find the viewing channel (external input channel) on your TV.
Please refer to your TV’s owner’s manual for details.

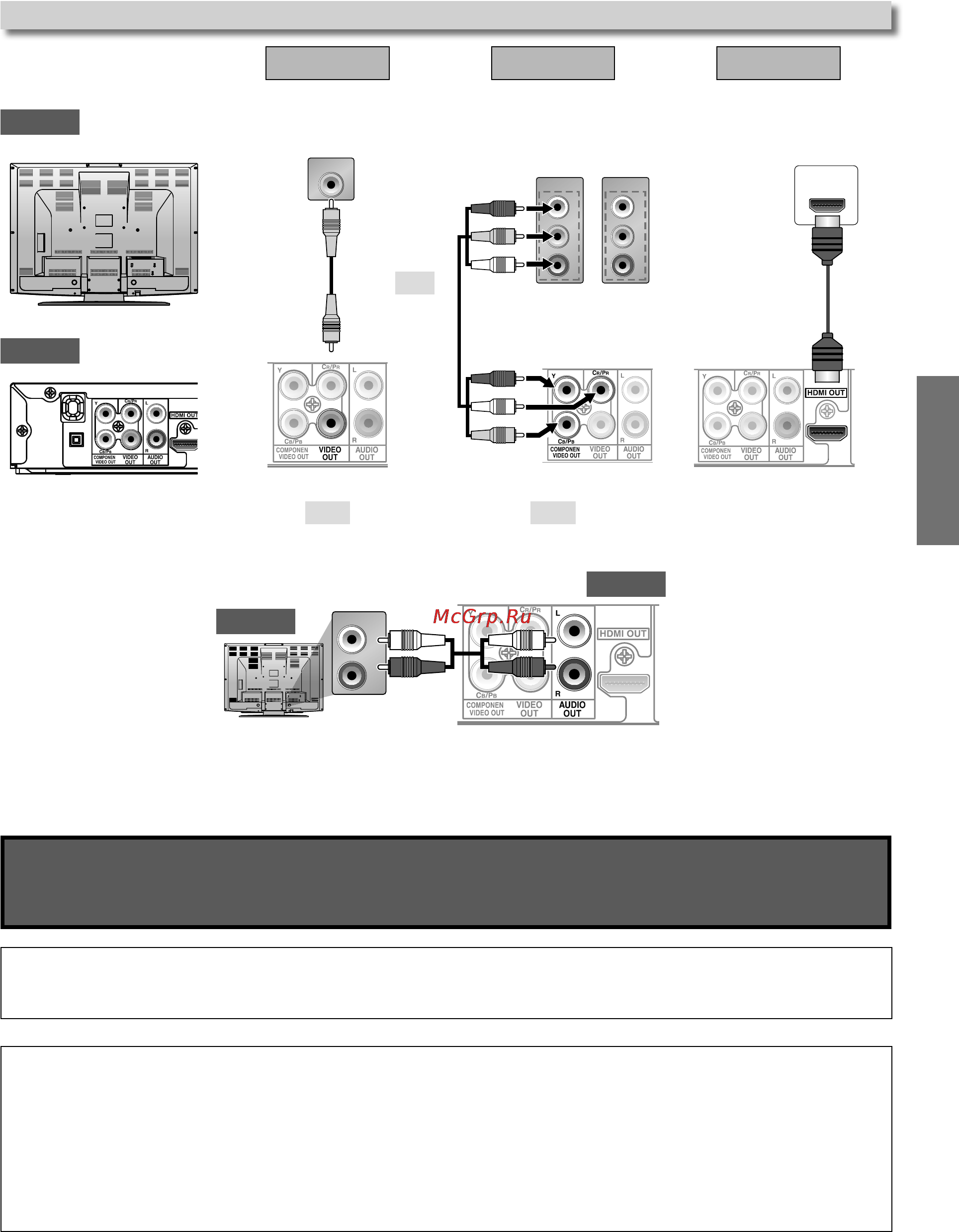

Connection to a TV
Method 1
Method 2* Method 3
standard picture better picture best audio / picture
VIDEO OUT COMPONENT VIDEO OUT HDMI OUT
VIDEO IN
COMPONENT
VIDEO IN
COMPONENT
VIDEO IN
or
P
R
Y
P
B
C
R
Y
C
B
HDMI IN
and and
AUDIO OUT
(Analog Audio)
AUDIO IN
L
R
* This unit is compatible with the progressive scan system. The feature provides you with the higher quality pictures than traditional
output system does. To utilize this feature, a component connection is required. Refer to “Resolution” setting on page 16 or
“ Progressive ” setting on page 16 to set the video resolution.
or
Video cable
(supplied)
Component video cable
(not supplied)
HDMI cable
(not supplied)
Audio cable
(supplied)
This unit
This unit
TV
TV
