Liebherr TPesf 1714 Comfort [5/10] Putting into operation

Align the appliance so that it

stands firmly and on a level by

applying the accompanying

spanner to the adjustable-

height feet (A) and using a

spirit level.

Note

Clean the appliance (see 6.2) .

If the appliance is installed in a very damp environment,

condensate may form on the outside of the appliance.

Always see to good ventilation at the installation site.

4.3 Changing over the door hinge*

You can change over the door hinges if necessary.

Make sure that the following tools are at hand:

Torx® 25

Torx® 15

Supplied open-ended wrench

If necessary, a second person to assist with installation

CAUTION

Risk of injury if the door tips!

Take good hold of the door.

Set down the door carefully.

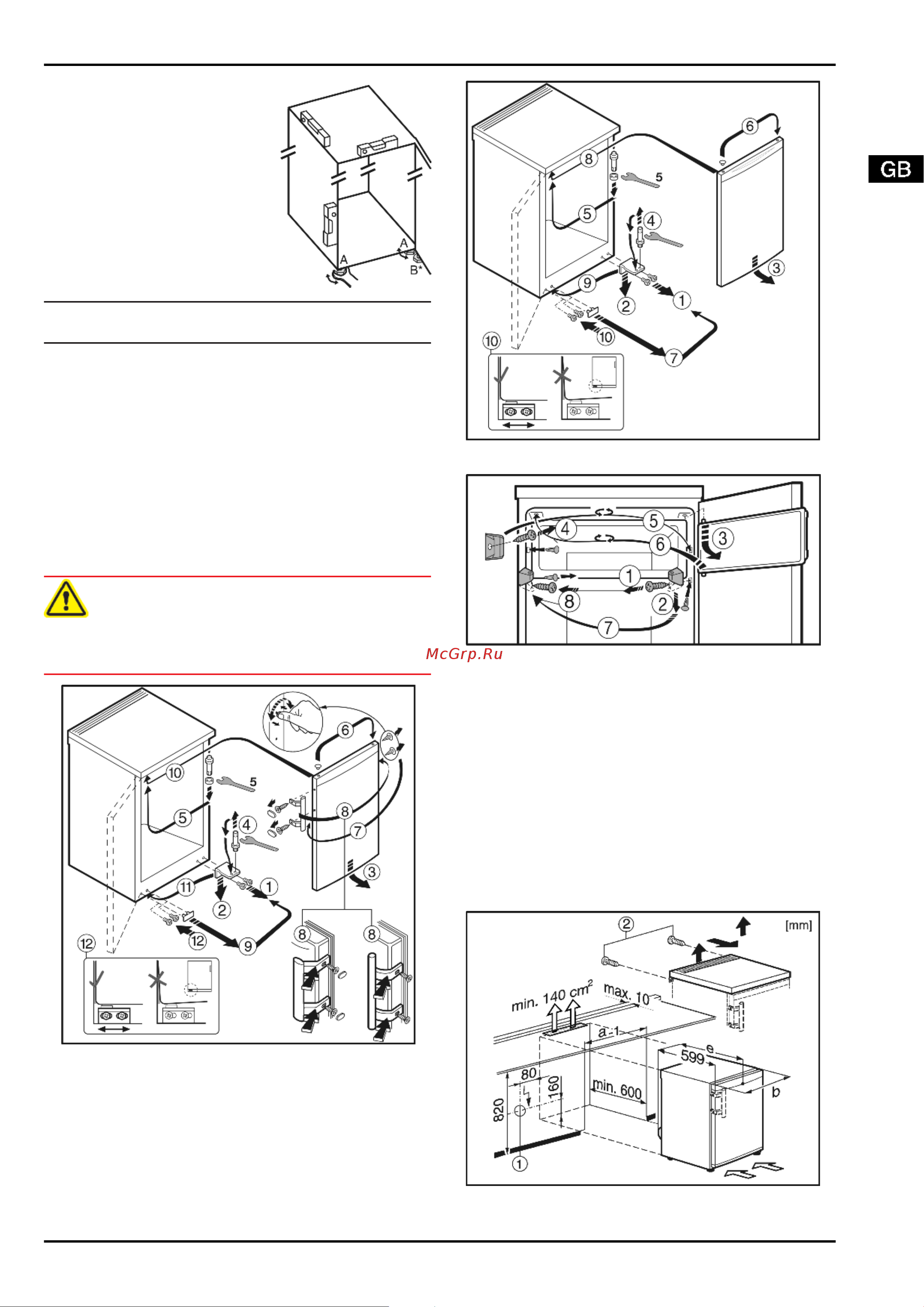

Fig. 4 On appliances with a door handle

Fig. 5 On appliances without a door handle

Fig. 6 On appliances with a freezer compartment

Follow the sequence of the item numbers in the diagram.

4.4 Undercounter installation

Counter height appliances up to 850 mm in height can be

installed below the worktop. In the case of continuous work-

tops, the cover on the refrigerator can be removed and the

appliance slid in under the worktop.

With such installations, the plug

Fig. 7 (1)

must not be located

behind the appliance and must be easily accessible.

For the purpose of ventilation and aeration at the rear of the

appliance, a min.140 cm

ventilation cavity is required. With an

installation depth of 600 mm, the wall connection profile on the

worktop must not exceed a max. 10 mmin depth.

Fig. 7

Putting into operation
