Kuppersbusch EDG 6550.0 J2 [30/32] Einbau installation

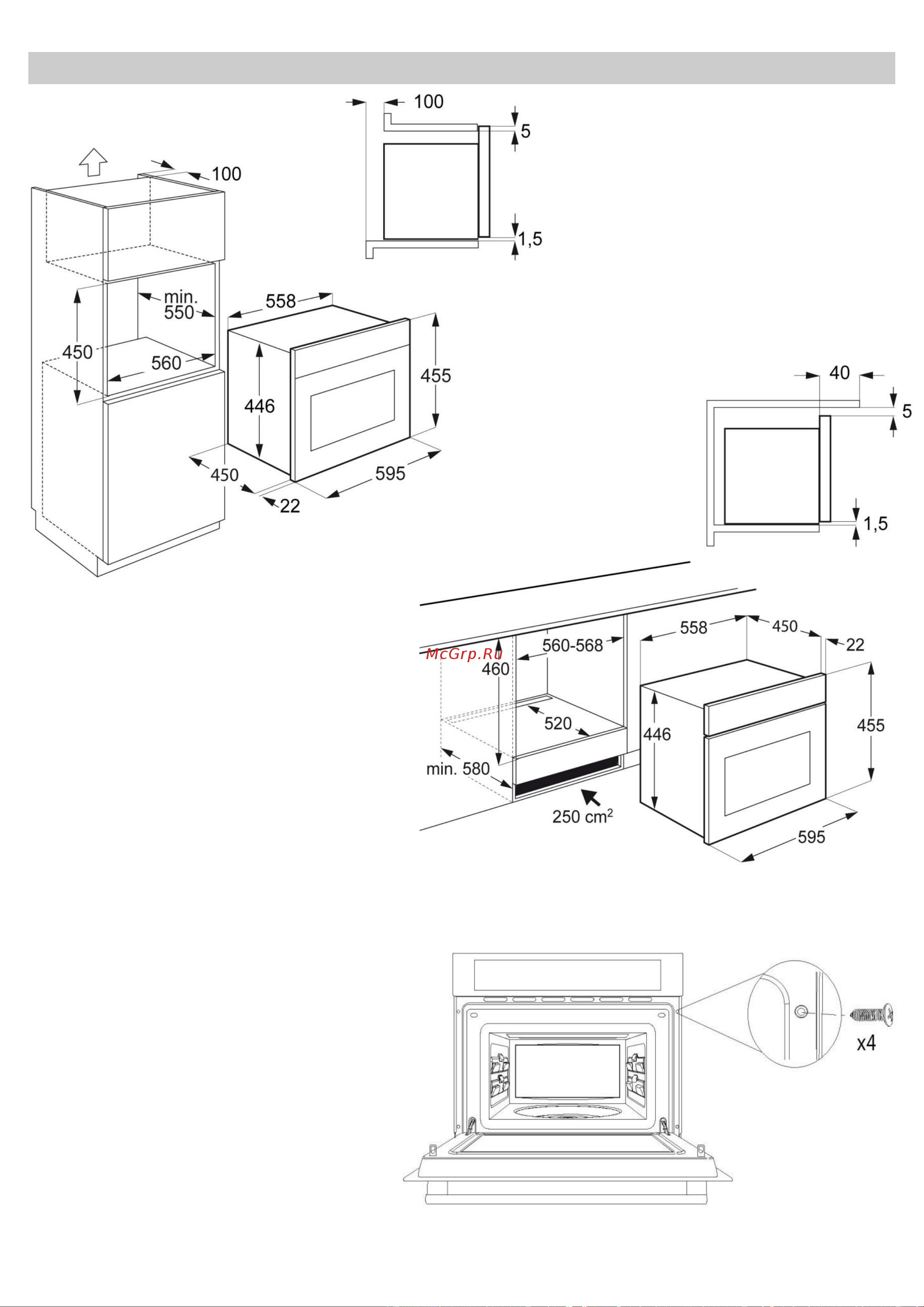

Einbau / Installation

1. Den Dampfgarer in die Nische

einschieben und entsprechend

anpassen.

2. Die Tür der öffnen und das Gerät mit

den vier mitgelieferten Schrauben am

Küchenmöbel wie im Bild dargestellt

befestigen.

1. Push oven completely into the cabinet

and centre it.

2. Open door and fasten the appliance to

the cabinet using the four screws

provided. Insert the screws through the

front holes.
