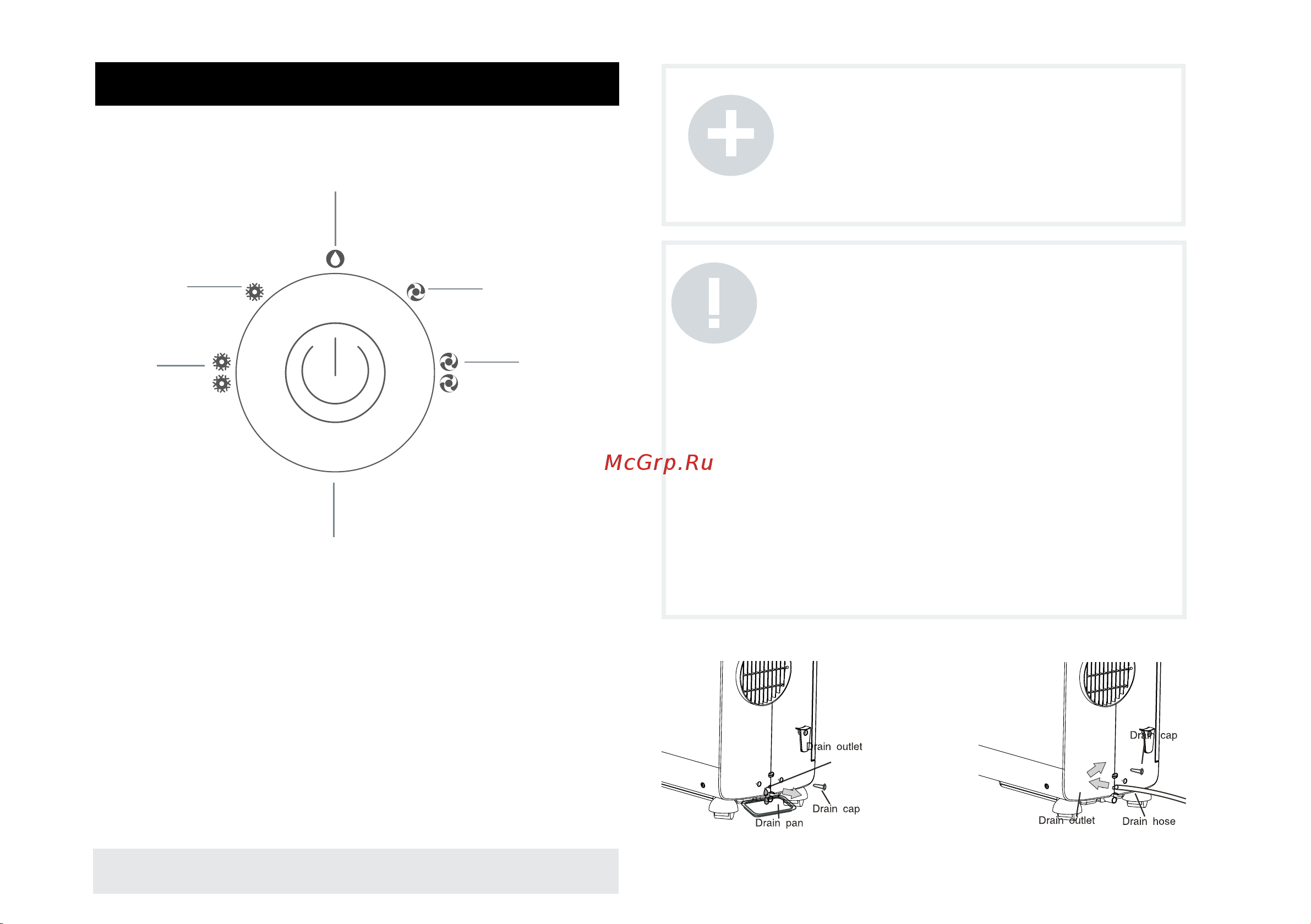

CONTROL PANEL & DESCRIPTION OF FUNCTION

7. OPERATING MODES

NOTICE:

Never turn the air conditioner off by unplugging

from the mains. Always press the button 1,

then wait for a few minutes before unplugging.

This allows the appliance to perform a cycle of

checks to verify operation.

1. Power button. Press this button to switch on or off the unit

2. Light of high cooling. The appliance will work in cooling mode with

high fan speed.

3. Light of low cooling. The appliance will work in cooling mode with

low fan speed.

4. Light of alarm

5. Light of low fan speed. The appliance will work in low fan speed.

6. Light of high fan speed. The appliance will work in high fan speed.

ATTENTION!

The unit can evaporate condensed water and

automatically drain it through the hose*.

When the unit is in cooling mode, it is not necessary

to install the condensate drainage pipe since

condensate evaporates automatically. Make sure

that when the unit is operating, the rubber plug of

the drainage hose is securely fixed.

Disconnect the air outlet hose, connect the

drainage hose to the drainage hole and drain water

from the unit to ensure maximum dehumidification

efficiency.

When drain hose not attached water collects in the

tank for condensate. When the tank is filled on the

LCD display shows the E4.

To resume the operation, remove the rubber plug of

the drainage hose to drain water at first. After water

is drained…
