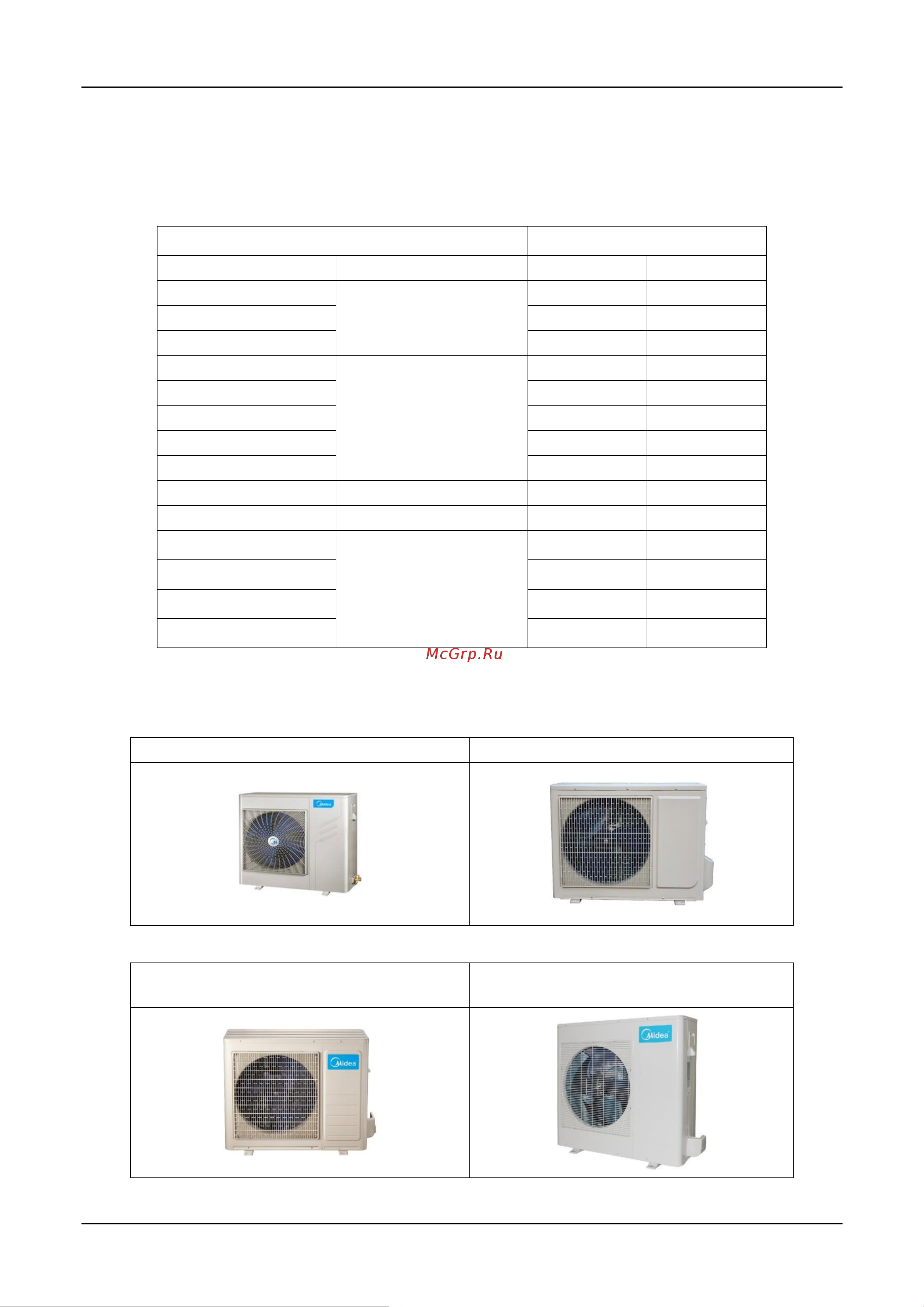

Midea R410A 50Hz T1 Compressor Condensing Unit
4
1. Product lineup
Model names of units with cooling only:
Outdoor unit
Cooling capacity
Model
Power supply
W
Btu/h
MCCU-03CN1
220-240V~, 1Ph, 50Hz
3,200
10,920
MCCU-05CN1
5,300
18,080
MCCU-07CN1
7,100
24,230
MCCU-10CN1
380-415V~, 3Ph, 50Hz
10,500
35,830
MCCU-12CN1
14,000
47,770
MCCU-16CN1
16,000
54,590
MCCU-22CN1
22,000
75,060
MCCU-28CN1
28,000
95,540
MCCU-35CN1
380-400V~,3Ph, 50Hz
35,000
119,420
MCCU-45CN1
380-415V~, 3Ph, 50Hz
45,000
153,540
MCCU-53CN1
380-400V~,3Ph, 50Hz
53,000
180,840
MCCU-61CN1
61,000
208,130
MCCU-70CN1
70,000
238,840
MCCU-105CN1
105,000
358,260
2. External Appearance
MCCU-03CN1
MCCU-05CN1
MCCU-07CN1
MCCU-10CN1
