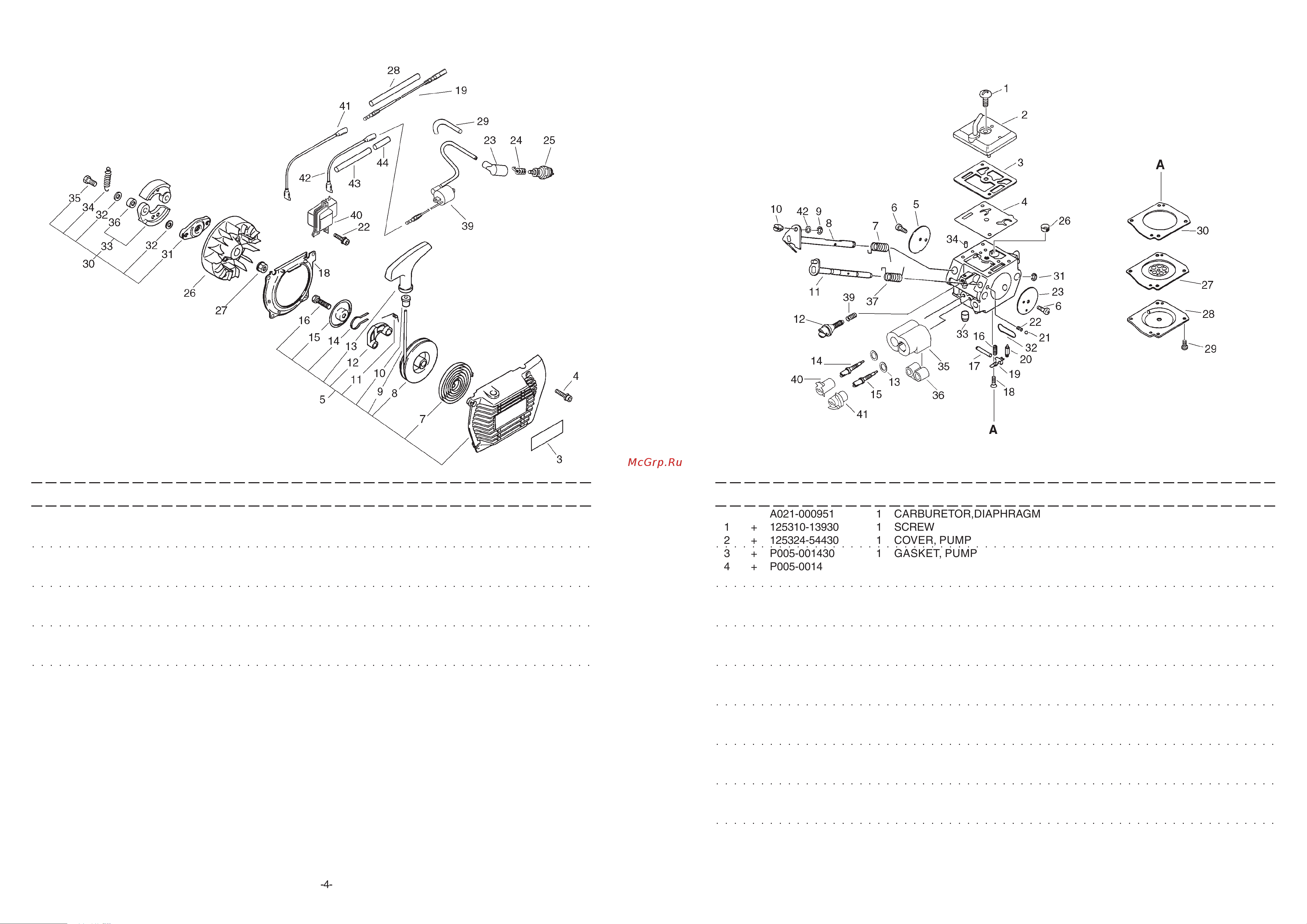

ECHO INCORPORATED ECHO CLS-5800 (деталировка) [4/9] Cls 5800 2 starter magneto clutch cls 5810
![ECHO INCORPORATED ECHO CLS-5800 (деталировка) [4/9] Cls 5800 2 starter magneto clutch cls 5810](/views2/2002326/page4/bg4.png)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
CLS-5800 2 Starter, Magneto, Clutch
CLS-5810
31 + 175016-54430 1 HUB, CLUTCH
32 + 175014-11231 4 WASHER, CLUTCH
33 + 175009-54430 2 SHOE, CLUTCH
36 ++ 175030-54430 2 METAL
34 + 175018-54430 1 SPRING, CLUTCH
35 + 175046-54430 2 SHAFT, CLUTCH
39 A411-000191 1 COIL,IGNITION
40 A410-000000 1 COIL,EXCITER
41 162010-04561 1 LEAD,GROUND
42 V485-000510 1 LEAD
43 V475-003570 1 TUBE
44 178016-47430 1 TUBE
○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
-4-
A021-000951 1 CARBURETOR,DIAPHRAGM
1 + 125310-13930 1 SCREW
2 + 125324-54430 1 COVER, PUMP
3 + P005-001430 1 GASKET, PUMP
4 + P005-001420 1 DIAPHRAGM, PUMP
5 + 125316-54430 1 VALVE, THROTTLE
6 + 125314-51230 2 SCREW
7 + 125313-54430 1 SPRING, THRT. RETURN
8 + P005-001610 1 SHAFT ASY,THROTTLE
9 + 125327-13930 1 CLIP
10 + P005-001860 1 SWIVEL
11 + P005-001490 1 SHAFT, CHOKE
12 + P005-001480 1 SCREW,THROTTLEADJUST
13 + 125353-20560 2 WASHER
14 + P005-001460 1 SCREW, IDLE MIXTURE
15 + P005-001450 1 SCREW,MAINN MIXTURE
16 + 125322-11520 1 SPRING, COIL
17 + 125338-13930 1 PIN, METERING ARM
18 + 125339-13930 1 SCREW
19 + 125323-08260 1 ARM, VALVE
20 + 125337-08260 1 VALVE, INLET NEEDLE
21 + 125336-33330 1 BALL, STEEL
22 + 125335-33330 1 SPRINGT, FRICTION
23 + 125332-33330 1 VALVE, CHOKE
CLS-5800 8 Carburettor
CLS-5810
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
-13-
○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
