ECHO INCORPORATED ECHO CLS-5800 (деталировка) [8/9] Cls 5800 5 pipe harness cls 5810
![ECHO INCORPORATED ECHO CLS-5800 (деталировка) [8/9] Cls 5800 5 pipe harness cls 5810](/views2/2002326/page8/bg8.png)
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKSKEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
-9-
2 C463-000000 1 KNOB,LATCH
3 V452-000060 1 SUPRING,TORSION
5 P021-002612 1 GRIP ASY, F-HANDLE
6 + 900253-04016 3 SCREW 4*16
7 + 900220-05030 1 SCREW 5*30
8 + 900500-00005 1 NUT 5
9 C460-000011 1 LOCKOUT,THROTTLE
10 V452-000130 1 SPRING, TORSION
11 C450-000022 1 TRIGGER,THROTTLE
12 163401-54530 1 SWITCH, IGNITION
14 V430-000910 1 CABLE,BOWDEN
15 178127-54530 1 TUBE 7*10*130
16 351302-47530 1 BRACKET, HANDLE
17 + 900162-05025 4 BOLT, H.S. 5*25
18 351210-47530 1 HANDLE, REAR
19 351301-47533 1 BRACKET, HANDLE
20 + 900162-05035 6 BOLT, H.S. 5*35
21 + 900162-05014 2 BOLT, H.S. 5*14
22 100905-51530 2 CUSHION
24 351213-47531 1 GRIP
25 V475-002930 1 TUBE
26 V495-000000 2 BAND
CLS-5800 6 Handle
CLS-5810
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

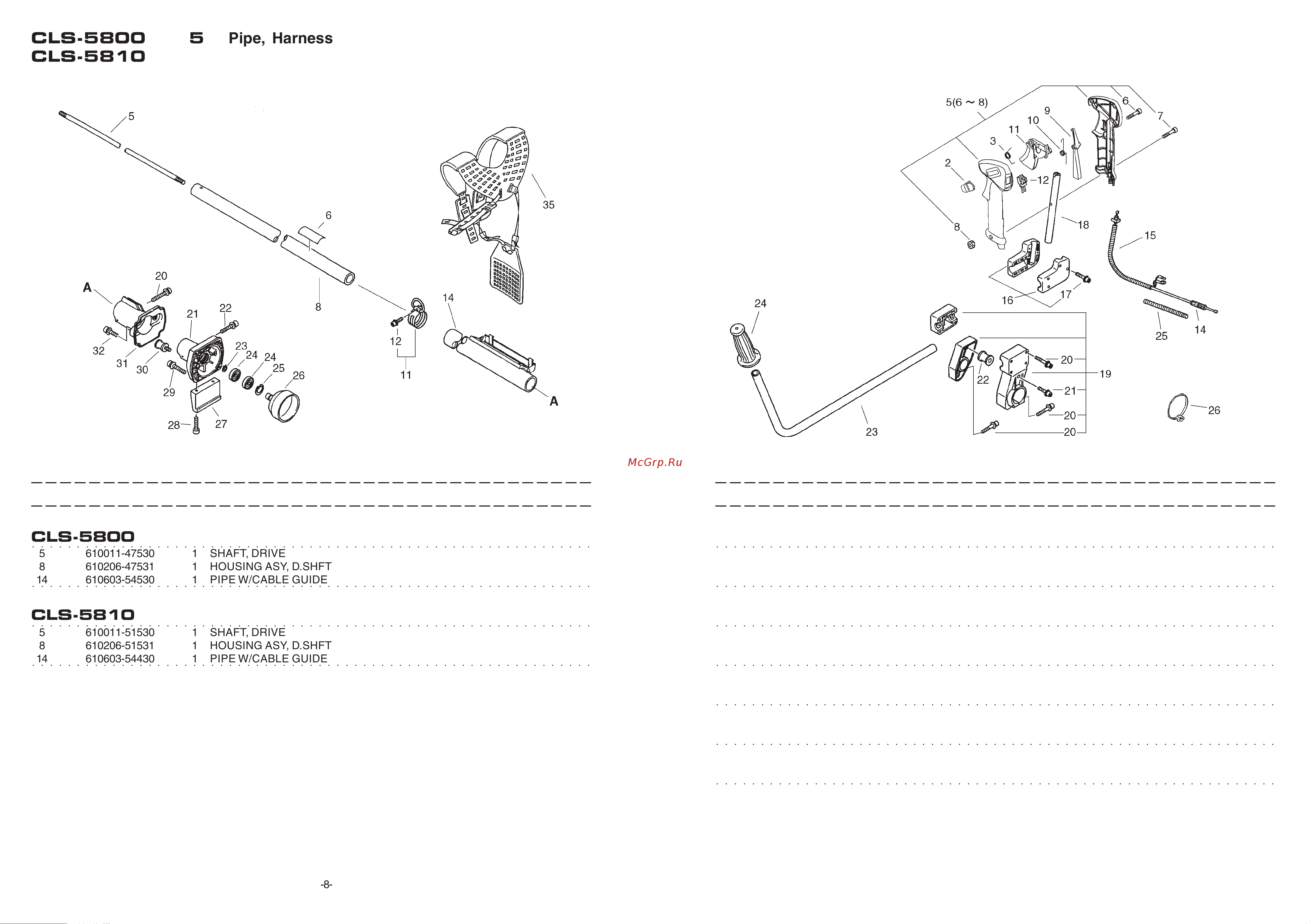

CLS-5800 5 Pipe, Harness
CLS-5810
5 610011-47530 1 SHAFT, DRIVE
8 610206-47531 1 HOUSING ASY, D.SHFT
14 610603-54530 1 PIPE W/CABLE GUIDE
5 610011-51530 1 SHAFT, DRIVE
8 610206-51531 1 HOUSING ASY, D.SHFT
14 610603-54430 1 PIPE W/CABLE GUIDE
○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
-8-
CLS-5800
CLS-5810
○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○ ○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
