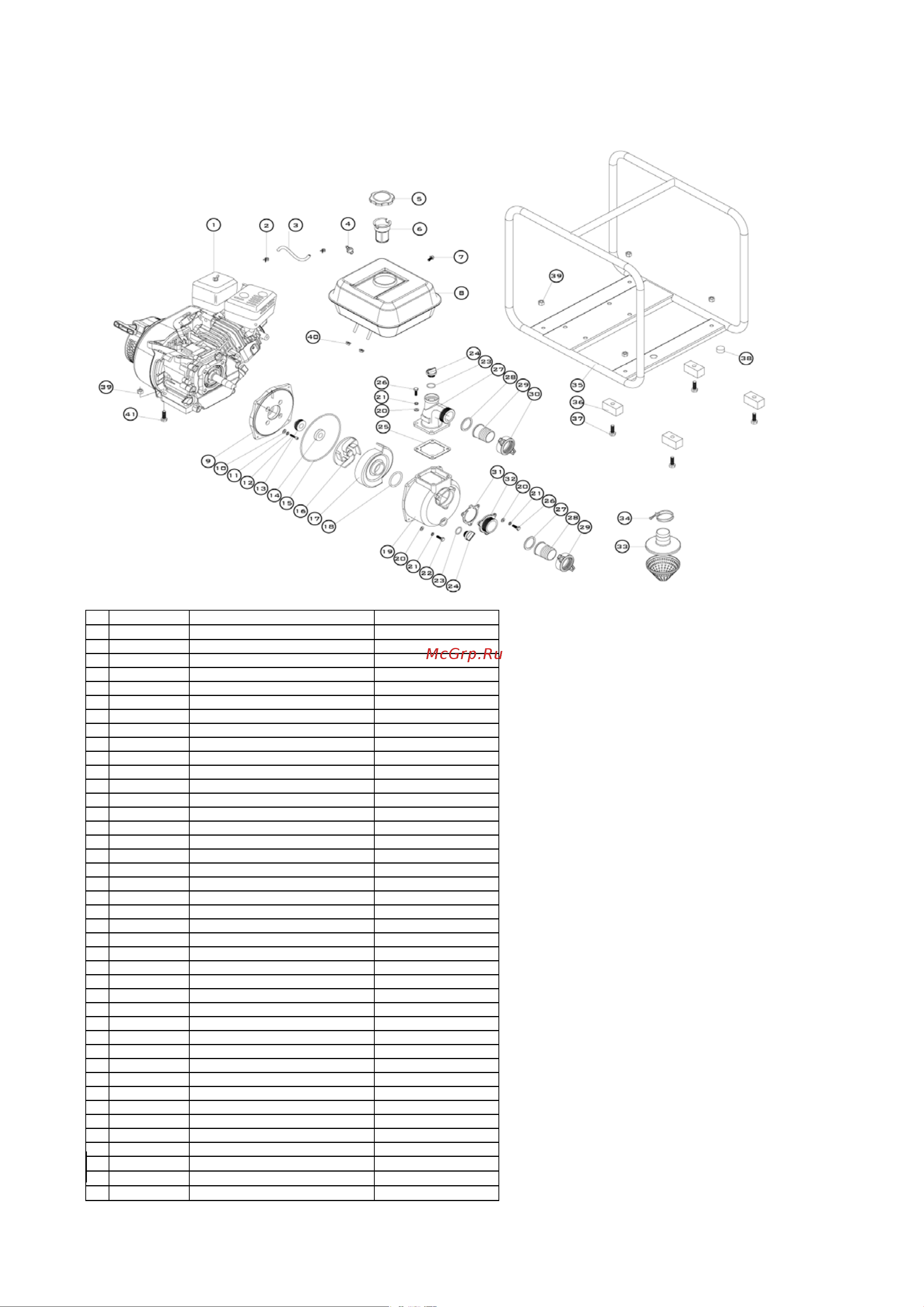

GP80
GP80
NO. CODE DESCRIPTION QTY.
1 2EP21011
UP170 gasoline engine
1
2
3A2006001
Pipe clamp
2
3 3B0111007
Fuel pipe
1
4
3A2006400
Connector
1
5
3A2006100
Fuel tank cup
1
6
3A2006007
Filter cup
1
7
3S22060251
flange bolt M6X25
1
8
3A2006009
Fuel tank
1
9
3G3080001
Pump cover
1
10
3S35081
washerφ8
4
11
3G4050004
rubber washer
4
12
3S24080603
Inner hex bolt M8x60
4
13
3G3080002
A
Mechanical seal
1
14
3G3080006
porcelain seal
1
15
3G3080003
O ring
1
16
3G3080007
water pump impeller
1
17
3G3080008
volute casing
1
18
3G3080009
rubber bushing
1
19
3G3080010
housing of pump
1
20
3S35101
washer φ10
11
21
3S31102
spring washer φ10
11
22
3S22100301
flange bolt M10X30
4
23
3G3040013
A
O ring
2
24
3G3080013
plug packing
2
25
3G3080014
A
rubber washer
1
26
3S22100251
flange bolt M10X25
7
27
3G3080015
outlet flange
1
28
3G3080020
rubber washer
2
29
3G3080021
pipe joint
2
30
3G3050022
joint grip
2
31
3G3080011
check valve
1
32
3G3080012
A
inlet flange
1
33
3G3080024
filter net
1
34
3G3080023
Rear housing
3
35
3JPG8000
frame
1
36
3G20011
shock absorber
4
37
3S210802051
flange bolt M8X25
4
38
3C13008
shock absorber
1
39 3S12081
flange nut M8
8
40 3S12061
flange nut M6
2
41 3S22080351
flange bolt M8X35
4
第1页 共1页
