![ECHO INCORPORATED ECHO CS-600 (деталировка) [13/16] Cs 600 7 carburettor](/img/pdf.png)

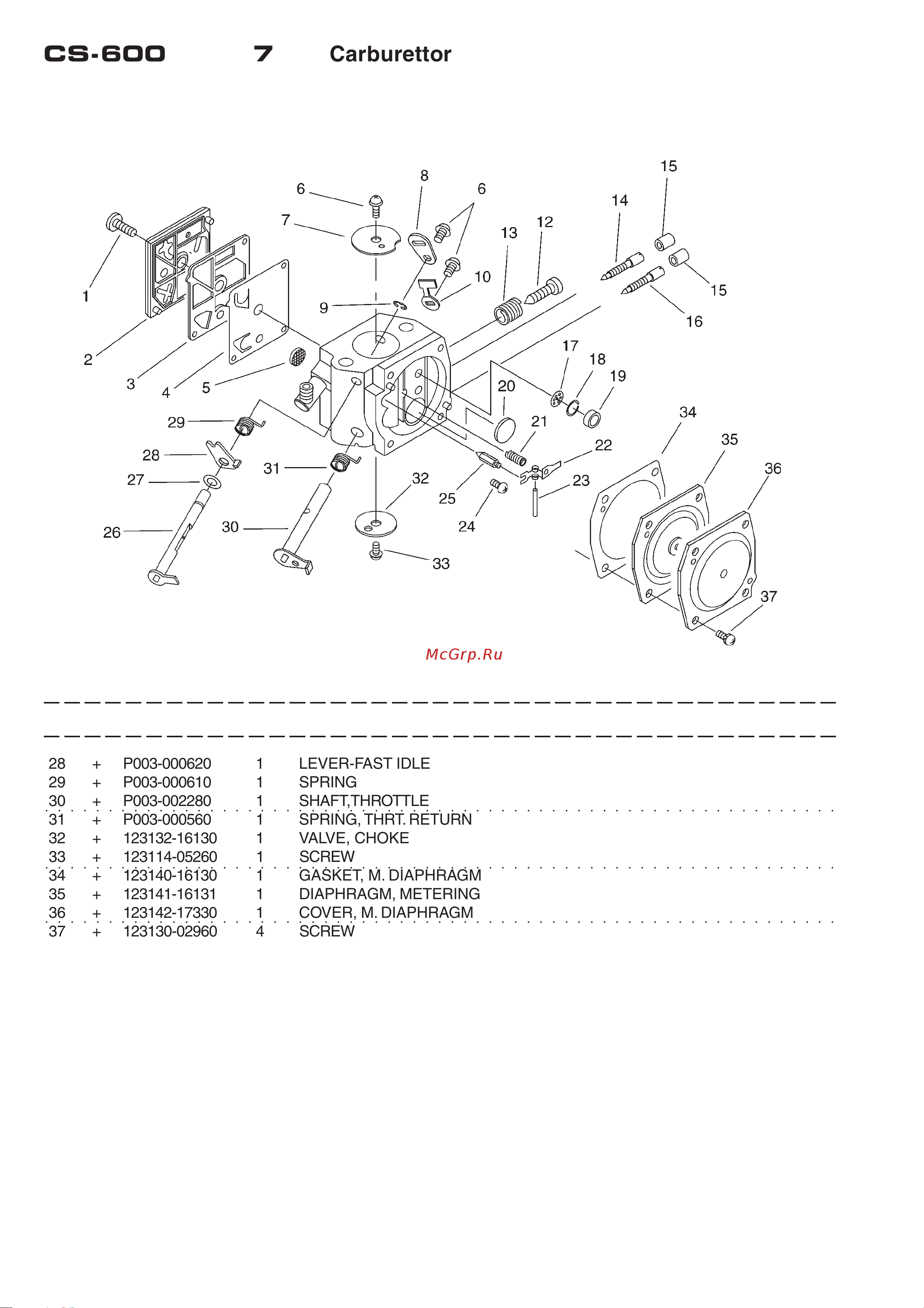

ECHO INCORPORATED ECHO CS-600 (деталировка) [13/16] Cs 600 7 carburettor
![ECHO INCORPORATED ECHO CS-600 (деталировка) [13/16] Cs 600 7 carburettor](/views2/2002399/page13/bgd.png)
- 12 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
28 + P003-000620 1 LEVER-FAST IDLE
29 + P003-000610 1 SPRING
30 + P003-002280 1 SHAFT,THROTTLE
31 + P003-000560 1 SPRING, THRT. RETURN
32 + 123132-16130 1 VALVE, CHOKE
33 + 123114-05260 1 SCREW
34 + 123140-16130 1 GASKET, M. DIAPHRAGM
35 + 123141-16131 1 DIAPHRAGM, METERING
36 + 123142-17330 1 COVER, M. DIAPHRAGM
37 + 123130-02960 4 SCREW
CS-600 7 Carburettor
Содержание
- A014 000040 1 release asy comp 2 v805 000220 4 bolt torx 5 3 a130 000910 1 cylinder 4 a202 000080 1 bellows intake 5 a206 000010 1 holder bellows 6 v805 000000 2 bolt torx 5 7 v100 000270 1 gasket cyl 8 p021 015190 1 piston kit 9 a101 000210 1 ring piston 10 v580 000030 2 ring end 11 v609 000010 1 pin eng 11 12 v556 000000 1 bearing needle 11 13 v308 000040 2 washer circular 11 14 100142 30830 1 key woodruff 15 p021 015130 1 crank case set 16 v508 000010 2 seal oil 15 17 100215 02830 2 pin dowel 18 v592 000000 2 bearing ball 19 v102 000060 1 gasket crankcase 20 v805 000010 2 bolt torx 5 21 v805 000020 4 bolt torx 5 22 v420 001790 2 cushion 23 a239 000060 1 pipe intake 24 a011 000540 1 crankshaft asy 2
- Cs 600 1 cylinder crankcase piston 2
- Key lv part number q ty description remarks 2
- Cs 600 1 cylinder crankcase piston 3
- Key lv part number q ty description remarks 3
- V360 000060 1 collar 18 26 v805 000000 1 bolt torx 5 27 e106 000020 1 guide air 28 p021 016030 1 cap oil 29 131051 19830 1 link 30 900246 03008 1 screw 3 8 31 131050 19830 1 retainer link 32 900720 00028 1 o ring 28 33 437239 14730 1 nipple 34 436114 13930 1 valve check 35 v805 000170 1 bolt torx 5 36 v141 000090 1 grommet plug 37 132115 01461 1 grommet 3
- Cs 600 2 air cleaner carburetor muffler 4
- Key lv part number q ty description remarks 4
- V804 000030 5 bolt torx 4 2 a301 000030 1 plate muffler 3 a313 001050 1 guide exhaust 4 a313 001040 1 guide exhaust 5 a310 000100 1 screen arrestor 6 a300 000770 1 muffler exhaust 7 v104 000910 1 gasket exhaust 8 a021 001660 1 carburetor diaphragm 9 p021 016020 1 case cleaner 20 a219 000000 1 shutter air 10 v805 000030 2 bolt torx 5 11 a226 000450 1 element air filter 12 a244 000080 1 plate prevent 13 a226 000440 1 element air filter 14 a232 000470 1 lid cleaner 15 a235 000190 1 knob cleaner lid 16 a160 001080 1 cover cylinder 17 a239 000070 1 pipe intake 18 v341 000140 1 washer square 19 v805 000000 3 bolt torx 5 21 v805 000210 2 bolt torx 5 22 890157 39130 1 label switch 23 890631 38130 1 label caution 24 890345 39230 1 label caution 26 x503 009510 1 label model 27 v855 000000 2 bolt torx 5 4
- A427 000013 1 cap spark plug 2 a426 000010 1 terminal sparkplug 3 a429 000040 1 cover cap 4 a425 000000 1 sparkplug 5 v475 004260 1 tube 6 v135 000040 1 grommet ht cord 7 v485 001090 1 lead 8 a411 000450 1 coil ignition 9 v805 000000 2 bolt torx 5 10 a409 000360 1 rotor magneto 11 900515 00008 1 nut flange 8 12 177234 35430 2 spring return 13 177247 04630 2 spacer ratchet 14 177218 19830 2 pawl starter 15 900603 00005 2 washer 5 16 v835 000000 2 bolt torx 5 17 a172 000840 1 cover fan 18 p021 015160 1 starter asy 19 v805 000130 1 bolt torx 5 20 177214 02830 1 washer 21 a506 000110 1 reel rope 22 177226 07060 1 rope starter 23 a503 000030 1 plate starter 24 177220 35430 1 spring rewind 5
- Cs 600 3 starter magneto 5
- Key lv part number q ty description remarks 5
- A511 000070 1 grip starter 26 900296 03016 1 screw 3 16 27 a510 000090 1 guide rope 28 x502 000460 1 label echo 29 v805 000000 4 bolt torx 5 6
- Cs 600 3 starter magneto 6
- Key lv part number q ty description remarks 6
- C400 000550 1 handle front 2 v806 000000 1 bolt torx 6 3 v805 000010 4 bolt torx 5 4 v456 000080 2 holder spring 5 v805 000000 1 bolt torx 5 6 v450 000730 1 spring compression 7 v805 000000 2 bolt torx 5 9 c617 000360 1 stopper 10 v471 000600 1 pipe 11 132013 09820 1 clip 12 131205 19831 1 strainer fuel 13 130110 30830 1 pipe impulse 14 132115 01461 2 grommet 15 v131 000020 1 grommet needle 18 v186 000080 1 joint pipe 19 130110 14530 1 pipe impulse 20 c454 000170 1 rod throttle 21 178090 37930 1 lockout t control 22 c450 000360 1 control throttle 23 v452 000260 1 spring torsion 24 900345 40025 1 pin spring 4 25sus 25 c411 000001 1 lid handle 26 v130 000030 1 grommet choke 27 a241 000170 1 knob choke 7
- Cs 600 4 handle 7
- Key lv part number q ty description remarks 7
- C410 000460 1 handle rear 29 a440 001190 1 switch on off 30 v485 001100 1 lead 31 150114 04920 1 bushing 32 p021 016040 1 cap fuer assy 33 131051 19830 1 link 34 900246 03008 1 screw 3 8 35 131050 19830 1 retainer link 36 900720 20029 1 o ring 29 37 v805 000010 2 bolt torx 5 38 v456 000090 1 holder spring 39 v450 000760 1 spring compression 40 v805 000230 1 bolt torx 5 41 a359 000000 1 cover vent 42 131300 56430 1 valve check 43 v450 000770 1 spring compression 44 v456 000100 1 holder spring 45 v806 000000 1 bolt torx 6 46 v804 000000 1 bolt torx 4 8
- Cs 600 4 handle 8
- Key lv part number q ty description remarks 8
- C320 000180 1 lever brake 2 v805 000000 5 bolt torx 5 3 v356 000440 2 collar 10 4 c345 000280 1 cover brake 5 c334 000110 1 connector brake 6 433116 35430 1 spacer 8 7 v452 000400 1 spring torsion 8 v376 000450 1 spacer 9 c328 000120 1 band brake 10 93050 30080 1 roller 11 v450 000740 1 spring compression 12 v583 000130 1 ring 13 v307 000180 1 washer circular 10 14 175033 14731 1 sprocket rim 68210s 15 a556 000550 1 drum clutch 16 100113 04630 1 bearing needle 17 a056 000220 1 clutch asy 18 a552 000110 1 hub clutch 19 a555 000070 3 shoe clutch 20 v451 000500 3 spring tension 21 a551 000110 1 plate clutch 22 v358 000090 1 collar 14 23 900701 00015 1 circlip 15 24 437210 30830 1 pipe oil 9
- Cs 600 5 clutch sprocket 9
- Key lv part number q ty description remarks 9
- 132013 09820 2 clip 26 v470 000830 1 pipe 27 c022 000050 1 auto oiler assembly 28 v804 000000 2 bolt torx 4 29 v652 000050 1 gear worm 30 c305 000110 1 plate sprocket guard 31 v203 000110 1 bolt 5 32 c309 000070 1 tensioner chain 33 v651 000001 1 gear bevel 34 v651 000011 1 gear bevel 35 v355 000270 1 collar 8 36 900241 03006 1 screw 3 6 37 c305 000100 1 plate sprocket guard 38 c300 000410 1 guard sprocket 41 v265 000110 2 nut 8 42 x502 000340 1 label echo 43 c302 000010 1 pad guard 44 436205 14730 1 strainer oil 45 v341 000130 1 washer square 46 c603 000220 1 plate side 47 v804 000000 1 bolt torx 4 48 v311 000090 1 washer circular 16 1 10
- Cs 600 5 clutch sprocket 10
- Key lv part number q ty description remarks 10
- Cs 600 6 tools 11
- Key lv part number q ty description remarks 11
- V805 000000 2 bolt torx 5 2 c304 000040 1 spiked 3 c310 000010 1 catcher chain 4 v205 000400 2 bolt 8 5 898510 07130 1 bag tool 6 x602 000080 1 tool wrench 7 895812 03930 1 driver screw 50 8 898548 14531 1 scabbard chain 9 x605 000050 1 tool l wrench 11
- A021 001660 1 carburetor diaphragm 1 123110 16130 1 screw pump cover 2 123124 19830 1 cover fuel pump 3 123125 12330 1 gasket fuel pump 4 123112 12330 1 diaphragm fuel pump 5 123126 10631 1 screen inlet 6 123114 38830 3 screw 7 123116 16130 1 valve throttle 8 p003 002300 1 lever choke 9 123127 15030 1 ring 10 123156 30830 1 stop throttle 12 123134 04260 1 screw idle adjust 13 123133 04260 1 spring idle adjust 14 123120 32631 1 needle high speed 15 p003 000010 2 limiter cap 16 123118 02261 1 needle 20 123146 10631 1 plug welch 21 123122 32630 1 spring meter lever 22 123123 18330 1 lever metering 23 123138 03930 1 pin metering lever 24 123139 03930 1 screw m lever pin 25 123137 19830 1 valve inlet needle 26 p003 002290 1 shaft choke 27 123149 26030 1 washer 12
- Cs 600 7 carburettor 12
- Key lv part number q ty description remarks 12
- Cs 600 7 carburettor 13
- Key lv part number q ty description remarks 13
- P003 000620 1 lever fast idle 29 p003 000610 1 spring 30 p003 002280 1 shaft throttle 31 p003 000560 1 spring thrt return 32 123132 16130 1 valve choke 33 123114 05260 1 screw 34 123140 16130 1 gasket m diaphragm 35 123141 16131 1 diaphragm metering 36 123142 17330 1 cover m diaphragm 37 123130 02960 4 screw 13
- Parts number key no parts number key no parts number key no 14
- Parts number key no parts number key no parts number key no 15
- 65 115 16
