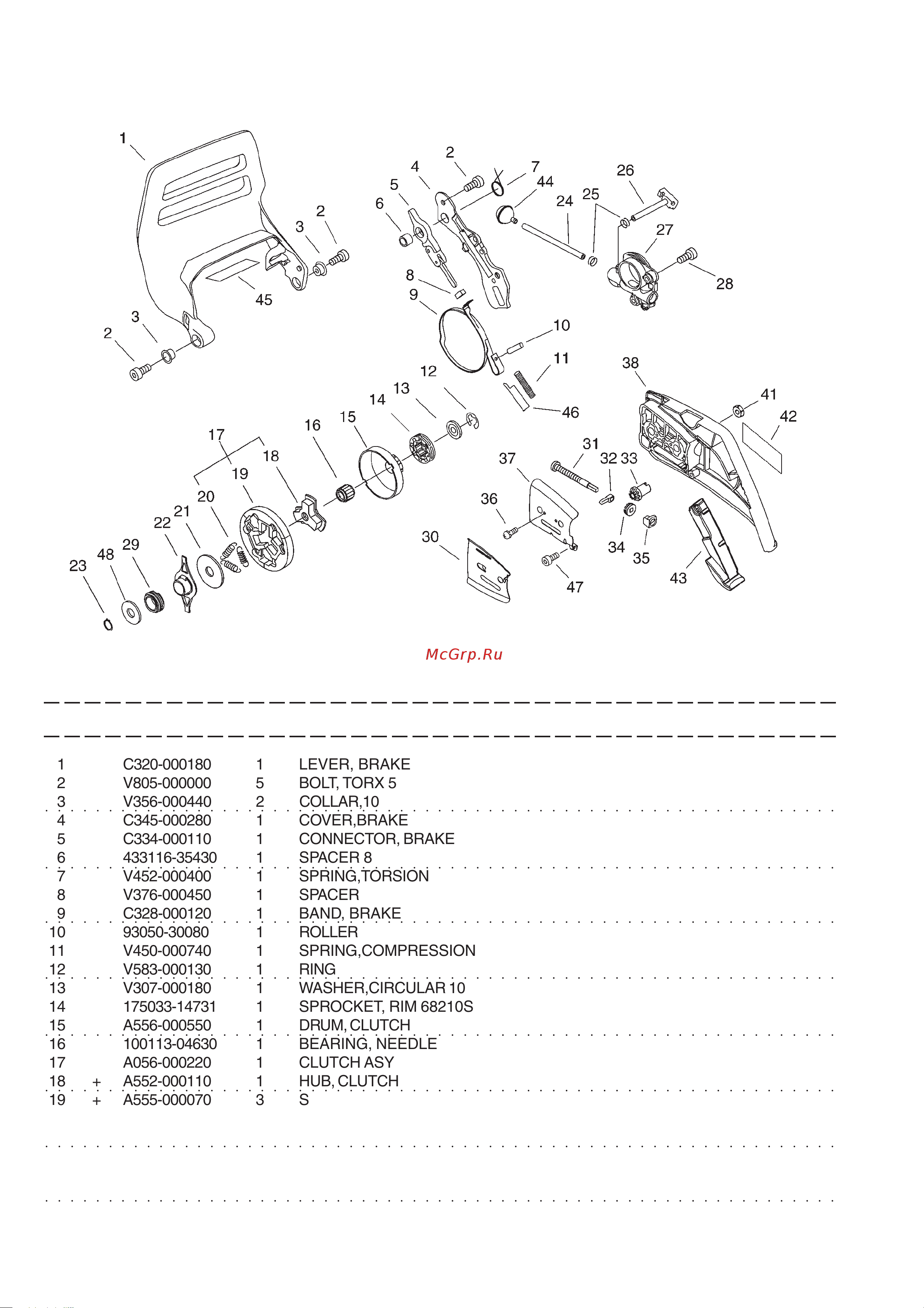

ECHO INCORPORATED ECHO CS-600 (деталировка) [9/16] Cs 600 5 clutch sprocket
![ECHO INCORPORATED ECHO CS-600 (деталировка) [9/16] Cs 600 5 clutch sprocket](/views2/2002399/page9/bg9.png)
- 8 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1 C320-000180 1 LEVER, BRAKE
2 V805-000000 5 BOLT, TORX 5
3 V356-000440 2 COLLAR,10
4 C345-000280 1 COVER,BRAKE
5 C334-000110 1 CONNECTOR, BRAKE
6 433116-35430 1 SPACER 8
7 V452-000400 1 SPRING,TORSION
8 V376-000450 1 SPACER
9 C328-000120 1 BAND, BRAKE
10 93050-30080 1 ROLLER
11 V450-000740 1 SPRING,COMPRESSION
12 V583-000130 1 RING
13 V307-000180 1 WASHER,CIRCULAR 10
14 175033-14731 1 SPROCKET, RIM 68210S
15 A556-000550 1 DRUM, CLUTCH
16 100113-04630 1 BEARING, NEEDLE
17 A056-000220 1 CLUTCH ASY
18 + A552-000110 1 HUB, CLUTCH
19 + A555-000070 3 SHOE,CLUTCH
20 + V451-000500 3 SPRING,TENSION
21 A551-000110 1 PLATE, CLUTCH
22 V358-000090 1 COLLAR,14
23 900701-00015 1 CIRCLIP 15
24 437210-30830 1 PIPE, OIL
CS-600 5 Clutch, Sprocket
