Husqvarna 136 (2003) parts [6/6] Carb repair kit
Макгруп McGrp.ru
Задайте вопрос
Зарегистрироваться

Husqvarna 136 (2003) parts [6/6] Carb repair kit

Husqvarna 136 (2003) parts [6/6] Carb repair kit
1. 530 03 52-96 Idle Adv. Screw Kit
2. 530 03 50-31 Metering Lever
3. 530 03 51-64 Fuel Pump Gasket
4. 530 03 51-66 Fuel Pump Diaphragm
5. 507 43 25-82 Fuel Inlet Screen
6. 530 03 52-93 Needle Spring (Low Speed)
7. 530 03 52-81 Low Speed Needle
8. 530 03 72-59 High Speed Needle
9. 530 03 52-95 Needle Spring (High Speed)
10. 530 03 51-62 Welch Plug (5/16)
11. 530 03 52-25 Cup Plug
12. 530 03 51-65 Metering Diaphragm Gasket
13. 530 03 50-14 Metering Diaphragm
14. 530 03 50-28 Metering Lever Pin
15. 530 03 50-16 Metering Lever Pin Screw
16. 530 03 51-06 Inlet Needle Valve
17. 530 03 84-79 Limiter Cap High
18. 530 03 84-78 Limiter Cap Low
19. -- Carburetor Repair Kit (Incl. 3--5 & 10--18)
530 06 98-26 Walbro
530 03 52-69 Zama
20. 530 03 51-88 Metering Lever Spring
21. -- Gasket/Diaphragm Kit (Incl. 3, 4, 12 & 13)
530 06 98-44 Walbro
530 03 52-70 Zama
22. 530 03 50-21 Metering Cover Screw Assíy
530 03 11-57 Limiter Cap Removal Tool
530 03 11-61 Limiter Cap InsertionTool
LLLLLL If replacing t he complete Zama
Ca rburetor, it is not serviceable;
you will need to order # 530069629
Walb ro C arburetor Assí y.
Description
Part No. Ref. Part No. DescriptionRef.
Carb.
Repair
Kit
Gasket/
Diaph.
Kit
1
3
4
5
6
7
8
9
10
11
12
14
15
16
2
17
18
19 21
20
22
Not Shown
13

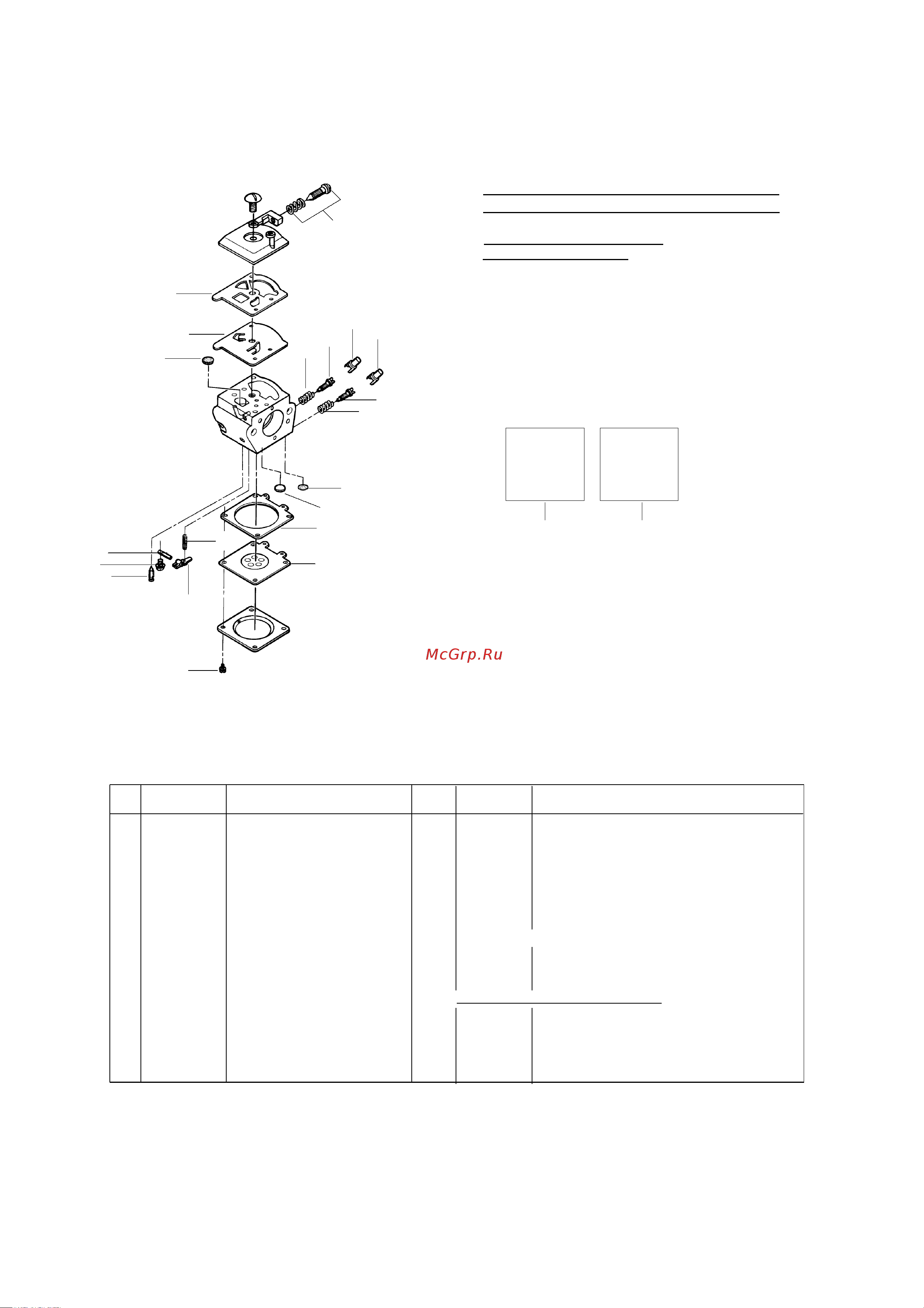

Zama Carb ure tor Se rvi c e Re fe re nce
Carburetor Assembly # 530 06 96-29 (WT-289)
Carburetor CIQ--W6 Zama --
See Service Reference
= NEW PART NUMBER FOR THIS IPLn
=
REFER TO THE SERVICE REFERENCE INDICATED FOR MORE INFORMATION. (LOCATED AT END OF IPL)
D
K
=
THESE PARTS ARE ILLUSTRATED FOR CLARITY. ORDER COMPLETE ASSEMBLY.
Carburetor Assembly # 530 03 54-82 (WT-542)
